Theory Audio Design ic5 In-Ceiling Loudspeaker

Name: Theory Audio Design ic5 In-Ceiling Loudspeaker
SKU: 70050
Availability: InStock

Condition: New

Get a Quote

Payment options

Buy now, pay later, or apply for interest-free finance with Humm.

SKU: 70050 Categories: In-Ceiling, Theory Audio Design Tags: no-cart, Theory

Description
Why Buy From Us?

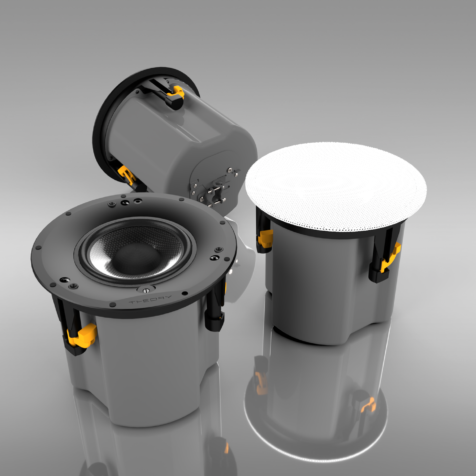

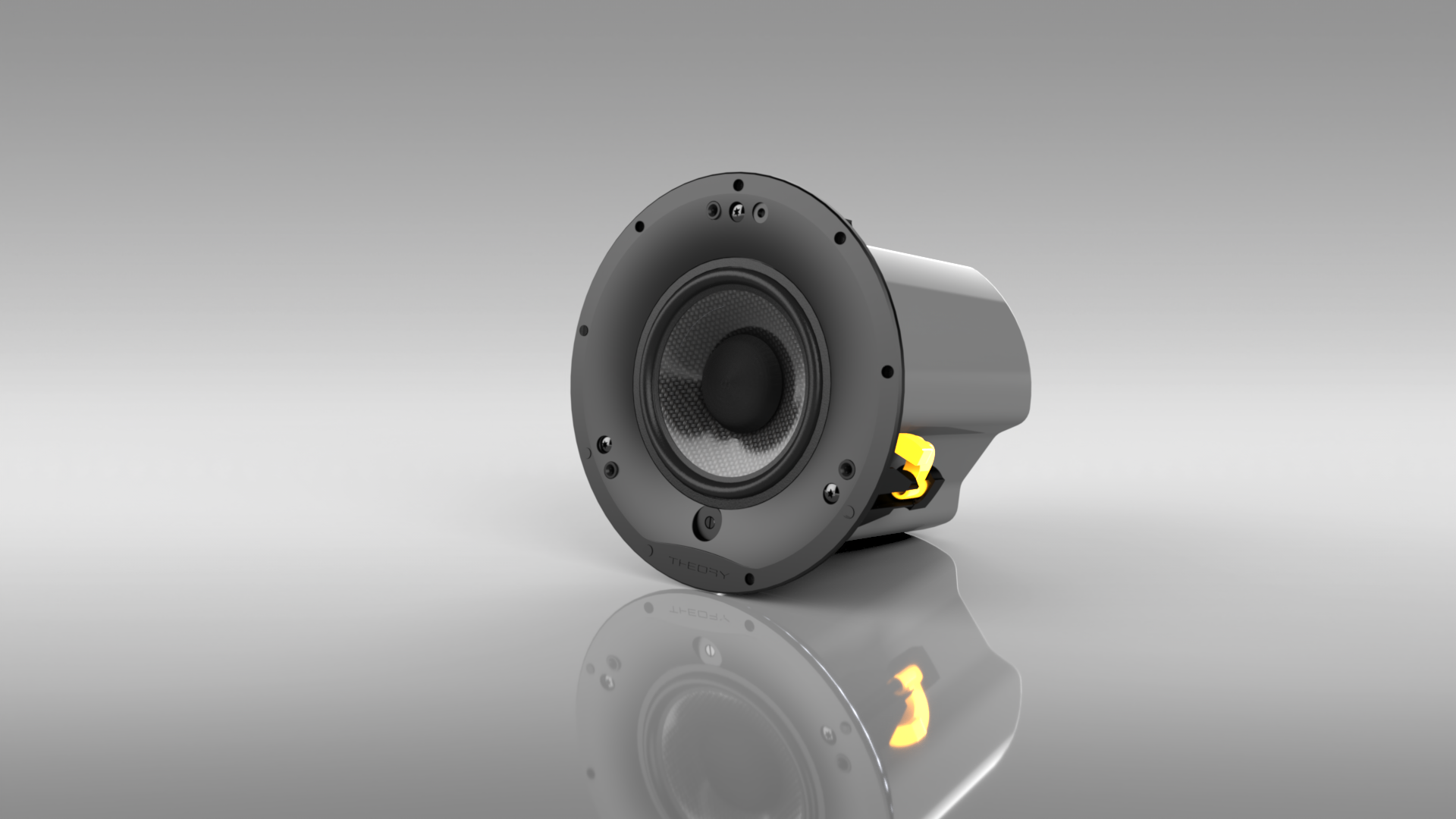

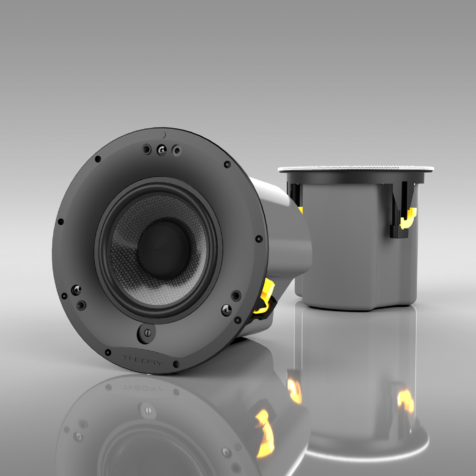

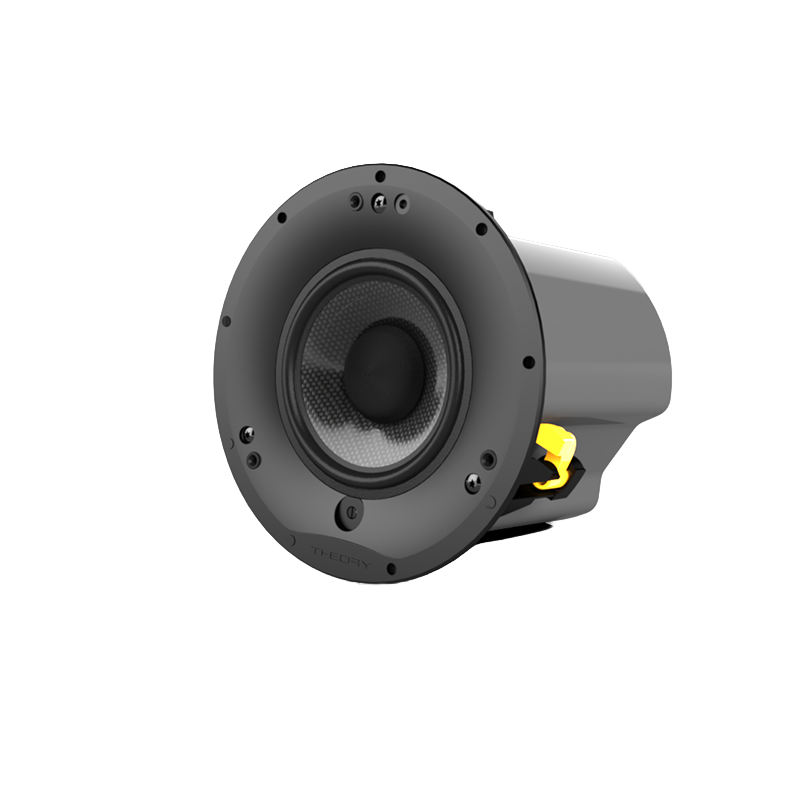

ic5 In-Ceiling Loudspeaker

The ic5 in-ceiling loudspeaker is the uber-capable ic6’s smaller brother, offering the same dynamic full-range sound while sacrificing only the last few dB of output. The ic5’s included compact square and round, frameless perforated grilles disappear into any commercial, retail, corporate or professional environment. 16-ohm and 70V/100V operation.

LISTEN IN THE WINDOW.

The ic5 Frequency Response is remarkably flat and extended, insuring the highest accuracy and highest-resolution available. Even at very low levels, the sound is crystal clear, open and delicate.

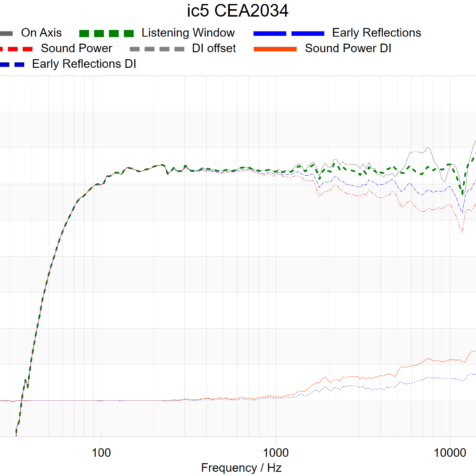

GREAT ROOM.

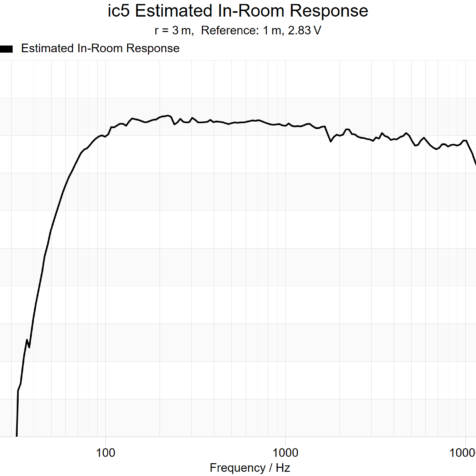

Even the reflected sound from an ic5 loudspeaker is accurate and extended. The ic5 will fill your room with coherent, accurate sound everywhere. Shown is the CEA2034 for Half Space Estimated In-Room response which predicts the measured response in a typical reflective room.

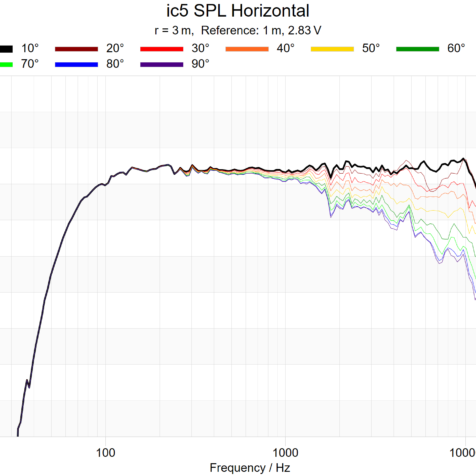

SOUNDS GOOD EVERYWHERE. EVEN AT THE CEILING.

Even at 90° off-axis – literally at the surface of the ceiling – the response of the ic5 is smooth, with gradual, controlled HF roll off. So should you be up there painting the ceiling, you’re going to enjoy the performance of the ic5.

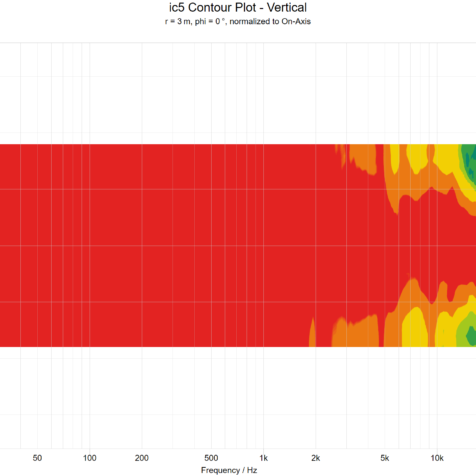

TIGHT GROUPING.

The ic5 offers wide dispersion all the way to the very top audio octave. Everyone hears wide-band, detailed sound.

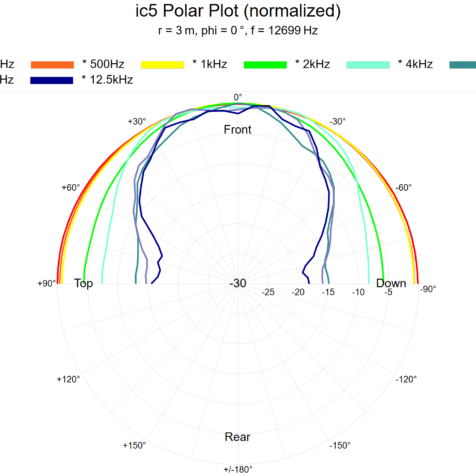

140 DEGREES OF FREEDOM.

The dispersion of the ic5 exceeds 120° at 10kHz. Even the bad tables in the dining room receive detailed, clean clear sound.

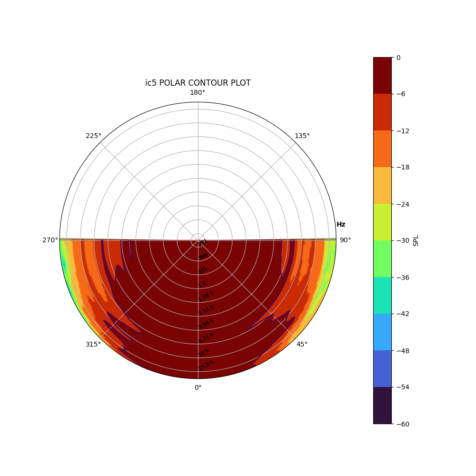

“SEE” THE SOUND.

Here is the data shown in the Directivity Contour Plot shown again on a polar map, making it easier to “see” how the sound is dispersed from the loudspeaker itself. The 0° axis represents the axis perpendicular to the speaker grille – in other words, that axis straight down when the speaker is mounted into a ceiling. The ic5 coverage is very wide and uniform, all the way to the top audio octave: >120° at -6dB! Everyone in a broad area receives full-range sound with delicate, extended treble response.

POWER GRAB.

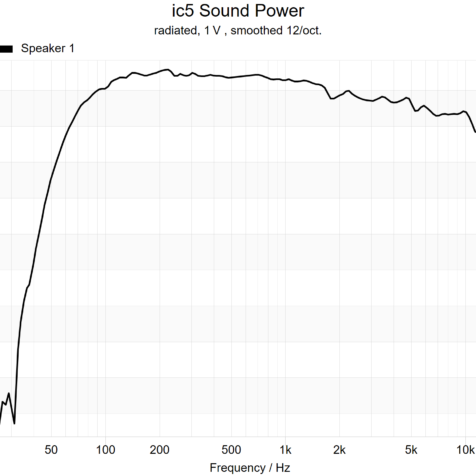

The Sound Power is the sum of the total output of a loudspeaker. The ic5 Sound Power Response is smooth and extended, indicating that the ic5 will fill a room with neutral, wide-bandwidth sound everywhere.

RESERVE YOUR SPOT.

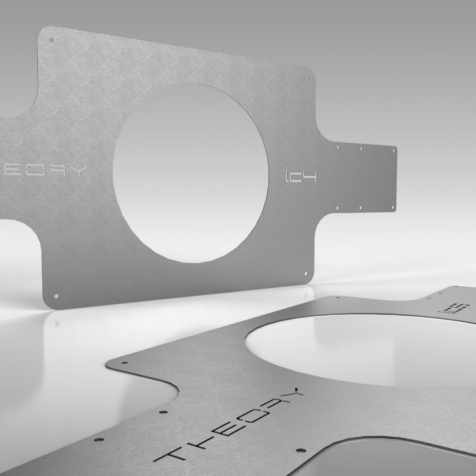

Theory in-ceiling loudspeaker pre-construction brackets allow you to easily reserve space in the ceiling during the construction phase of the project. Each bracket shows the loudspeaker model number so no errors are made prior to drywall.

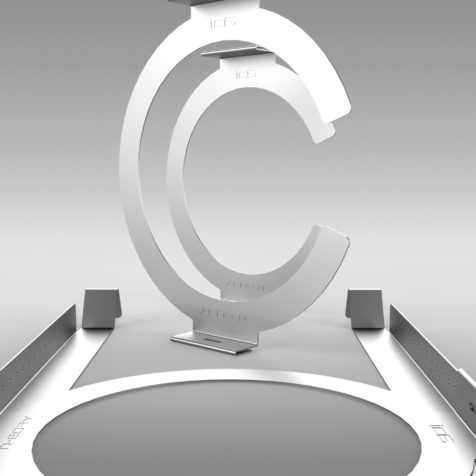

DROP CEILING? NO PROBLEM.

A 24” spacing tile bridge kit is available to make installation into drop ceilings painless and secure.

SPECIFICATIONS

Sound - Acoustics

Bandwidth: 78Hz – 23kHz, -3dB; 69Hz – 23kHz, -6dB; 65Hz – 23kHz, -10dB (Corrolates to subjective perception)
Coverage: 120 Degrees Conical (-6dB @ 10kHz)
Sensitivity**: 88dB (LF); 106dB (HF) SPL/2.83V/1m
Power Handling: 80W (AES); 160W (Continuous); 320W (Peak)
Minimum Recommended Power: 50W rms
Maximum Output: 108dB SPL / 1m (based on AES power rating); 114dB SPL / 1m (peak)
Nominal Impedance: 16-ohms; Hi-Z (70V/100V) Selectable
Transformer Taps: 30W, 15W, (7.5W, 70V)

Design

Description: 5″ High-output Weather Resistant In-Ceiling Loudspeaker System
Operation: Passive, Requires 1 Theory Loudspeaker Controller Amp Channel; 16-ohms or 70V/100V Operation, Selectable
DSP Requirements: Requires Model-Specific Theory-Certified DSP Loudspeaker Processing
Drivers: 1 x 5″ THEORY Coaxial Driver – 5” Carbon Fibre Low Frequency Driver; 1.4″ THEORY AdvancedPoly™ Compression Driver
Enclosure: Molded ABS Frame with Powder Coated Aluminium Integral Back Can
Terminals: Euroblock Connector with Parallel Output
Outdoor Capability: Indoor and Outdoor Use (when used with optional ic5 all-weather grille)
Mounting Points: 3 x Retractable Dog Ears
Colors: White Perforated Paintable Metal Grilles (Square and Round included)
Dimensions: Speaker: 211mm diameter x 200mm D; Round Grille: 213mm diameter x 4mm D; Square Grille: 213mm SQ. x 4mm D; Cutout: 193mm diameter
Total Installed Depth: 198mm
Maximum Wall Thickness: 38mm
Net Weight: 4.0kg

Accessories

Included Accessories: White Paintable Round Indoor Grille; White Paintable Square Indoor Grille; Cutout Template
Optional Accessories: Pre-construction Bracket; Ceiling Tile Bridge; White Paintable All-Weather Grille; Pendant Housing

ic5 DATA SHEET

ic5 3-VIEW PRODUCT DRAWING

ic MODEL QUICK START INSTALLATION GUIDE
