Theory Audio Design iws12-9 High Output Architectural Subwoofer

Theory Audio Design iws12-9 High Output Architectural Subwoofer

Condition: New

    Get a Quote
    Payment options
    zip humm

    Buy now, pay later, or apply for interest-free finance with Humm.

    SKU: 70057 Categories: , Tags: ,

    iws12-9 High Output Architectural Subwoofer

    The iws12-9 install subwoofer employs a high-power, 1400W, 4” voice-coil long-throw driver in a compact enclosure that is easy to place within any commercial environment. The bass it provides belies intuition, extending deeper than seems possible, with tight, tuneful expression. It’s the perfect complement to Theory Professional full range speakers to create a truly astonishing high-energy environment.

    The iws12-9 can be wall mounted, ceiling mounted, flown or simply sat on a flat surface such as the ground.

    *iws12-9 enclosure (with grille) and iws12 speaker assembly are sold separately.

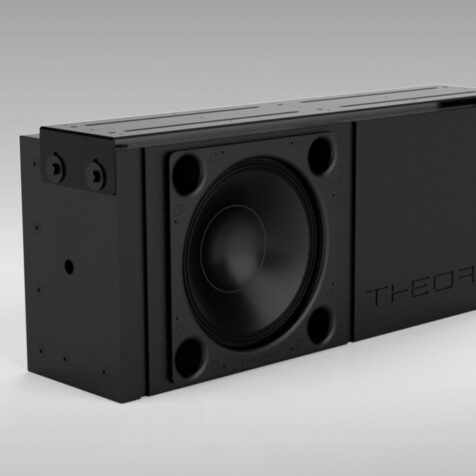

    iws12-9-front-iso-no-grille

    CAN YOU TAKE A YOKE?

    The iws12-9 ships with robust rubber isolation feet for sitting the enclosure on the ground or appropriate shelf, or the optional Yoke Bracket allows the iws12-9 subwoofer to be mounted to any appropriate surface, ceiling or wall.

    WOULD YOU LIKE THAT GRILLED?

    The iws12-9 subwoofer can be used without a grille, with optional Zero-Noise Protection Grid shown here, or with the optional Full Coverage Grille which protects not only the drive unit, but also entrances to the tuned ports.

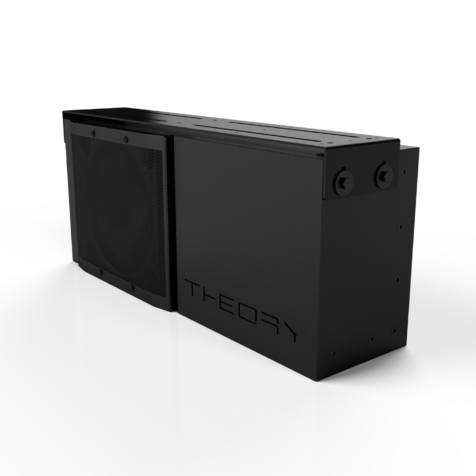

    iws12-9-gallery-with-grille

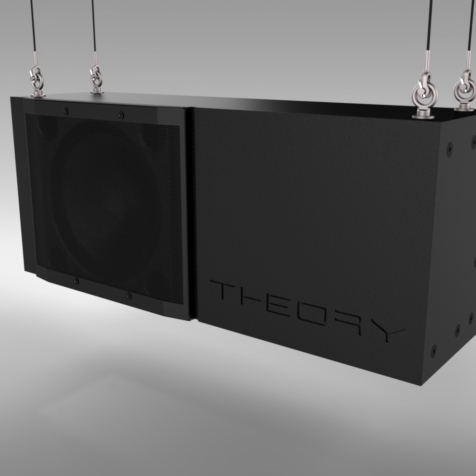

    iws12-9-ceiling-mount-2

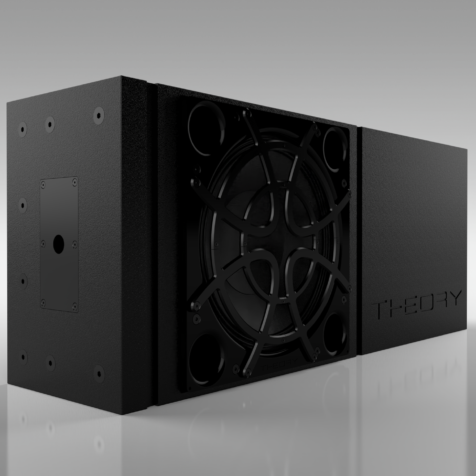

    iws12-9-grid-feature

    SPECIFICATIONS

    Sound - Acoustics

    • Bandwidth: 24Hz -125Hz, – 3dB
    • Sensitivity: 95.5 dB
    • Power Handling: 700W (AES); 1400W (Continual); 2800W (Peak)
    • Minimum recommended Power: 250W
    • Max Output: 124 dB SPL / 1m
    • Nominal Impedance: 8-ohms

    Design

    • Description: 12” High-Output Subwoofer for In-Ceiling, Surface Mount or Flying
    • Operation: Passive, Requires 1 Theory ALC Amp channel
    • DSP Requirements: Requires Model-Specific Theory-Certified DSP Loudspeaker Processing
    • Drivers: 1 x 12″ Theory 1400W 4” Voice Coil Long Throw Woofer
    • Enclosure: Multi Plywood, Metal Protection or Perforated Grille
    • Mounting Points: Yoke Surface Mount Brackets
    • Outdoor Capability: Indoor and Outdoor Use
    • Colors: Black
    • Dimensions: 34” W x 14” H x 9”D (864mm W x 356mm H x 229mm D)
    • Weight: 49 lbs. (22.2 kg)

    Accessories

    • Included Accessories: Rubber Isolation Feet; Black Full Coverage Perforated Metal Grille; M10 Rigging Eyebolts
    • Optional Accessories: Yoke Surface Mount Bracket
    iws12-9 DATA SHEET
    iws12-9 3-VIEW PRODUCT DRAWING
    iws12-9 QUICK START GUIDE
    iws12-9 YOKE 3-VIEW DRAWING
