All sound. Enjoy silence. Celebrate originality.
Beosound Shape is a modular speaker system for design conscious music lovers. Hanging like a unique piece of art, it delivers immersive sound staging and the ability to improve your room acoustics with its built-in noise dampers.
Create your own design
No two configurations are likely to be the same, and that’s the whole beauty. Yet each one will undoubtedly leave a lasting visual imprint – on every wall and every room.
Try our configuration tool to create your personal Beosound Shape design. Start by defining the pattern and look. Complete your design by choosing a performance level that matches your needs.

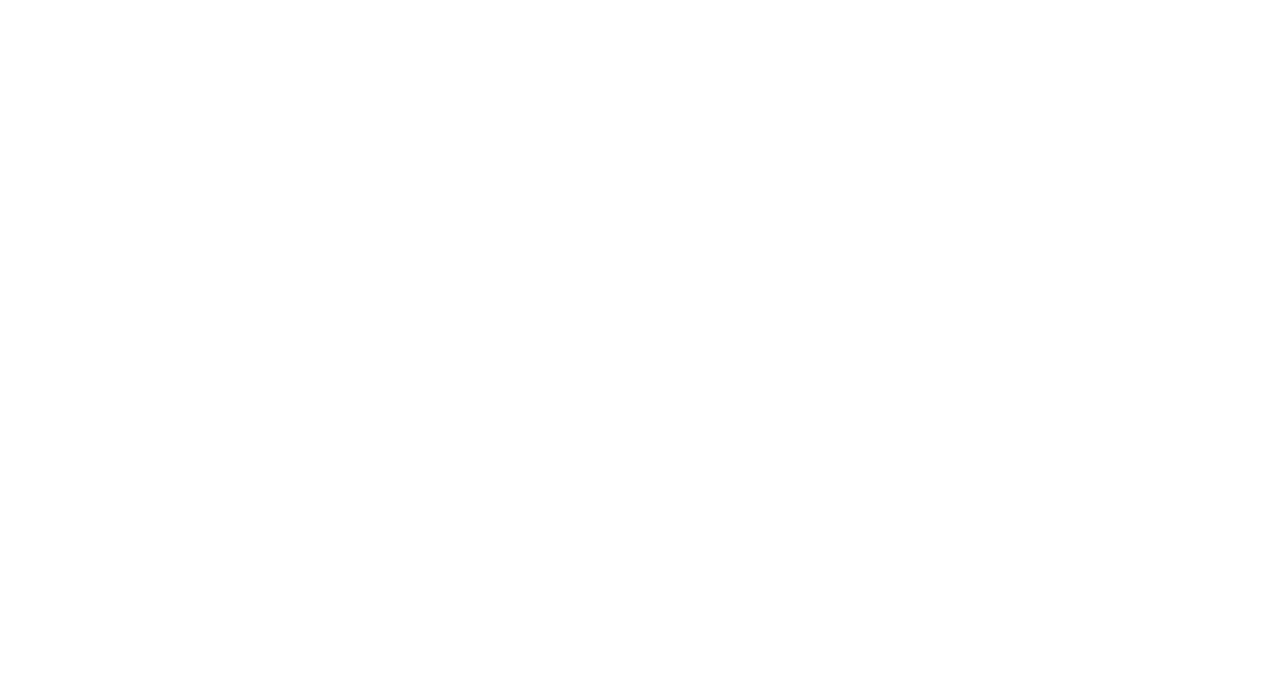

Define and redefine your perfect shape
Beosound Shape is a uniquely flexible speaker system that can grow and evolve with the changing ways you live. Rearrange the tiles to form a new pattern, change the colours when you redecorate or add more tiles to boost sound performance or acoustic damping properties.
A band on your wall
Prepare for an innovative and social music experience that brings ‘the band’ right into your room. Beosound Shape cleverly utilises a setup with multiple speakers to deliver a concert-like perception of singer and instruments. Book a demo, to feel the sensation.
Turn down the noise
Poor indoor acoustics makes even the most beautiful room unpleasant to be in. Relieve the problem by integrating acoustic damper tiles when you design your Beosound Shape.
The heart of your music
At the heart of the system lies our Beosound Core connectivity hub. A small built-in box that lets you stream music directly from your phone or tablet via Chromecast built-in, Apple AirPlay 2 and Bluetooth.
All-in-one speaker system
Beosound Shape is more than just a wireless speaker. It is a complete audio system that can boast as many as 44 individual speakers, playing your digital music in rich and high-res audio quality.
Recommended Room Size
Per Speaker Tile:
1 x ¾” tweeter
1 x 5 ¼” woofer
8 x 80 Watt class D
Maximum speakers per amplifier: 4
30 – 22.000 Hz (8 tiles set up)
Maximum Sound Pressure Level (SPL) @1m
105 dB (8 tiles set up)
89dB (SPL) (8 tiles set up)
Advanced Sound Features
Adaptive Bass Linearization
Øivind Alexander Slaatto
36.4 W x 32.0 H x 11.1 D cm (1 Tile)
Maximum Amplifier Tiles: 11
Maximum Speaker Tiles: 44
Acoustic Damper Tiles: unlimited
Speaker Tile: 1.9 kg + 0.4 kg (fabric cover)
Amplifier Tile: 2.0 kg + 0.4 kg (fabric cover)
Damper Tile :0.51 kg + 0.4 kg (fabric cover)
Dual-Band Wi-Fi (2.4 & 5 GHz)
IEEE 802.11 a/b/g/n/ac
Apple AirPlay 2
1 x Speaker 4-Wire Input
4 x Speaker 4-Wire Output
1 x Optical-In
1 x Power Link (RJ45)
1 x Comm In (Amplifier Input)
1 x Comm Out (Amplifier Output)
1 x USB-B
1 x Power
1 x USB-C (Power)
1 x USB-A (Connection to Beosound Shape)
1 x Line-in/Optical
1 x Optical Out
1 x Ethernet
1 x DPL
1 x Powerlink (RJ45)
Bang & Olufsen App
Beoremote One BT
