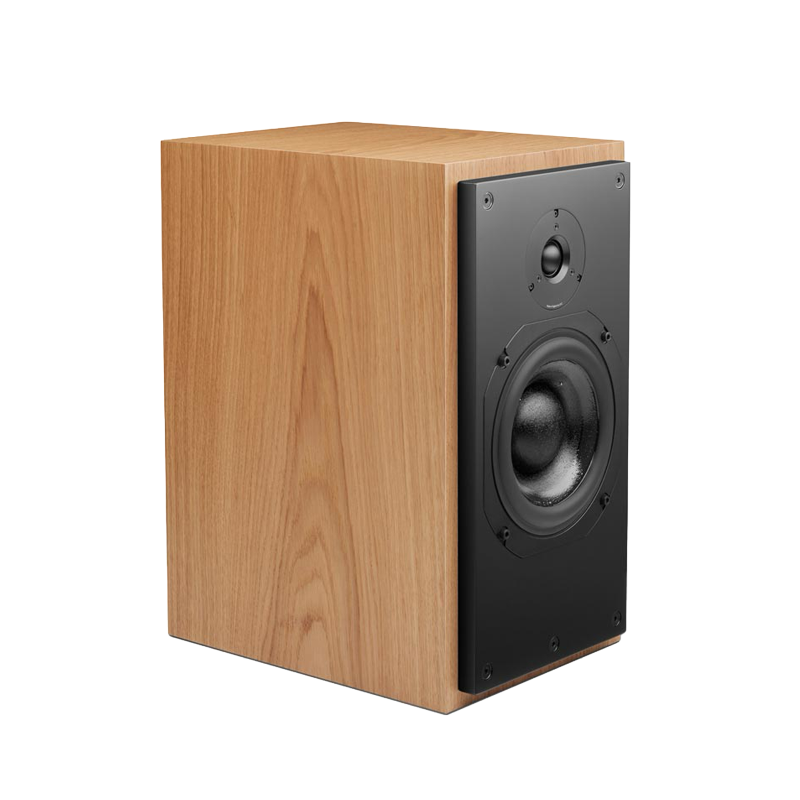

ATC SCM20PSL Passive Loudspeaker
ATC SCM20PSL Passive Loudspeaker - Image 2
ATC SCM20PSL Passive Loudspeaker - Image 3
ATC SCM20PSL Passive Loudspeaker - Image 4

ATC SCM20PSL Passive Loudspeaker

$8,995.00

Condition: New

    Payment options
    zip humm

    Buy now, pay later, or apply for interest-free finance with Humm.

    SKU: SCM20 Category: Tag:

    SCM20PSL CLASSIC
    Passive 2-way stand-mount loudspeaker

    The SCM20SL Classic is ATC’s flagship 2-way stand-mount loudspeaker. Ideal for modestly sized rooms where performance cannot be compromised.

    ATC DRIVE UNITS

    The loudspeaker is available in both PASSIVE and ACTIVE versions. Both versions employ ATC’s renowned drive units which are painstakingly designed and manufactured by ATC in the UK.

    SEALED CABINET DESIGN

    Its sealed cabinet design ensures precise timing and excellent low frequency output below the cut-off. The combination of ATC mid/bass and soft-dome tweeter delivers mid-range & high frequency of exceptional clarity and the driver component’s shared design philosophy ensures the parts work seamlessly together.

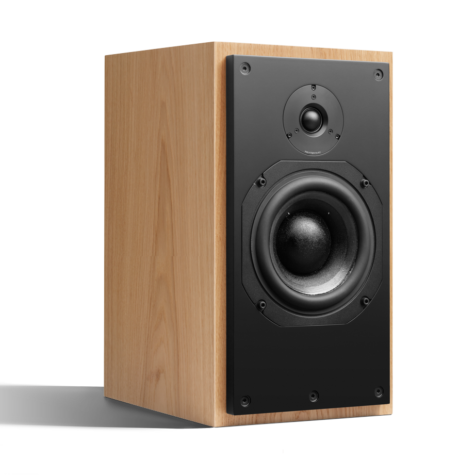

    SCM20-new-no-grille

    THIRTY-FIVE YEARS IN PRODUCTION


    The SCM20PSL represents ATC’s highest performing 2-way, stand-mount, passive loudspeaker. The model has been in continuous production since 1990 and has evolved through four driver/crossover revisions into its current form. Music and audio aficionados worldwide enjoy its special combination of clarity, balance, mid-range detail in combination with classic styling.

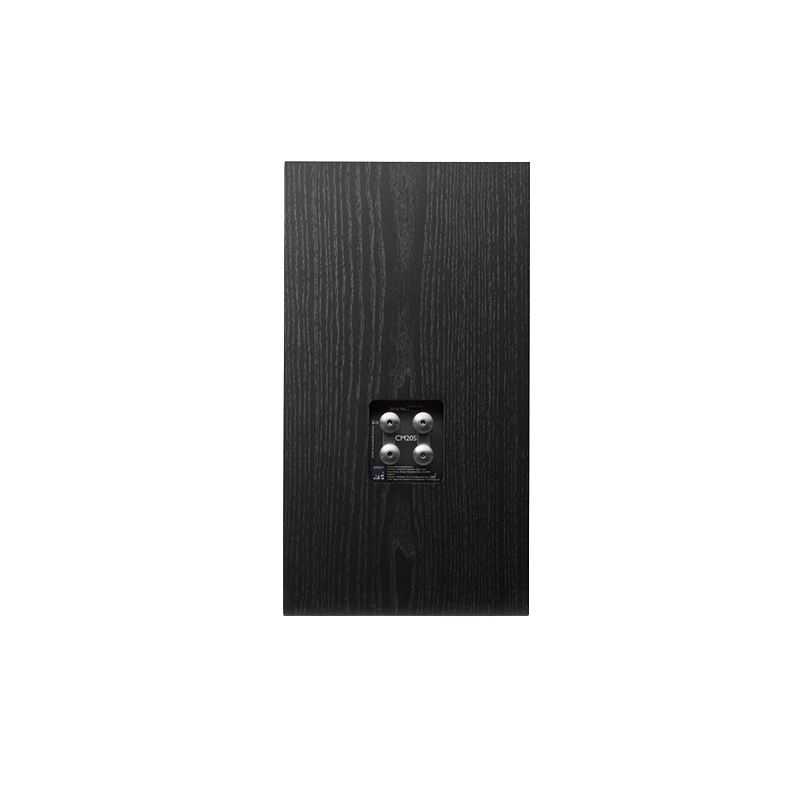

    HAND-MADE CROSSOVER AND BI-WIRE INPUTS


    Its 2-way crossover network is hand-made by ATC using very high-quality film capacitors and ATC’s own air-cored inductors, employed for their lack of hysteresis and lower distortion. Input to the crossover is made via heavy duty bi-wire terminals.

    AMPLIFIER PARTNERING

    The loudspeaker is ideally paired with ATC pre/power/integrated amplifiers. However, their neutral fidelity, outstanding resolution and modest load impedance also ensures excellent compatibility with a very wide range of quality electronics.

    CABINET CONSTRUCTION


    The cabinet is constructed to be heavy and inert with a combination of bracing for stiffness and damping to suppress resonance. Bitumastic damping panels are deployed at critical positions to minimise cabinet colouration. It is available in a wide range of finishes.

    ALSO AVAILABLE AS A TOWER


    The SCM20PSL is also available as a floor-standing ‘tower’ model with identical performance in the form of the SCM20PSLT.

    CABINET FINISHES


    Natural

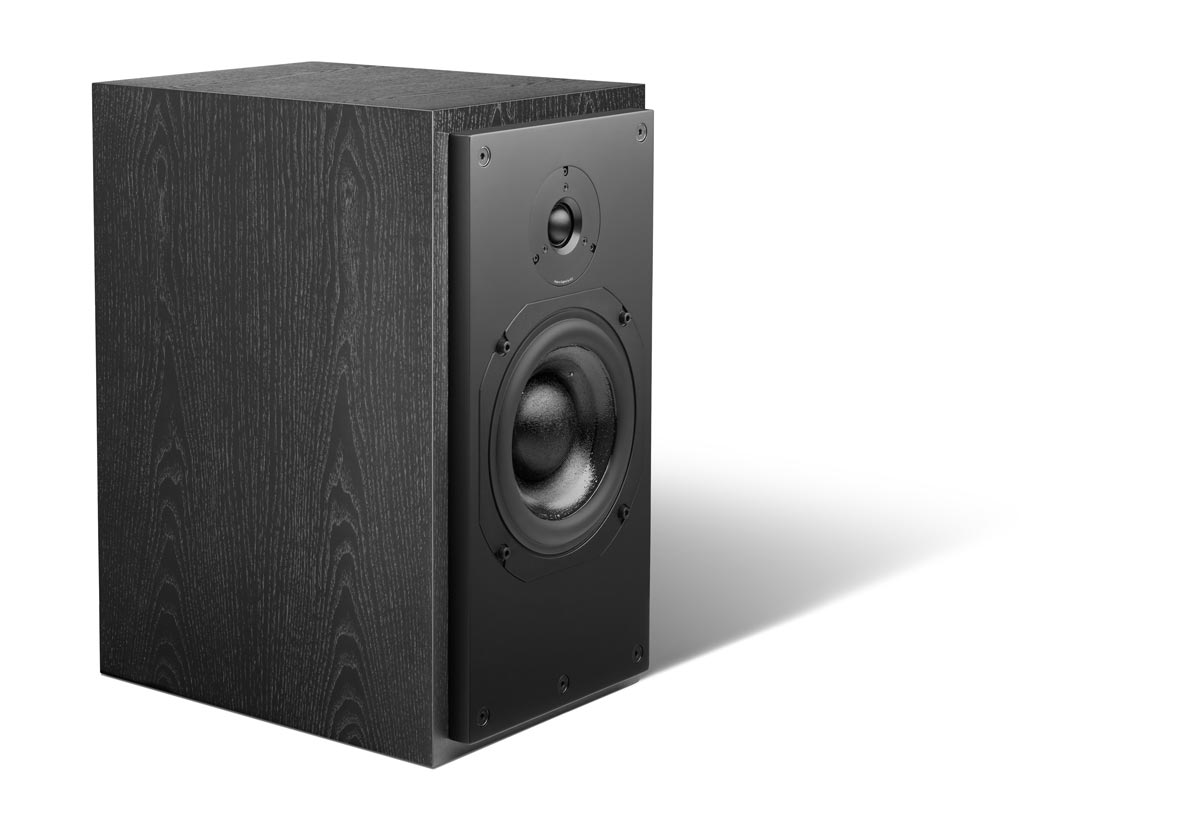

    ATC SCM20PSL in Black Ash finish
    Black Ash

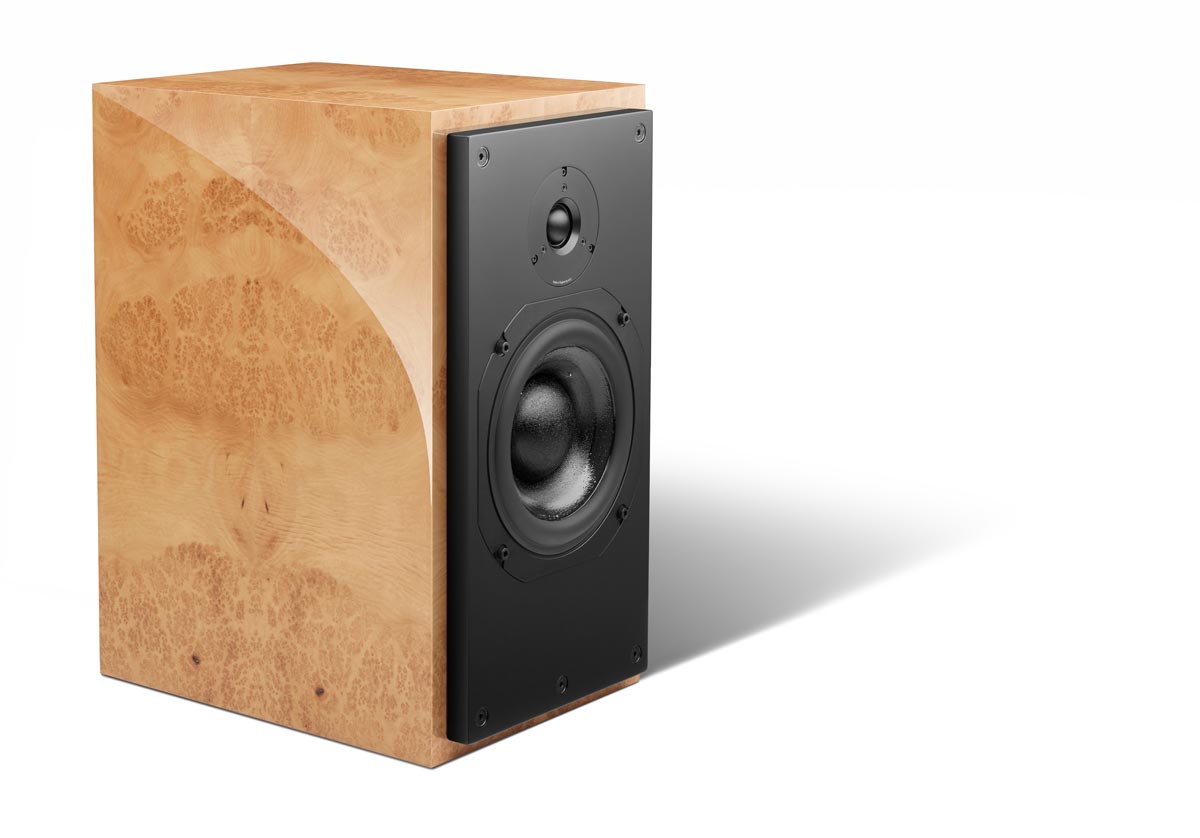

    ATC SCM20PSL in Burr Magnolia finish
    Burr Magnolia

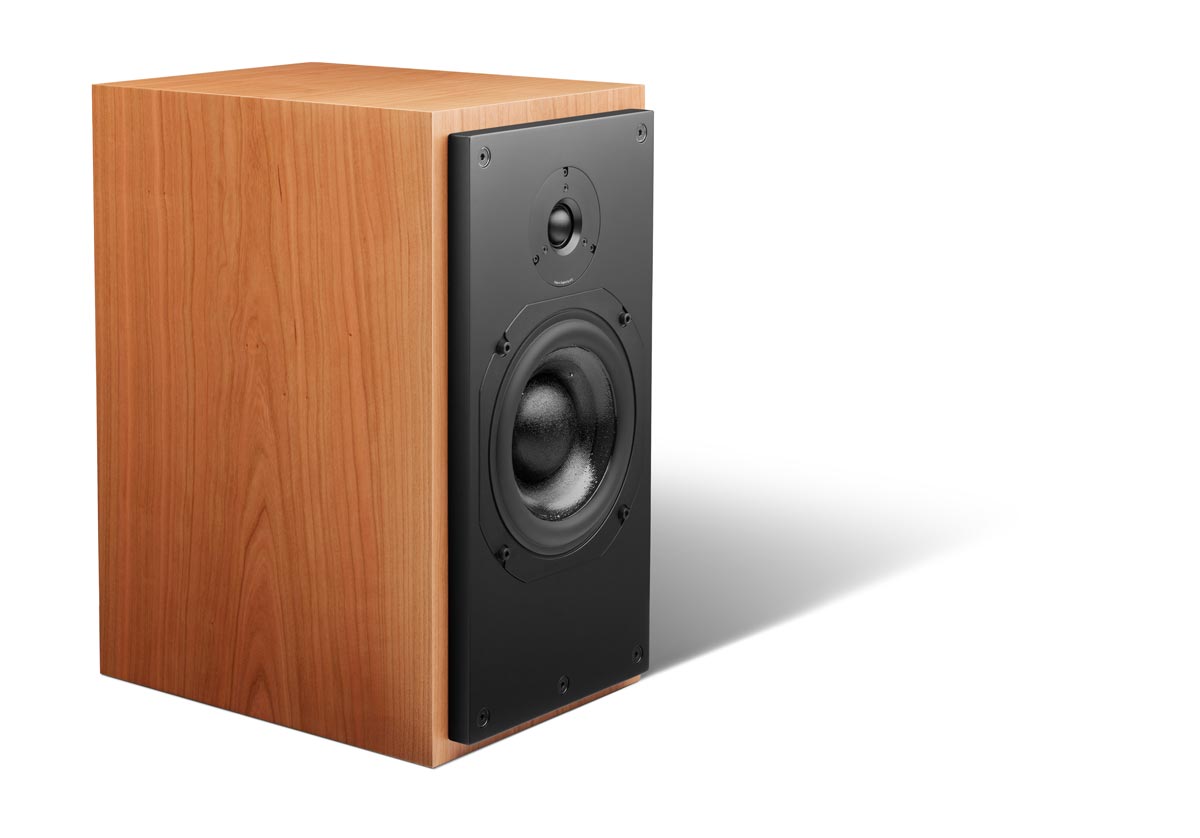

    ATC SCM20PSL in Cherry finish
    Cherry

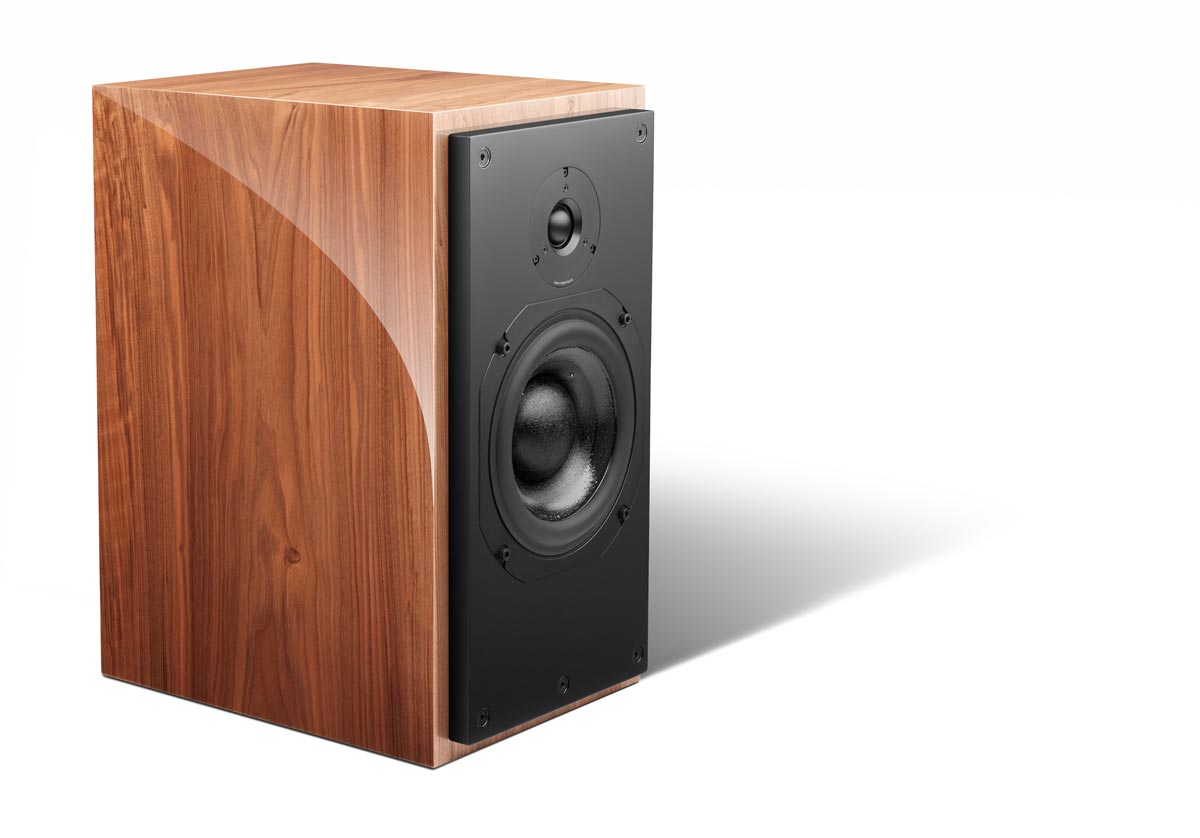

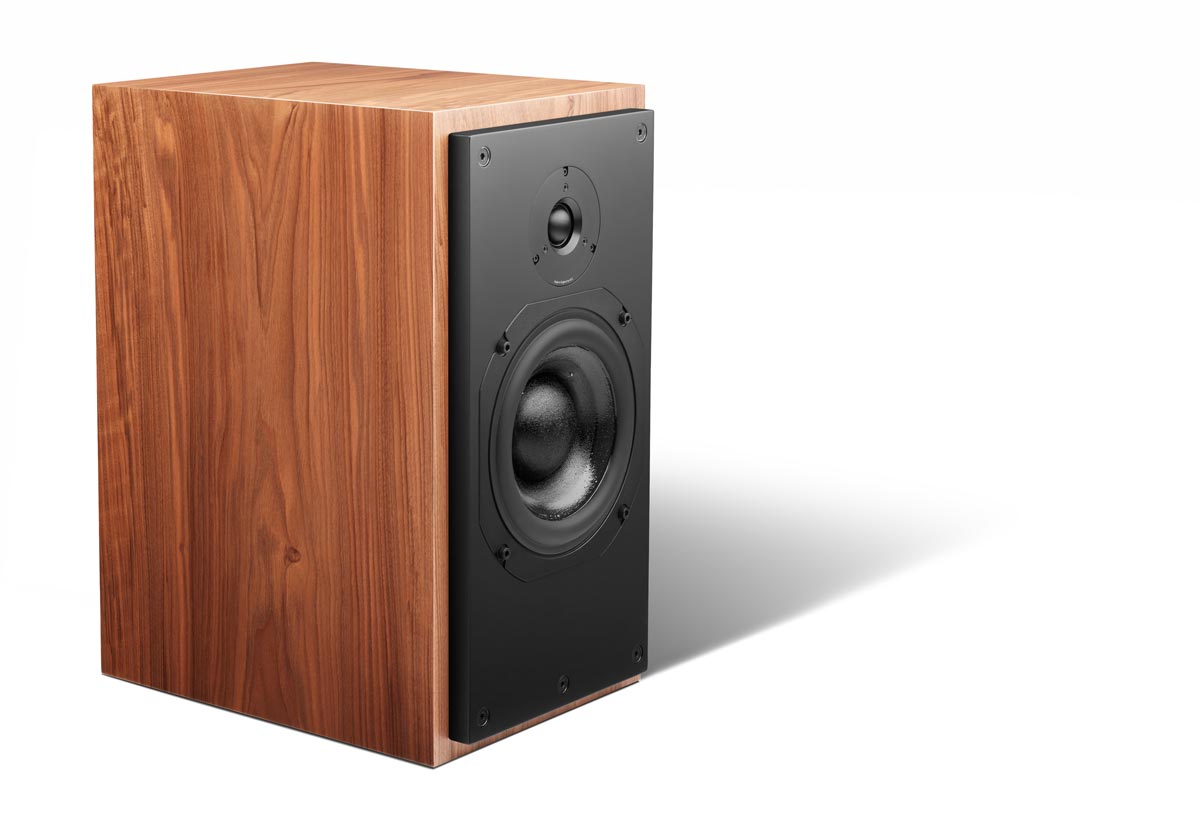

    ATC SCM20PSL in European Walnut finish
    European Walnut

    ATC SCM20PSL in Oak finish
    Oak

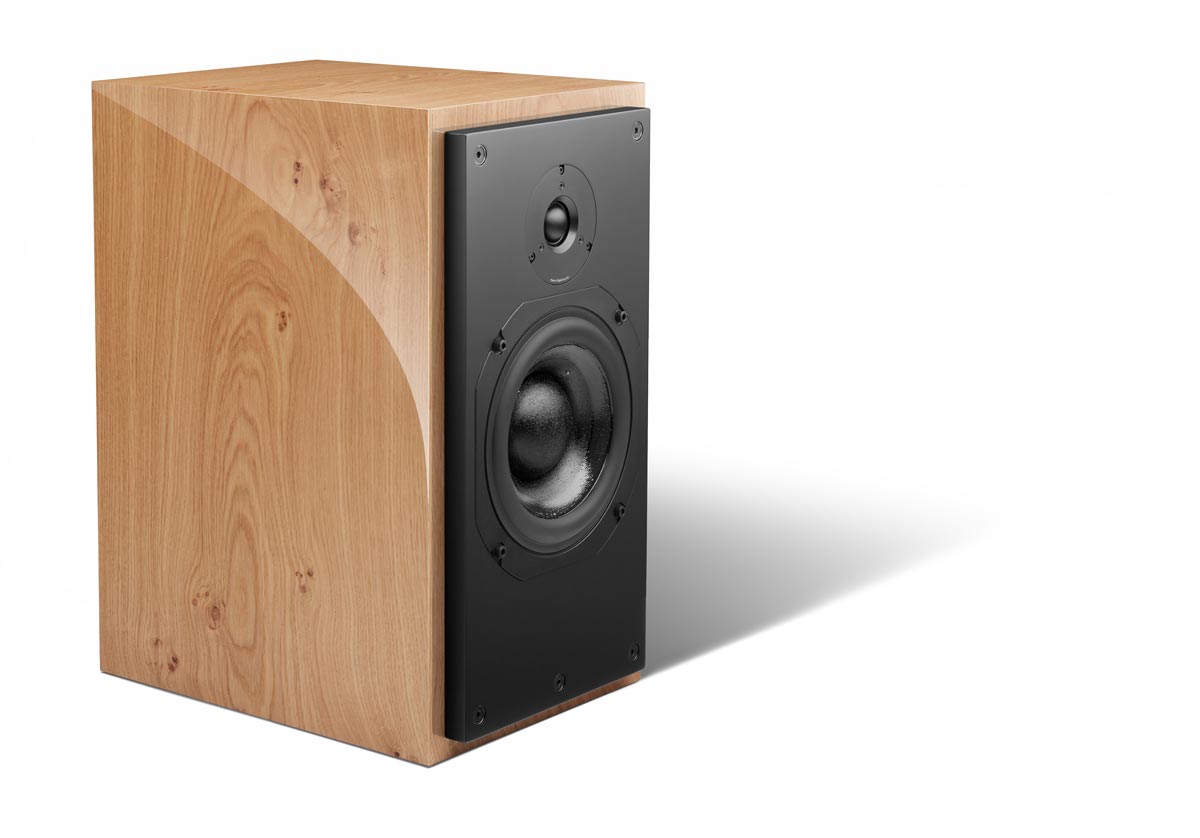

    ATC SCM20PSL in Pippy Oak finish
    Pippy Oak

    ATC SCM20PSL in Rosewood finish
    Rosewood

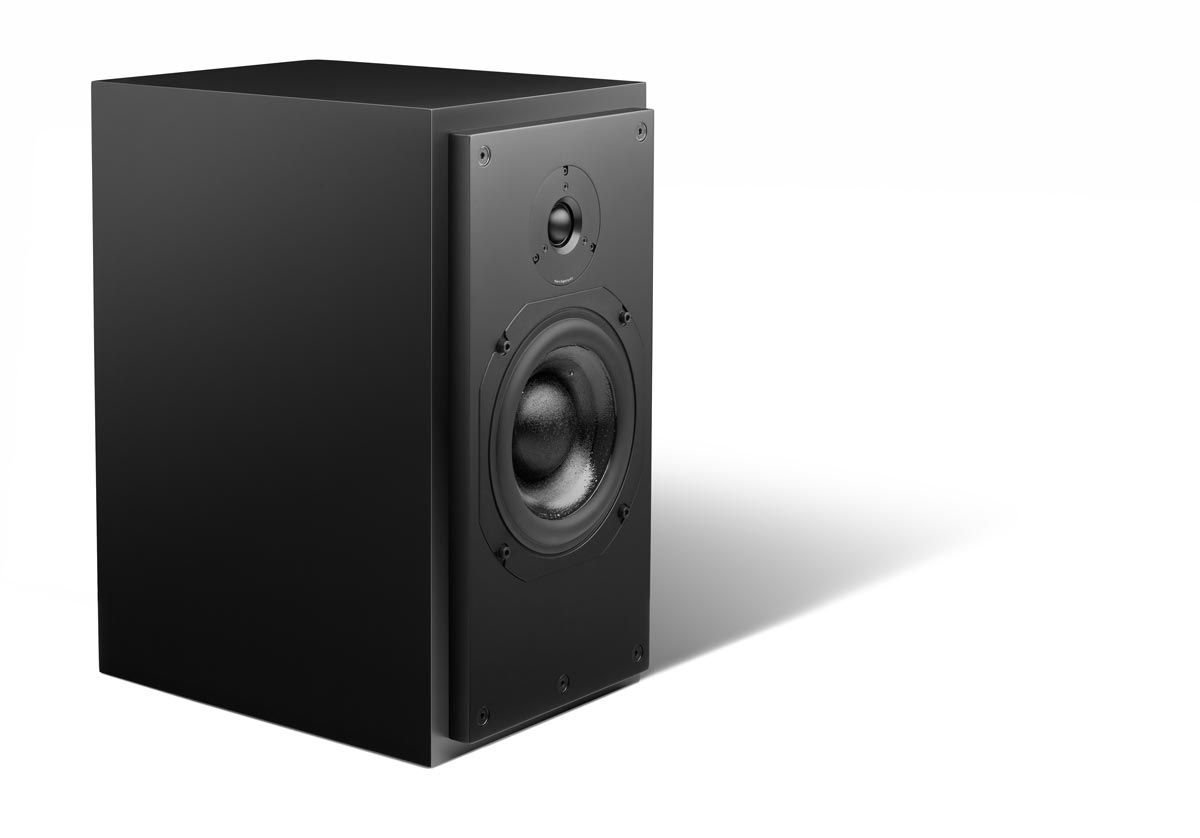

    ATC SCM20PSL in Satin Black finish
    Satin Black

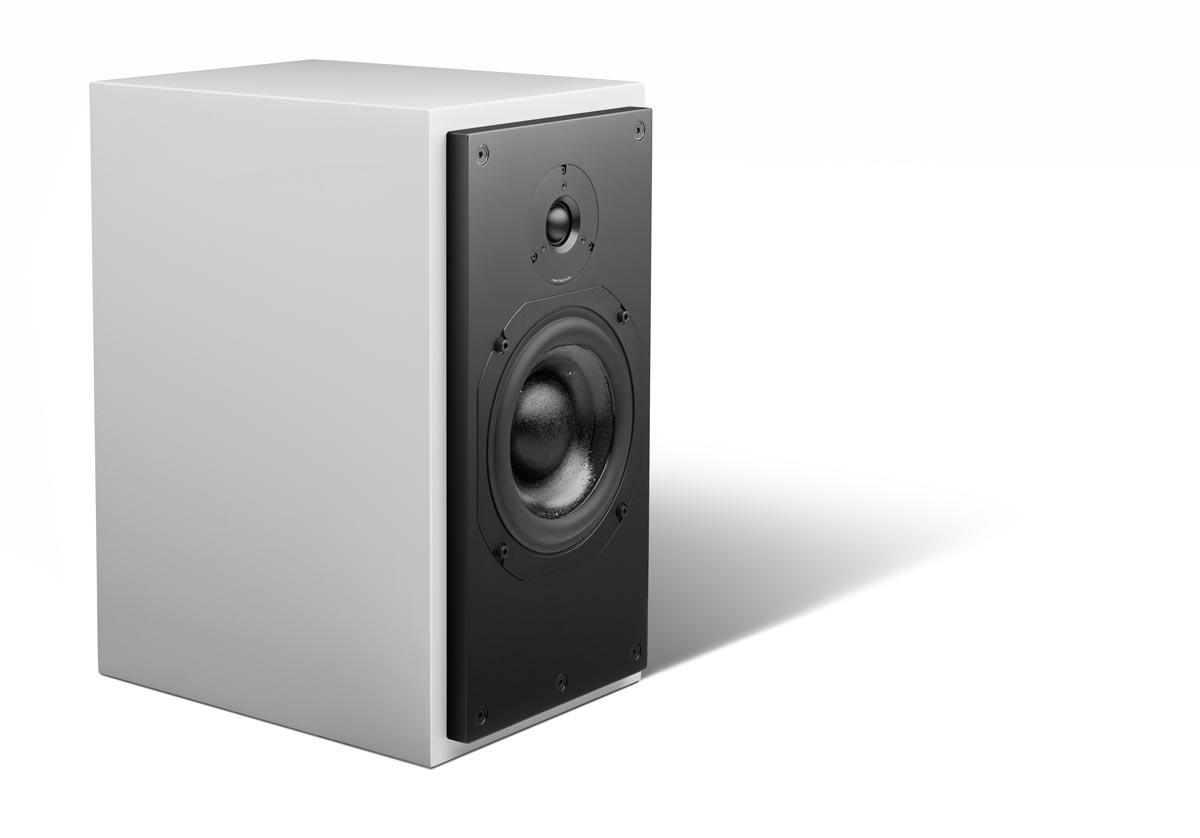

    ATC SCM20PSL in Satin White finish
    Satin White

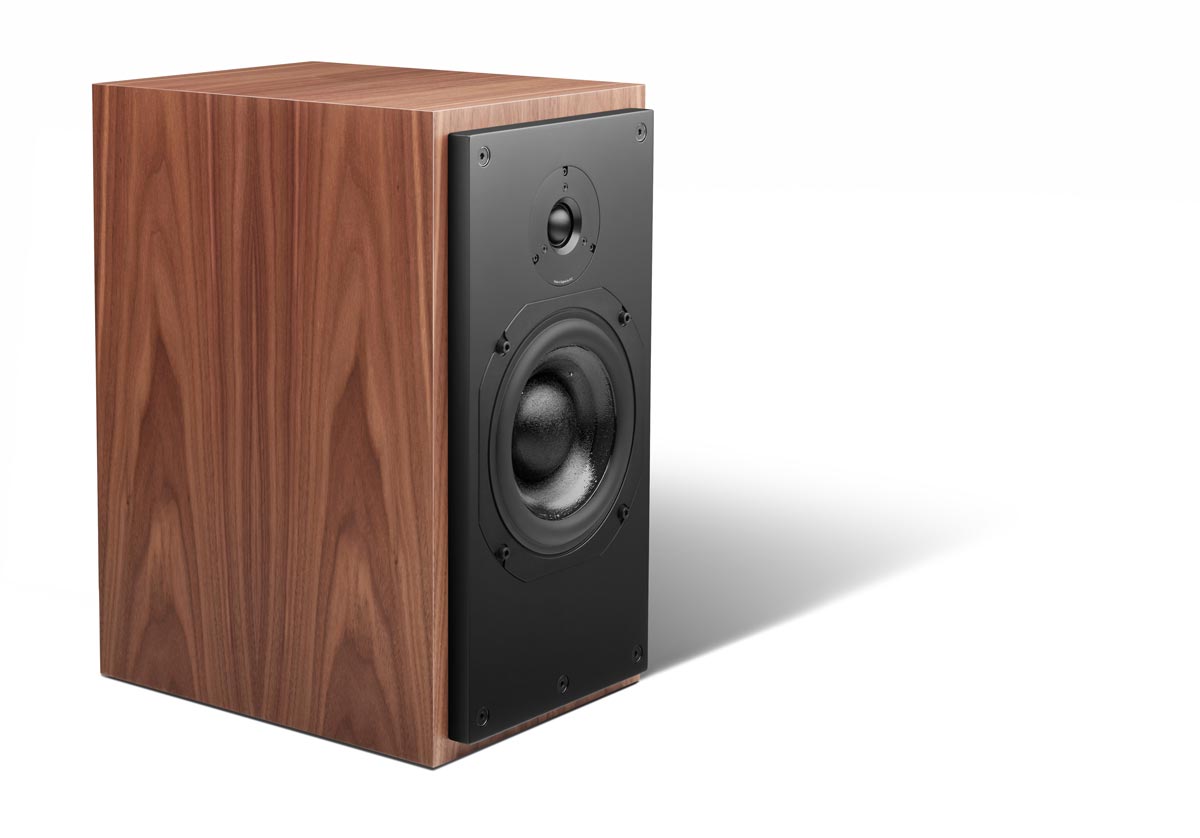

    ATC SCM20PSL in Walnut finish
    Walnut

    Gloss


    ATC SCM20PSL in Burr Magnolia finish
    Burr Magnolia

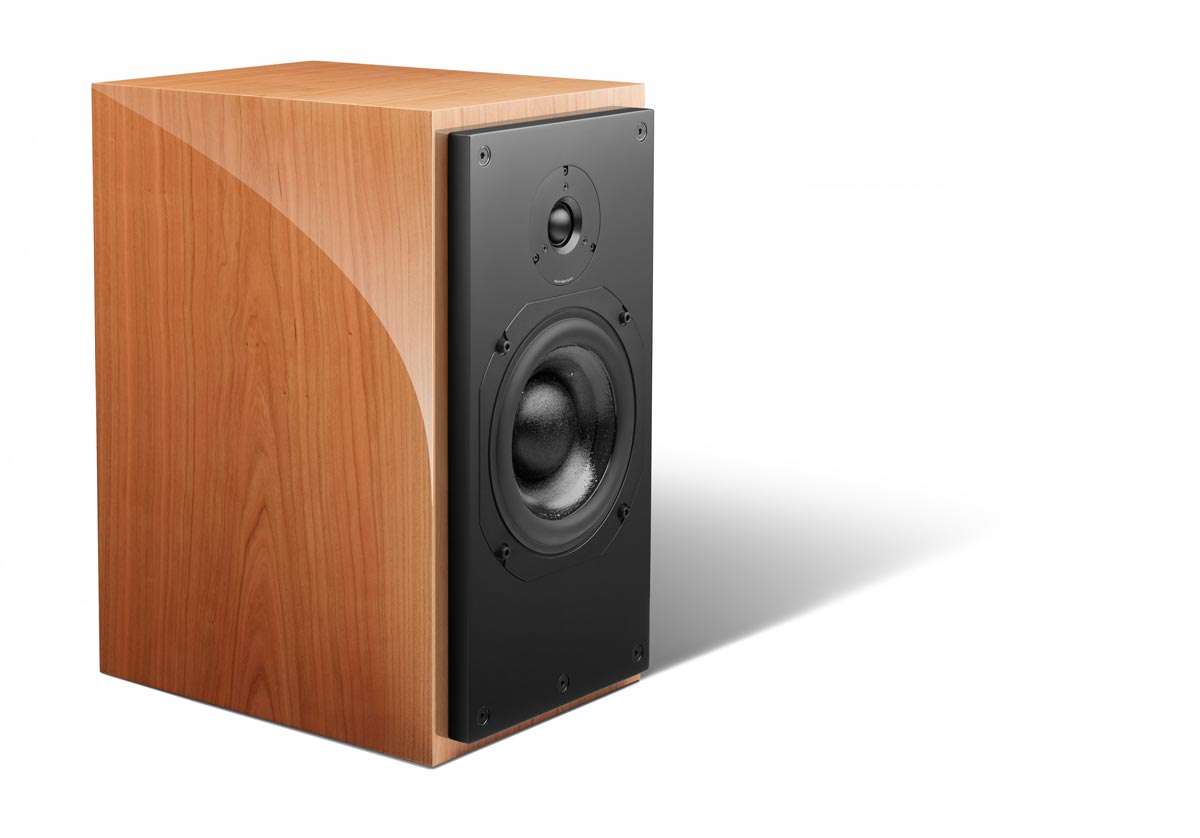

    ATC SCM20PSL in Cherry finish
    Cherry

    ATC SCM20PSL in European Walnut finish
    European Walnut

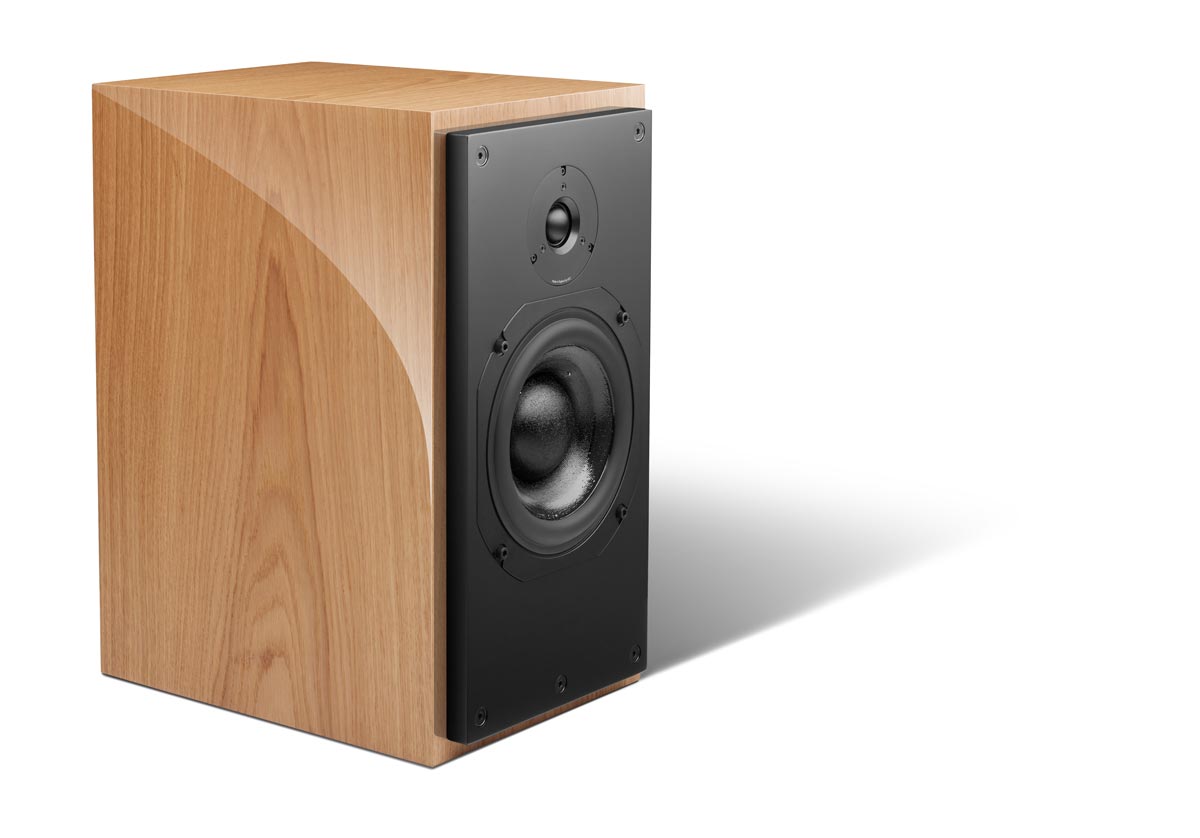

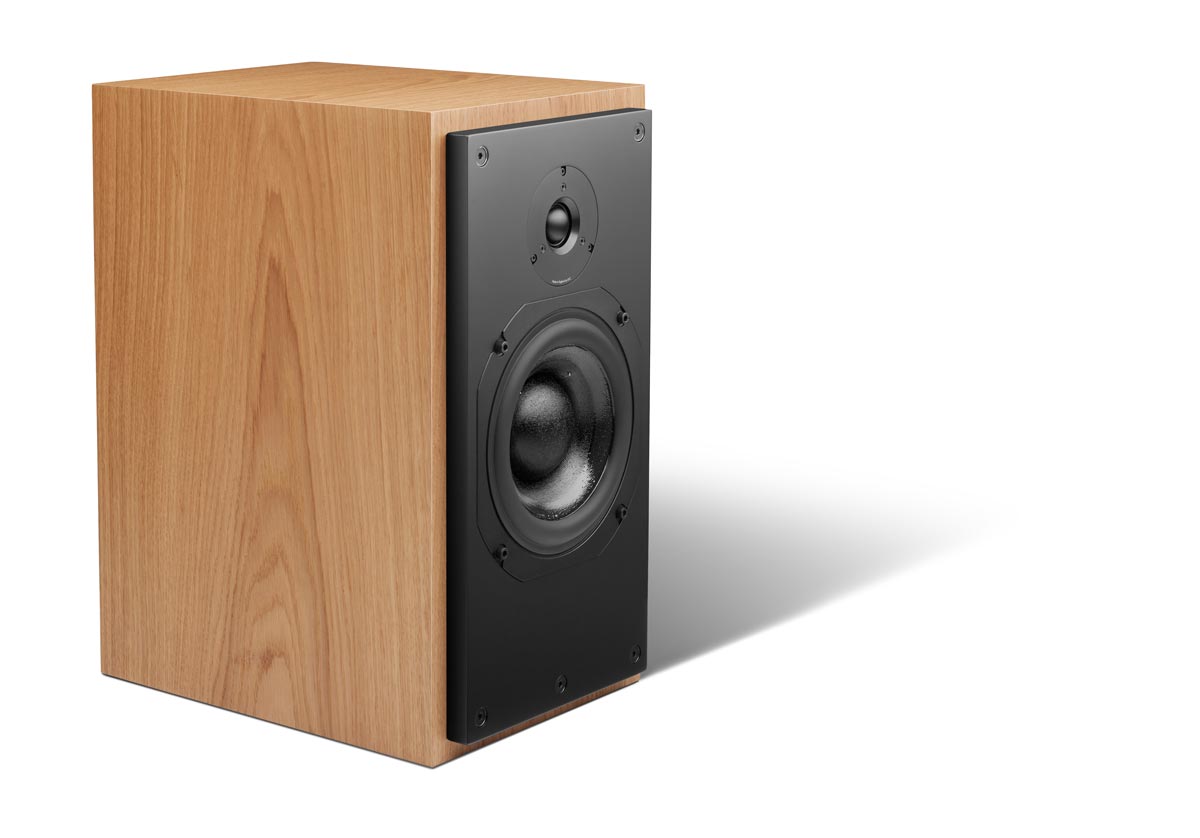

    ATC SCM20PSL in Oak finish
    Oak

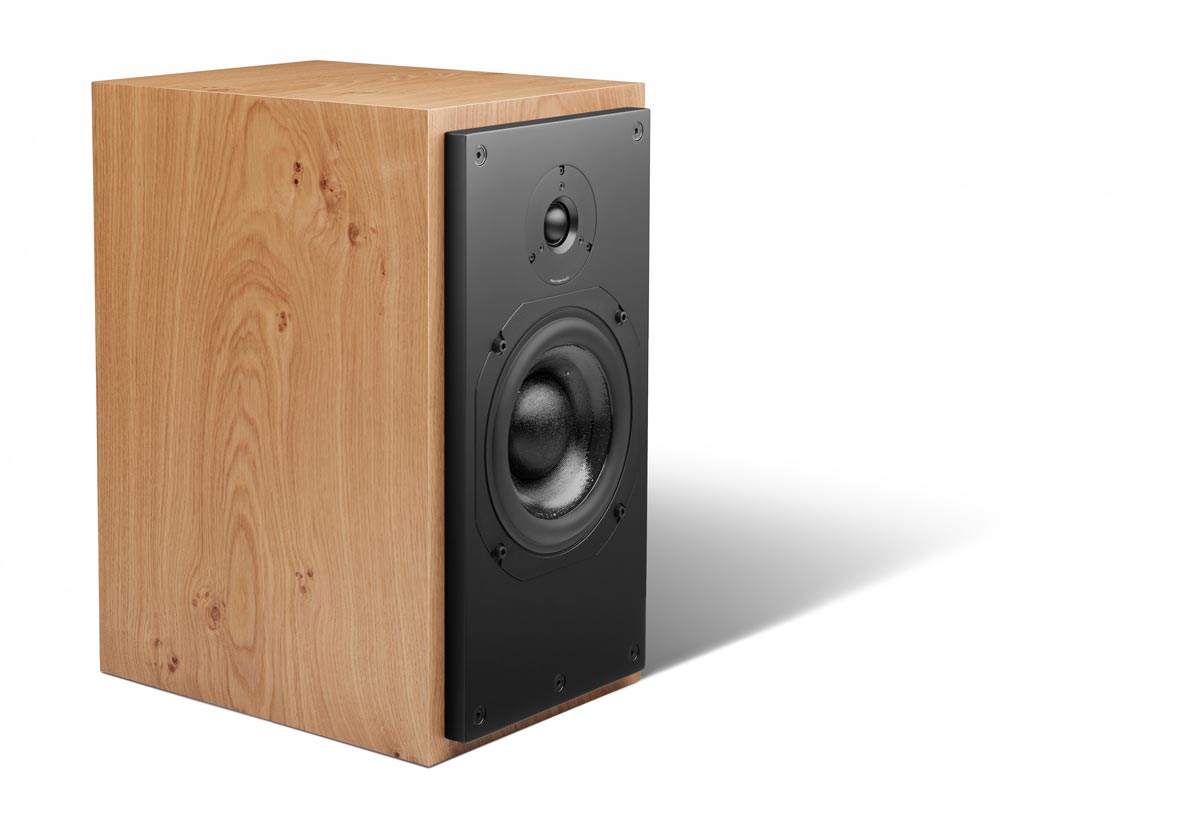

    ATC SCM20PSL in Pippy Oak finish
    Pippy Oak

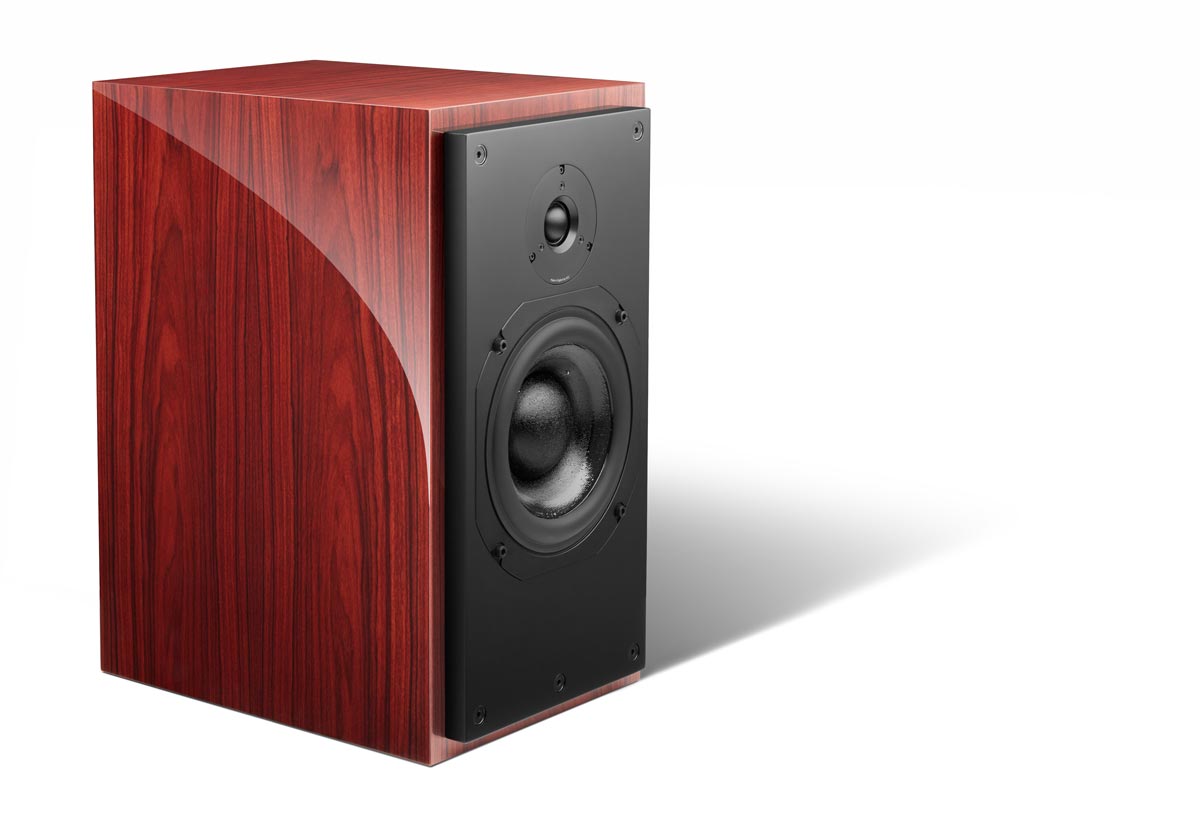

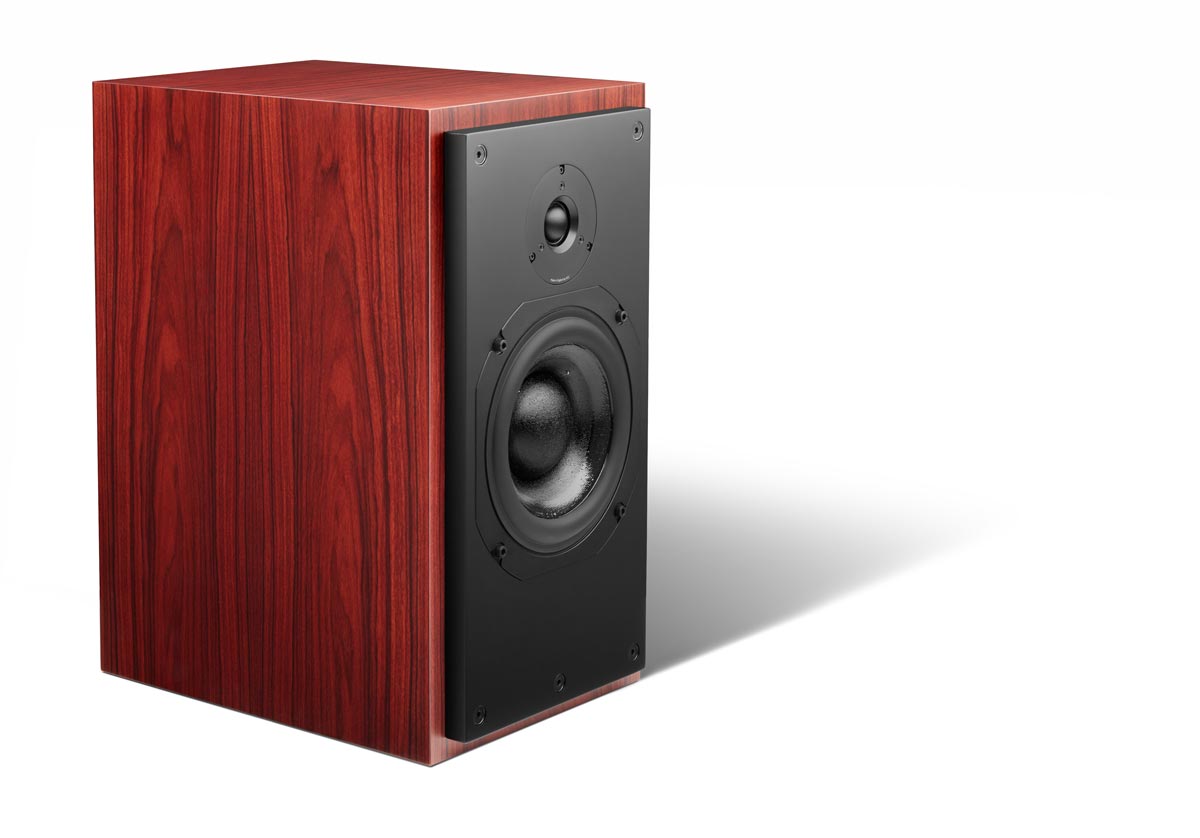

    ATC SCM20PSL in Rosewood finish
    Rosewood

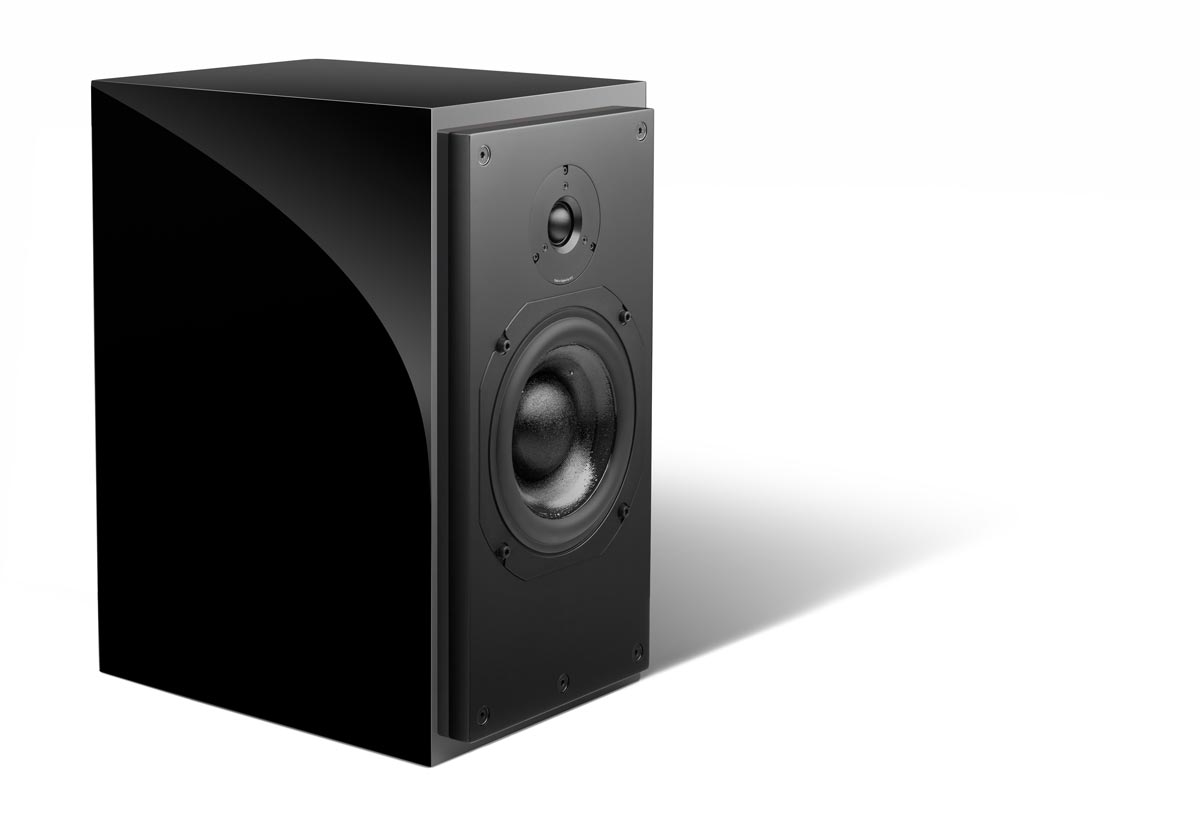

    ATC SCM20PSL in Piano Black finish
    Piano Black

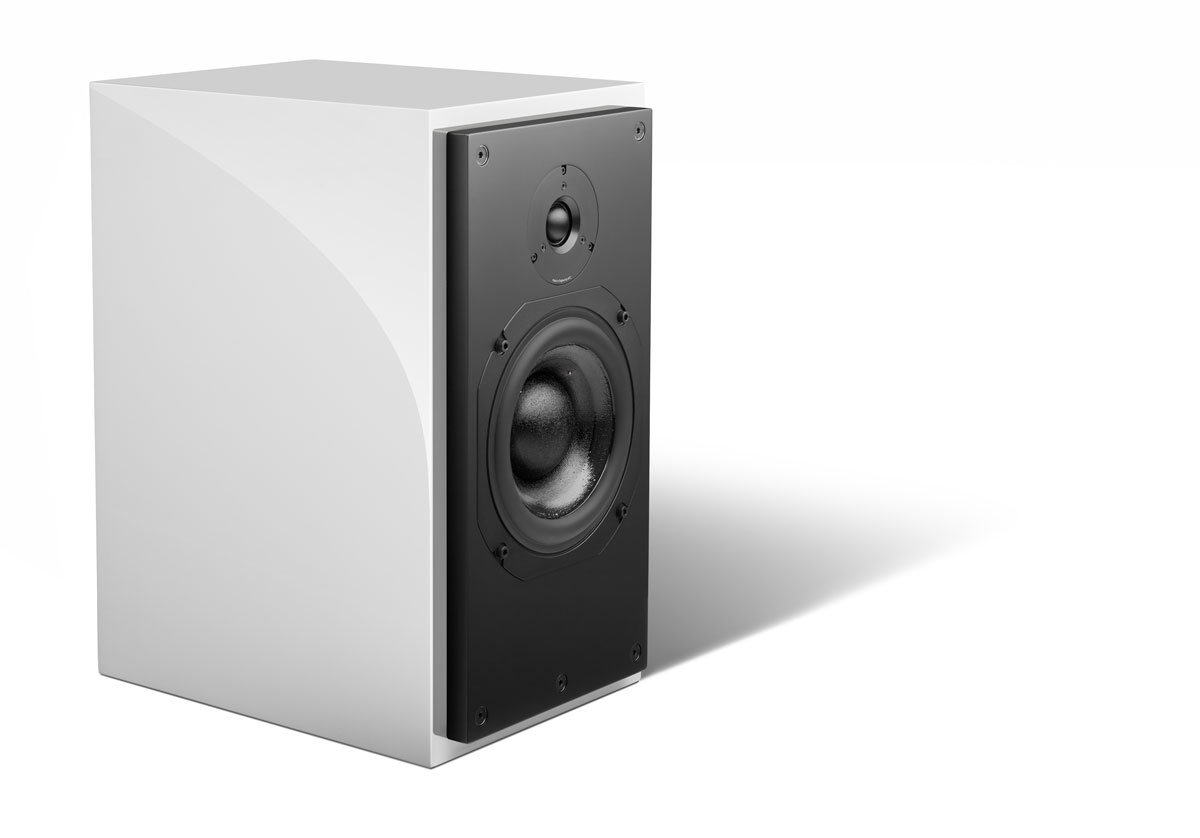

    ATC SCM20PSL in Piano White finish
    Piano White

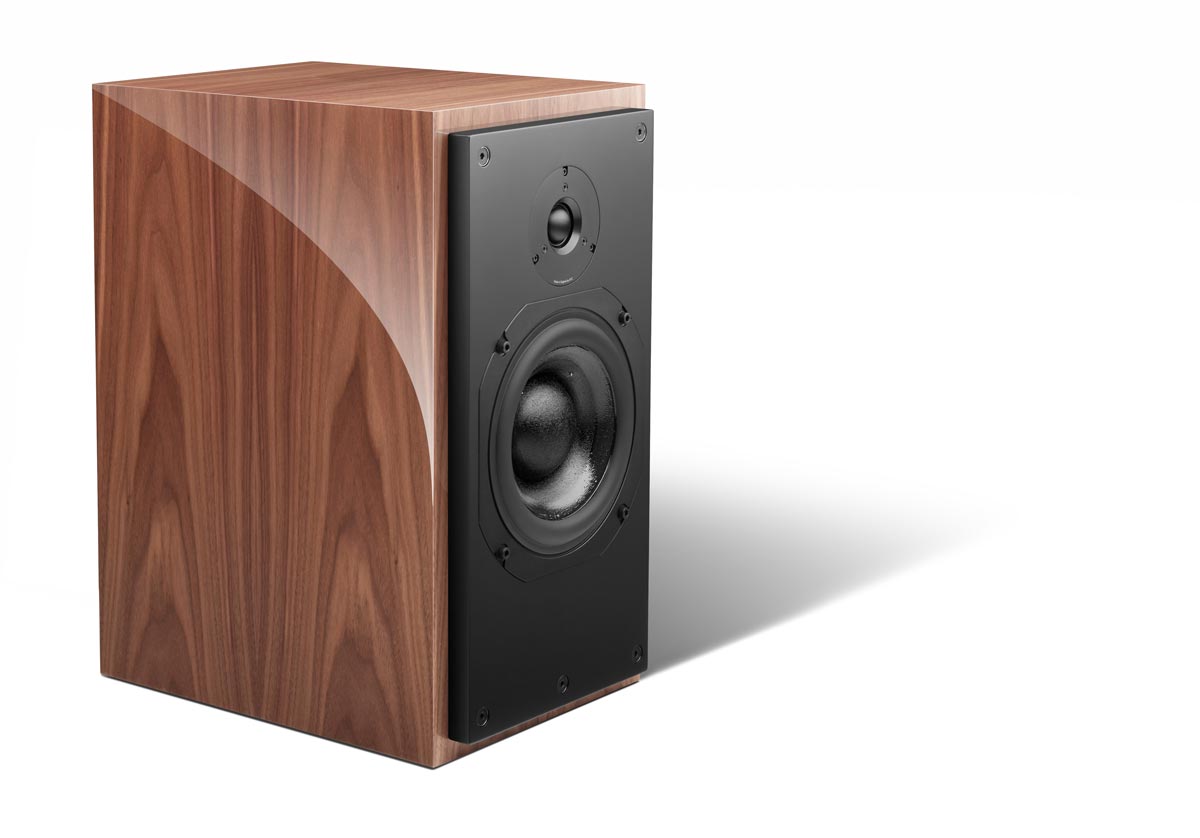

    ATC SCM20PSL in Walnut finish
    Walnut

    Other veneers and finishes can also be supplied to special order.

    SPECIFICATIONS

    Acoustic Specifications

    • Mid/Bass driver: 1 x 150mm/6″, SB75-150SL 8Ω
    • High Frequency Driver: 1 x 25mm/1″, SH25-76S 6Ω
    • Low Frequency Cut-off: 55Hz (-6dB, anechoic)
    • High Frequency Cut-off: 25kHz (-6dB)
    • Matched Response: +/-0.5dB
    • Crossover Point: 2.2kHz
    • MaxSPL: 108dB continuous, 114dB peak (per pair, IEC Weighted Pink Noise, 1m, anechoic)
    • System Sensitivity: 85dB (1W @1m)

    Electronic Specifications

    • Recommended Power Amplifier: 75W-300W
    • Impedance: 8Ω nominal/5.5Ω minimum

    Physical Specifications

    • Net Weight: 16.9kg
    • Dimensions: HxWxD 440 x 239 x 325.5mm
    SPECIFICATION SHEET
    USER MANUAL

    Why Choose Us?

    Why Choose Us?

    We are committed to exceptional customer service, accessibility and a customer-centric approach. We offer premium products from top brands that we proudly stand behind. Our promise is to deliver the best.

    Authorised reseller

    Premium Sound is an Authorised dealer of all the brands we sell. That means we are trusted product experts, able to offer up-to-date support and honest advice. All products come with a full Australian warranty.

    We’re passionate about the richness and precision of high-quality audio and video. That’s why every brand and product we offer meets our stringent Premium Quality criteria.

    As a small, dedicated team deeply passionate about all things audio and video, we’re enthusiastic about having conversations on the subject. Don’t hesitate to initiate a chat, and we’ll gladly help you discover the ideal product.

    We prioritise your security by implementing comprehensive measures and precautions. Our online checkout process includes trusted payment options, 3D Secure, and Anti-Fraud technology to ensure a seamless and highly secure transaction experience.

    In the event that things don’t go as expected, rest assured, we’re here to assist you. While technology evolves rapidly, it doesn’t mean it should be hastily discarded when issues arise. We believe in providing lasting solutions

    Premium Sound place picture
    Premium Sound
    4.8
    Based on 123 reviews
    review us on
    Kelly Lim profile picture
    Kelly Lim
    2 years ago
    Exceptional Service, fast shipping!! Highly recommend 😀
    Jerome Reid profile picture
    Jerome Reid
    2 years ago
    Helpful, and extremely knowledgable professionls, I walked away with something so special my vinyl now sends goosbumps down my back. Pat was brilliant, an unassuming genius.
    Gary Croft profile picture
    Gary Croft
    3 years ago
    Excellent knowledge of their product and wonderful for helpful service
    David Ho profile picture
    David Ho
    3 years ago
    Premium sound are nothing less than amazing. I've reluctantly asked them to do things with my order, they happily accepted. Bang & Olufsen is simply class, the sound notes are simply above the rest, and will happily come back for service. Thankyou
    Mark Kelso profile picture
    Mark Kelso
    3 years ago
    Top service, good knowledge of there products 👍
    Phuc profile picture
    Phuc
    3 years ago
    Ordered a Devialet Mania from this store The process was very smooth. Received the item in a few days and the product works great. Would definitely recommend.
    Manoj Kumar KN profile picture
    Manoj Kumar KN
    4 years ago
    Store was setup perfectly to accommodate wide range of products with good prices. Customer service was very professional over the phone and in-store. Product was well packed above the default packaging.
    Serena Huh profile picture
    Serena Huh
    5 years ago
    Got directed here by Factory Sound in South Melbourne and finally found the 2.5mm/3.5mm cable I need. The lady who served me was great. Keen to help and friendly.

    It was interesting that the gentleman I talked to on the phone sounded like a friendly community middle aged uncle (no offence intended). After I'd parked, I was looking for a shop that's got the similar vibe to Factory Sound. When I stepped into the shop, my oh my, the contrary of what you had in mind and the reality lol

    It's a fancy pants shop by its look, but friendly environment. Let's all get something Bose today!

    Related products

    New
    ATC SCM40 Loudspeaker

    ATC Speakers

    ATC SCM40 Loudspeaker

    $11,495.00
    Select options
    This product has multiple variants. The options may be chosen on the product page

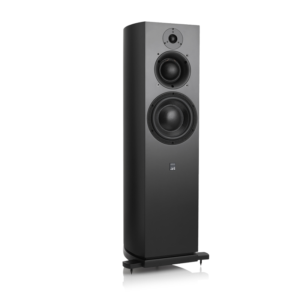

    ATC SCM40 Active Loudspeaker

    ATC Speakers

    ATC SCM40 Active Loudspeaker

    $19,995.00
    Select options
    This product has multiple variants. The options may be chosen on the product page
    New
    ATC SCM19 Loudspeaker

    ATC Speakers

    ATC SCM19 Loudspeaker

    $6,295.00
    Select options
    This product has multiple variants. The options may be chosen on the product page

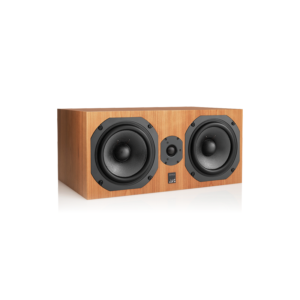

    ATC C3C Center Channel Speaker
