ATC SCM50 Passive Loudspeaker

ATC SCM50 Passive Loudspeaker

$27,995.00

Condition: New

    Payment options
    zip humm

    Buy now, pay later, or apply for interest-free finance with Humm.

    SKU: SCM50 Category: Tag:

    SCM50

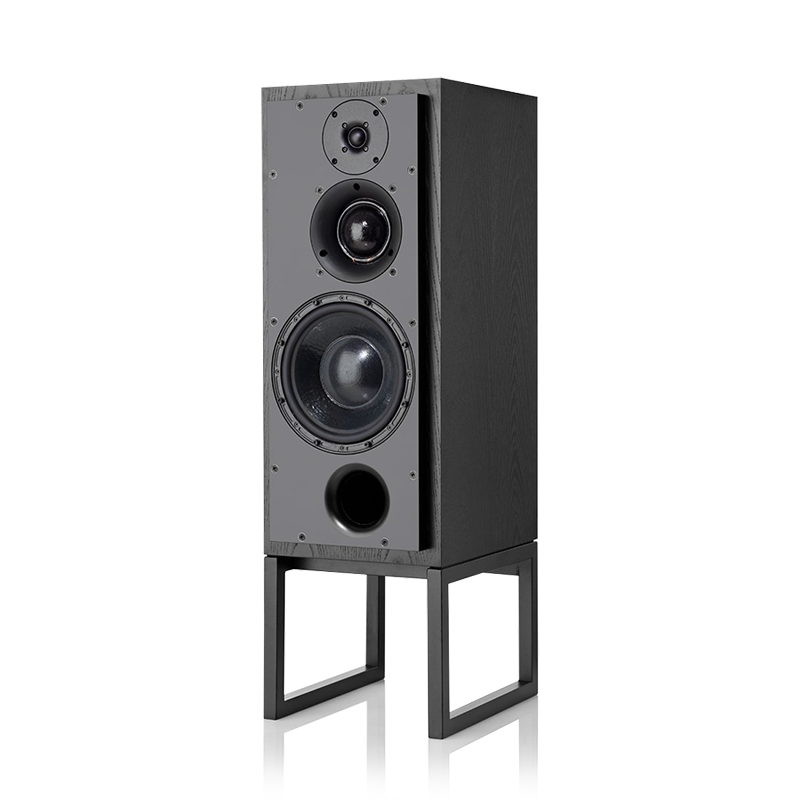

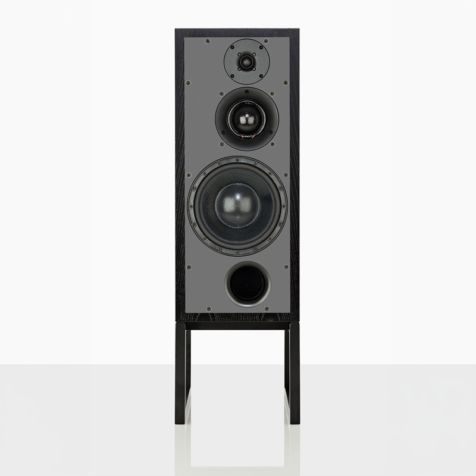

    Three-way stand-mount loudspeaker

    The SCM50 ASL (active) and SCM50 SL (passive) are designed to perform at their best in the recording studio or at home with the finest quality hi-fi equipment.

    SM75-150S SOFT DOME MIDRANGE

    The monitors’ ability to reproduce music and speech with phenomenal accuracy, transparency and dynamics lies mainly in the SM75-150S soft dome midrange driver. However, recent modifications that include the new ATC SH25-76S tweeter and enhanced port profile have brought about further improvements to all performance parameters.

    SUPER LINEAR BASS AND MOS-FET AMPLIFICATION

    Each drive unit in the active model has its own dedicated and individually matched MOS-FET amplifier, while the 234mm/9″ bass driver incorporates ATC’s unique Super Linear Magnet technology. Our active crossover network consists of a wide band-width, electronically balanced input stage with high common mode rejection and very low distortion.

    SCM50

    DESIGNED AND MANUFACTURED IN-HOUSE

    Like the HF, mid and bass drivers, all electronics are designed and manufactured in-house to create a no-compromise active system. In passive form, the SCM50 SL provides broad and symmetrical dispersion, excellent amplitude and phase characteristics throughout the frequency range.


    Speakers are supplied with stands and fabric wrapped grilles.

    AVAILABLE FINISHES

    Standard Veneers

    Cherry
    Walnut
    Oak
    Black Ash

    Standard Paints

    Satin Black
    Satin White

    Premium Veneers

    Rosewood
    European Crown Cut Walnut
    Pippy Oak
    Burr Magnolia
    Burr Poplar

    High Gloss

    Clear High Glossed Veneer
    Piano Black
    Piano White

    Finish swatches are illustrative representations only. Natural veneers vary in grain and tone, and screen colours differ between devices — please ask us to arrange a sample before choosing a finish.

    SPECIFICATIONS

    SCM50ASL (Active)

    • Drivers: HF 25mm, Mid 75mm, LF 234mm Super Linear
    • Amplitude Linearity ±2dB: 70Hz – 20kHz
    • Frequency Response -6dB: 38Hz & 25kHz
    • Matched Response: ±0.5dB
    • Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
    • Max continuous SPL @1m: 112dB SPL
    • Crossover Frequency: 380Hz & 3.5kHz
    • Input Connector: XLR
    • Input Sensitivity: 1V
    • Input Impedance: >10k ohms balanced XLR
    • Amplifier Output: HF 50 Watts RMS, MF 100 Watts RMS, LF 200 Watts RMS
    • Overload Protection: Active FET momentary gain reduction (amplifiers)
    • Power Requirements: Voltage 100, 115, 230 (factory set); Frequency 50/60Hz; Power nominal 90 Watts, driven 350 Watts
    • Accessories Inc. (per pair): 2 x Speaker Stands (as shown), 2 x fabric wrapped grilles, 8 x M8 x 1.25mm stand spikes and nuts
    • Cabinet Dimensions (HxWxD): 717 x 304 x 480mm including amps (stands add 250mm to height)
    • Weight: 48.9kg

    SCM50SL (Passive)

    • Drivers: HF 25mm, Mid 75mm, LF 234mm Super Linear
    • Amplitude Linearity ±2dB: 70Hz – 20kHz
    • Frequency Response -6dB: 40Hz & 25kHz
    • Matched Response: ±0.5dB
    • Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
    • Sensitivity (sine wave): 85dB @ 1W @ 1m
    • Max continuous SPL @1m: 112dB SPL
    • Crossover Frequency: 380Hz & 3.5kHz
    • Input Connector: Binding Posts/4mm banana plugs
    • Recommended Power Amplifier: 100 to 1500 Watts
    • Nominal Impedance: 8 ohms (5.5 ohm minimum)
    • Accessories Inc. (per pair): 2 x Speaker Stands (as shown), 2 x fabric wrapped grilles, 8 x M8 x 1.25mm stand spikes and nuts
    • Cabinet Dimensions (HxWxD): 717 x 304 x 425mm (stands add 250mm to height)
    • Weight: 41.1kg
    USER MANUAL

    Why Choose Us?

    Why Choose Us?

    We are committed to exceptional customer service, accessibility and a customer-centric approach. We offer premium products from top brands that we proudly stand behind. Our promise is to deliver the best.

    Authorised reseller

    Premium Sound is an Authorised dealer of all the brands we sell. That means we are trusted product experts, able to offer up-to-date support and honest advice. All products come with a full Australian warranty.

    We’re passionate about the richness and precision of high-quality audio and video. That’s why every brand and product we offer meets our stringent Premium Quality criteria.

    As a small, dedicated team deeply passionate about all things audio and video, we’re enthusiastic about having conversations on the subject. Don’t hesitate to initiate a chat, and we’ll gladly help you discover the ideal product.

    We prioritise your security by implementing comprehensive measures and precautions. Our online checkout process includes trusted payment options, 3D Secure, and Anti-Fraud technology to ensure a seamless and highly secure transaction experience.

    In the event that things don’t go as expected, rest assured, we’re here to assist you. While technology evolves rapidly, it doesn’t mean it should be hastily discarded when issues arise. We believe in providing lasting solutions

    Premium Sound place picture
    Premium Sound
    4.8
    Based on 123 reviews
    review us on
    Kelly Lim profile picture
    Kelly Lim
    2 years ago
    Exceptional Service, fast shipping!! Highly recommend 😀
    Jerome Reid profile picture
    Jerome Reid
    2 years ago
    Helpful, and extremely knowledgable professionls, I walked away with something so special my vinyl now sends goosbumps down my back. Pat was brilliant, an unassuming genius.
    Gary Croft profile picture
    Gary Croft
    3 years ago
    Excellent knowledge of their product and wonderful for helpful service
    David Ho profile picture
    David Ho
    3 years ago
    Premium sound are nothing less than amazing. I've reluctantly asked them to do things with my order, they happily accepted. Bang & Olufsen is simply class, the sound notes are simply above the rest, and will happily come back for service. Thankyou
    Mark Kelso profile picture
    Mark Kelso
    3 years ago
    Top service, good knowledge of there products 👍
    Phuc profile picture
    Phuc
    3 years ago
    Ordered a Devialet Mania from this store The process was very smooth. Received the item in a few days and the product works great. Would definitely recommend.
    Manoj Kumar KN profile picture
    Manoj Kumar KN
    4 years ago
    Store was setup perfectly to accommodate wide range of products with good prices. Customer service was very professional over the phone and in-store. Product was well packed above the default packaging.
    Serena Huh profile picture
    Serena Huh
    5 years ago
    Got directed here by Factory Sound in South Melbourne and finally found the 2.5mm/3.5mm cable I need. The lady who served me was great. Keen to help and friendly.

    It was interesting that the gentleman I talked to on the phone sounded like a friendly community middle aged uncle (no offence intended). After I'd parked, I was looking for a shop that's got the similar vibe to Factory Sound. When I stepped into the shop, my oh my, the contrary of what you had in mind and the reality lol

    It's a fancy pants shop by its look, but friendly environment. Let's all get something Bose today!

    Related products

    ATC SCM50 Active Loudspeaker

    ATC Speakers

    ATC SCM50 Active Loudspeaker

    $37,995.00
    Select options
    This product has multiple variants. The options may be chosen on the product page
    New
    ATC SCM40 Loudspeaker

    ATC Speakers

    ATC SCM40 Loudspeaker

    $11,495.00
    Select options
    This product has multiple variants. The options may be chosen on the product page
    ATC SCM20ASL Active Loudspeaker

    ATC Speakers

    ATC SCM20ASL Active Loudspeaker

    $14,995.00
    Select options
    This product has multiple variants. The options may be chosen on the product page

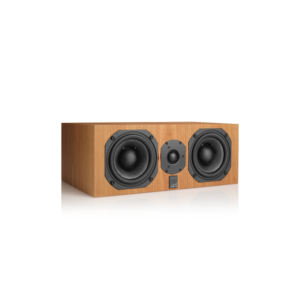

    ATC C1C Center Channel Speaker
