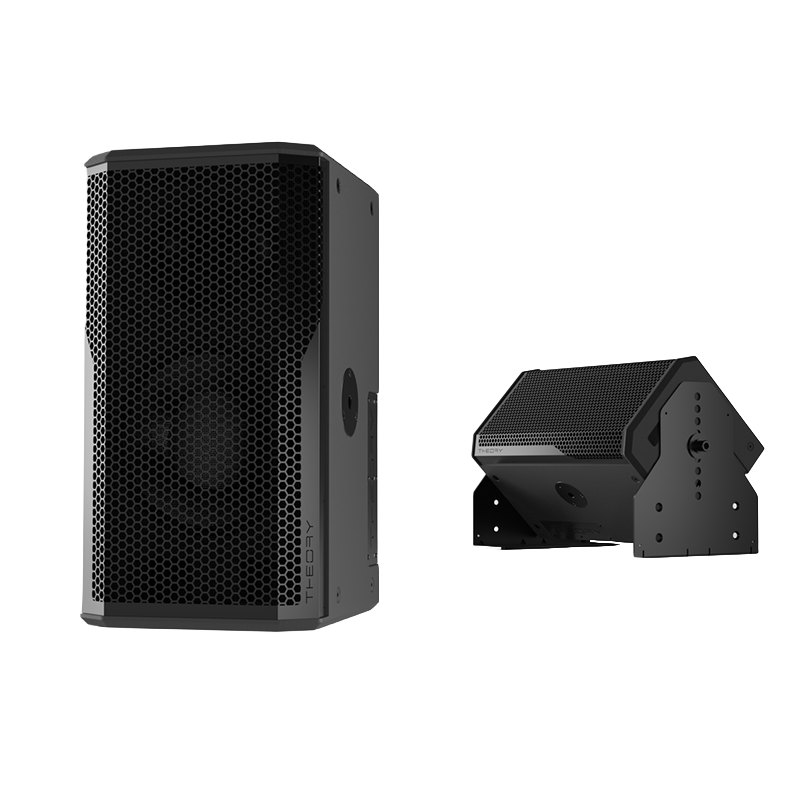

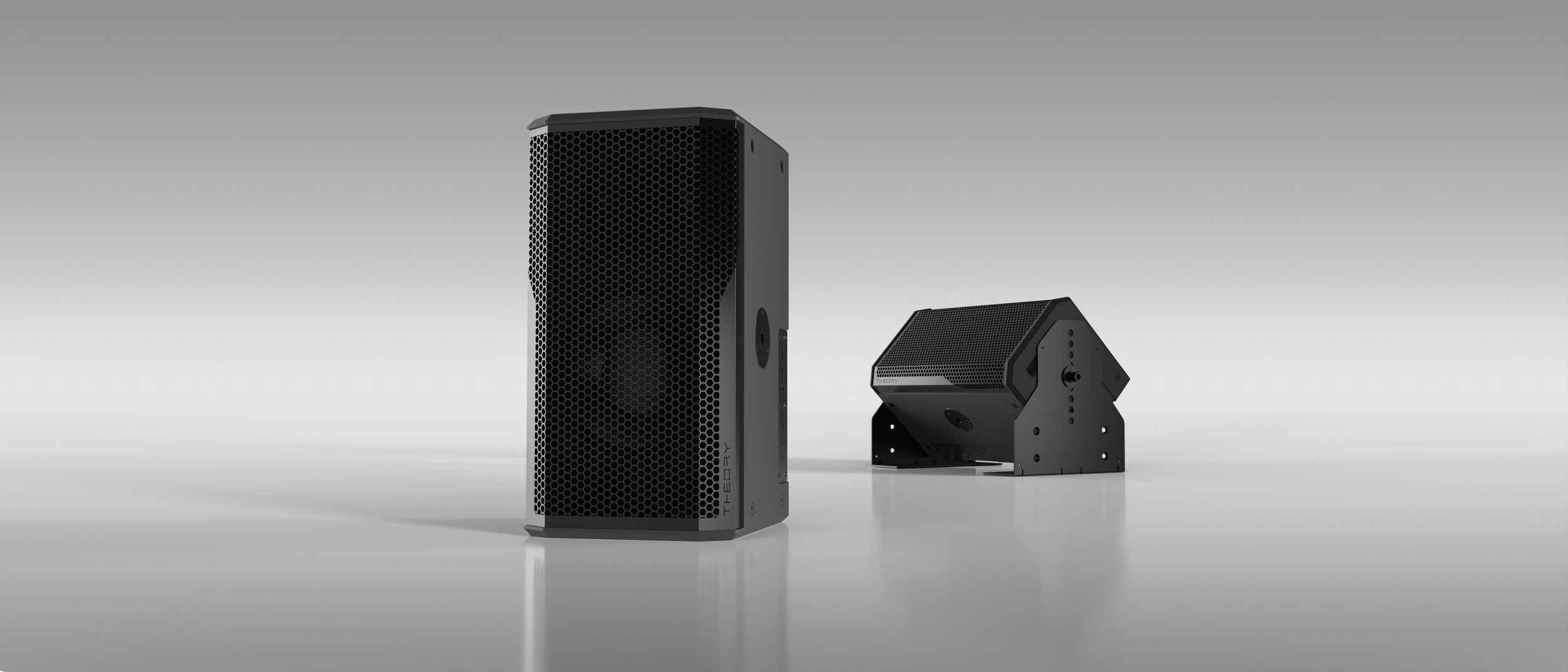

SR-112.2 12″ 2-Way Multi-Use Loudspeaker
The SR-112.2 packs a lot of horsepower into a easy-to-manage “bookshelf” size speaker package.
The SR-112.2 features an 80º x 60º elliptical horn with particularly controlled response that ensures every seat in the intended coverage area hears the same accurate sound. The sound quality is particularly “hi-fi” in its accuracy and refinement.
Surprisingly compact, the powerful, high-fidelity SR-112.2 won’t impede on aesthetics – it can be installed discreetly, and in tighter locations than other sound reinforcement style speakers of similar output capability, including use as a high-resolution stage monitor.
The SR-112.2 was thoughtfully designed from top to bottom including ergonomic handles, multiple fly points, industry-standard mount points, and pole cups.
It is available in black and white, and in passive or active versions depending on the installation need. Upgrades include custom paint matching and weatherising (of the passive version only).
Optional accessories include the Theory SplitYoke™ Multipurpose Mounting Brackets used to install the SR-112.2 easily on the wall, ceiling, floor (as a monitor), and other surfaces.
Theory’s new SR Series loudspeakers are built-to-order in the U.S. and unite lively dynamics, high maximum output level, and refined acoustic performance. Unlike most sound reinforcement speakers, and in line with the brand’s promise, Theory is raising the performance bar, not only in terms of accuracy of the reproduced sound, but also in sheer output capability.
Capable of astonishing accuracy and output, the compact SR-112.2 will have you rethinking how you design your next portable or installed sound reinforcement project.

SMOOTH. ACCURATE. EXTENDED.

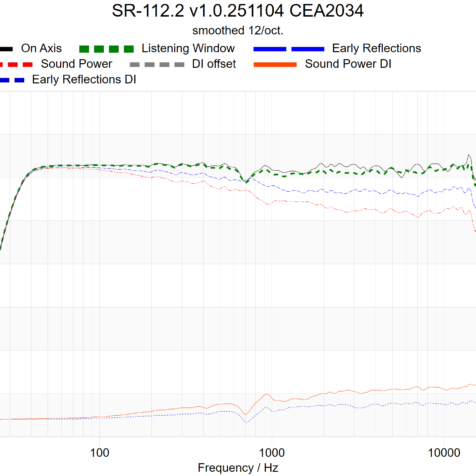

The SR-112.2 Frequency Response is remarkably flat and extended, ensuring the highest accuracy and highest-resolution available.
(CON)TOUR de FORCE.

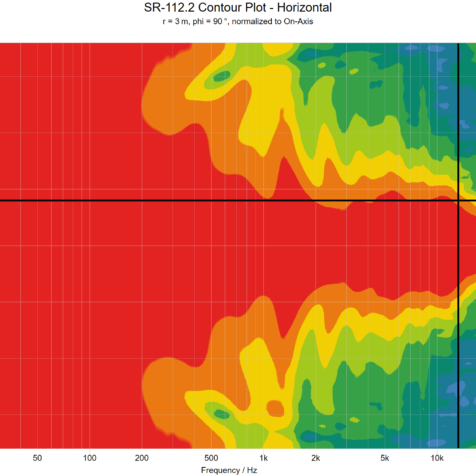

The SR-112.2’s horizontal directivity is smooth and controlled across the intended 80° coverage angle.


DO YOU SEE A PATTERN DEVELOPING?

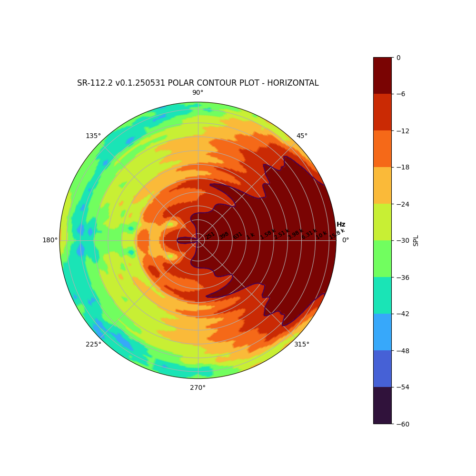

The horizontal polar contour plot shows the SR-112.2’s coverage pattern is consistent and well-controlled across frequency.
WHEN WE SAY “60 DEGREES”, WE MEAN SIXTY DEGREES .

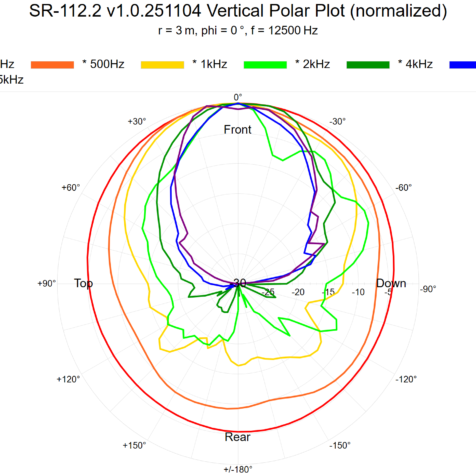

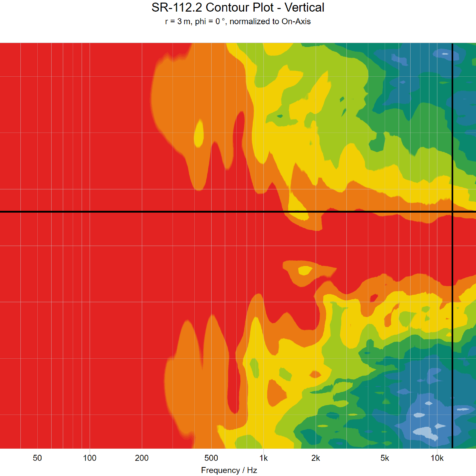

The SR-112.2’s vertical directivity is smooth and controlled across the intended 60° coverage angle.


SIXTY DEGREES OF FREEDOM.

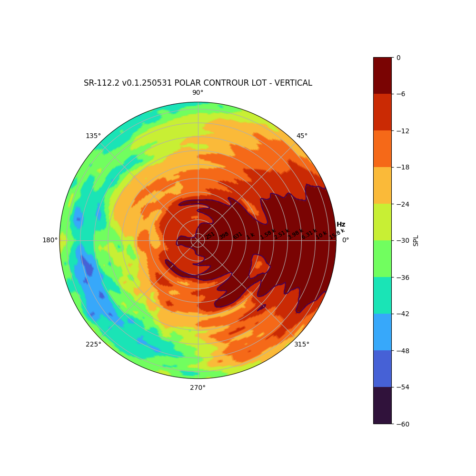

The vertical polar contour plot confirms the SR-112.2 maintains its 60° vertical coverage pattern consistently across frequency.
REVERBVERANT SPACE? WE GOT YOU.

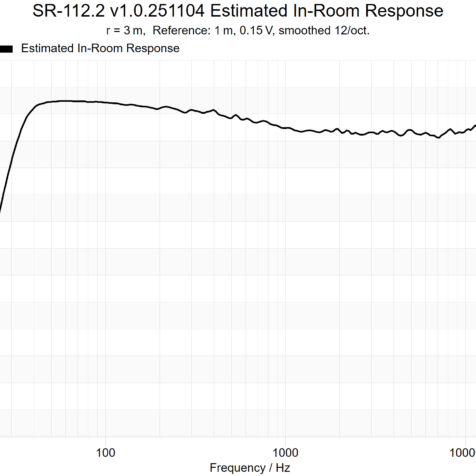

The Estimated In-Room Response shows the SR-112.2 will fill a reverberant room with coherent, accurate sound.



POLAR RESEMBLANCES.

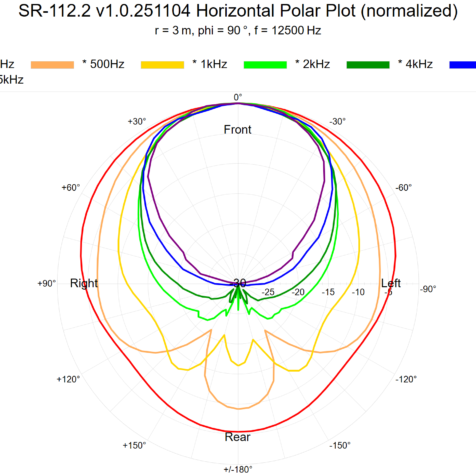

The horizontal polar plot (normalized) shows the SR-112.2’s dispersion pattern remains consistent across the audio band.
SPECIFICATIONS
- Bandwidth: 36Hz – 23kHz, -3dB; 34Hz, -6dB; 31Hz, -10dB
- Crossover: 8th order acoustic via DSP
- Coverage: 80° Horizontal x 60° Vertical
- Sensitivity: 95dB LF; 108dB HF SPL/2.83V/1m
- Power Handling (LF): 700W (AES); 1,400W (Continuous); 2,800W (Peak)
- Minimum Recommended Power: 500W rms
- Maximum Output: 124dB SPL / 1m (based on AES power rating); 130dB SPL / 1m (peak)
- Nominal Impedance: 8-ohms LF; 16-ohms HF
- Description: High-Output 12″ 2-Way Multi-Use Loudspeaker with 80° x 60° Elliptical Horn
- Operation: Bi-amp, Requires 2 Theory Loudspeaker Controller Channels
- DSP Requirements: Requires Model-Specific Theory-Certified DSP Loudspeaker Processing
- Drivers: 1 x Theory 12″ 1400W Low Frequency Driver; 1 x 1.75″ Theory Advanced Polymer Compression Driver
- Enclosure: Standard: Premium Multiply Birch Plywood with Poly Urea Paint; Weatherised: Marine-Grade Composite with Poly Urea Paint
- Terminals: Passive: Neutrik SpeakOn NL-4, 4-Position Barrier Strip; Self-Powered: Neutrik XLR Input with Loop Output
- Outdoor Capability: Indoor and Outdoor Use (with Optional Weatherised Finish)
- Mounting Points: Industry Standard Mount Points, M10 Fly Points (18), Swappable Integral 20mm Pole Cups (2) and Top Hats (2); Optional SplitYoke™ Multipurpose Mounting Brackets
- Colors: Black or White Standard; Custom Paint or Weatherizing (Optional)
- Dimensions: 671mm H x 356mm W x 381mm D
- Net Weight: 31.75kg
- Included Accessories: Black Indoor Grille, 20mm Top Hats (2), Pole Cup w/ 20mm (2), Handles (3)
- Optional Accessories: SplitYoke™ Multipurpose Mounting Brackets
