sb25 High Output Multi-Use Loudspeaker

You have never had such a compact and capable loudspeaker in your system design toolbox before.

The Theory sb25 is a wide-bandwidth, high-output multi-use loudspeaker, perfect for restaurants, bars, hotels, retail stores, houses of worship and anywhere high-resolution, high-fidelity background or foreground sound is needed.

Capable of astonishing range and output, the 3.8” deep sb25 is literally a jack of all trades and will have you rethinking how you incorporate sound in your next high-value project.

SMOOTH. ACCURATE. EXTENDED.

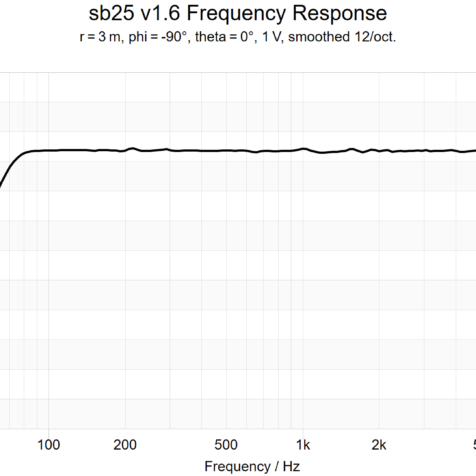

The sb25 Listening-Axis Frequency Response is remarkably flat and extended ensuring the highest accuracy and highest-resolution available.

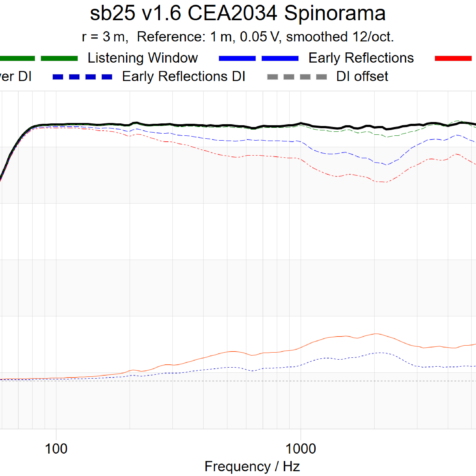

(SOUND)POWERFULLY GOOD.

The CEA2034 or “Spinorama” data encapsulates the performance of a loudspeaker in a typical room. The sb25 “Listening Window” and Sound Power responses are ruler-flat, exactly the response that delivers accurate timbre, unmatched detail and coherence to the listener’s ears.

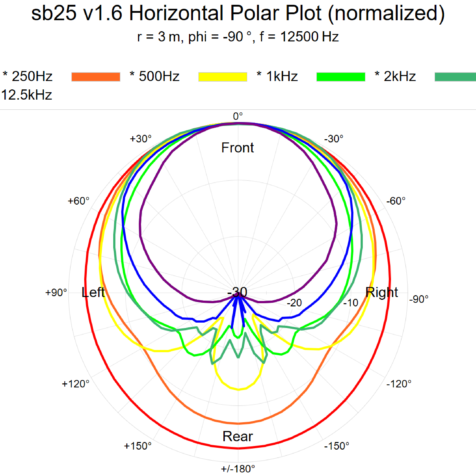

ACCURATE ALL THE WAY TO NINETY.

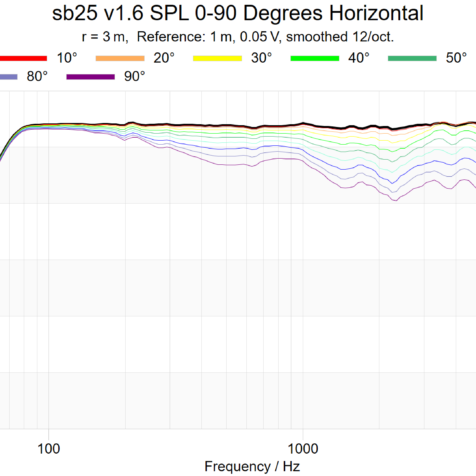

The sb25 horizontal off-axis response is predictable and smooth all the way to 90 degrees.

OVERLAPPING CIRCLES.

The sb25 offers wide dispersion all the way to the very top audio octave. Everyone hears wide-band, detailed sound.

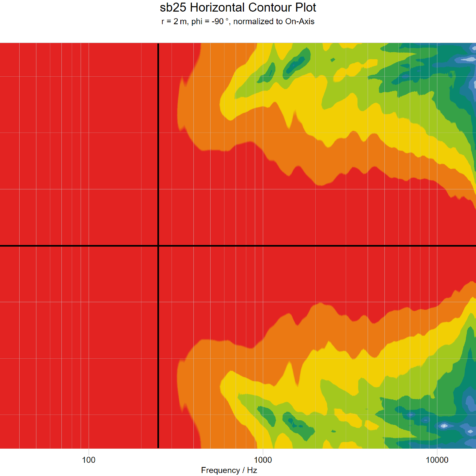

GAIN CONTROL.

The “Directivity Contour Plot” shows the speaker’s dispersion characteristics using colour to represent output magnitude. A quick inspection of the sb25’s contour plot reveals its very wide, but very uniform dispersion.

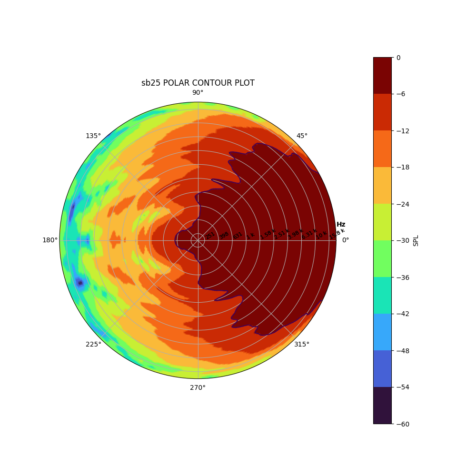

LISTEN WITH YOUR EYES.

Here is the data shown in the Directivity Contour Plot shown again on a polar map, making it easier to “see” how the sound is dispersed from the loudspeaker itself. The 0° axis represents the axis perpendicular to the speaker baffle.. The sb25 coverage is very wide and uniform, all the way to the top audio octave: >120° at -6dB even at 12kHz! Everyone in a broad area receives full-range sound with delicate, extended treble response.

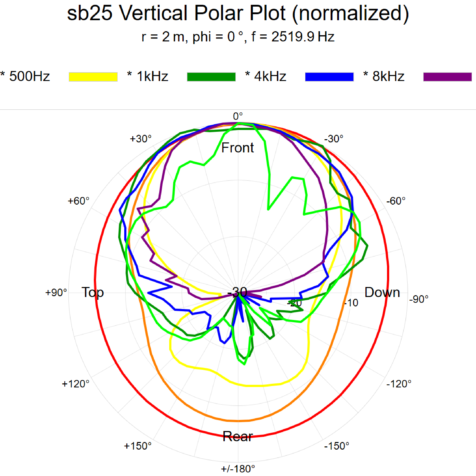

VERTICALLY UNCHALLENGED.

The sb25’s vertical directivity is wide and predictable – especially for a two-way speaker with multiple LF drive units – making it easy to get uniform, broad-band coverage in every listening location.

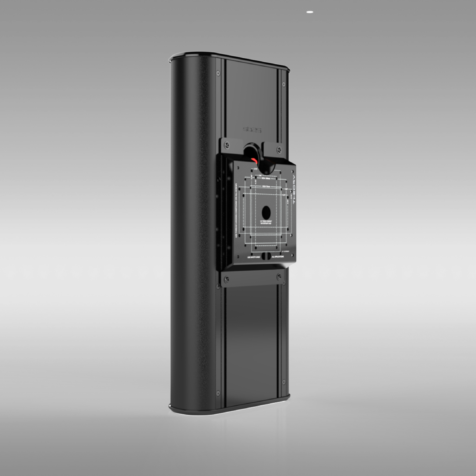

PIVOT. POLE. PAN. TILT. ADAPT.

The sb25 ships with z-clips for flat-to-wall mounting. The sb25 Universal Mount Adapter optional accessory facilitates the mounting of the sb25 in any scenario: pole from ceiling, pole from ground, onto any 75mm or 100mm VESA mount, and a number of pan-and-tilt and ball mounts for wall and ceiling mounting from Adaptive Technologies and Omnimount.

TAKE A STAND.

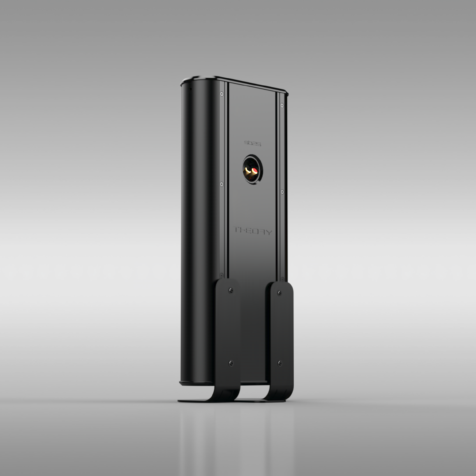

The sb-STAND stand accessory for Theory sb model soundbars and surface mount speakers allows the sb25 to stand up on a flat surfaces such as speaker stands, mixing desks, consoles, tabletops and bookshelves.

SPECIFICATIONS

Sound - Acoustics

Bandwidth: 54Hz -23kHz, -6dB; 46Hz-24kHz, -10dB
Coverage: 125 Degrees Conical; 160 Degrees Conical (-12dB @ 10kHz)
Sensitivity: 94dB (LF); 108dB (HF) SPL/2.83V/1m
Power Handling: 200W (AES); 400W (Continuous); 800W (Peak)
Minimum Recommended Power: 50W rms
Maximum Output: 117dB / 1m (based on AES power rating); 123dB SPL / 1m (peak)
Nominal Impedance: 4-ohms

Design

Description: Compact Surface Mount Multipurpose High Output Loudspeaker System
Operation: Passive, Requires 1 Theory Loudspeaker Controller Amp Channel
DSP Requirements: Requires Model-Specific Theory-Certified DSP Loudspeaker Processing
Drivers: 2 x 5″ Theory Carbon Fibre Low Frequency Drivers; 1 x 1.4″ Theory Advanced Polymer High Frequency Compression Driver
Enclosure: Powder Coated and Anodized Extruded and Machined Aluminium, Fabric Grille
Terminals: Twin Spring-Loaded Push Terminals
Outdoor Capability: Indoor Use Only
Mounting Points: Two Theory VersaSlot™ T-Slots Running Full Height with 4 x M5 Captive Nuts; Optional Universal Mount Adapter, and Table Top Stand
Colors: Black
Dimensions: 21.5″ H x 9.5″ W x 3.8″ D (546mm H x 241mm W x 97mm D)
Total Installed Depth (Z-clip Mount): 3.93″ D (100mm) Including Z-Clip Mounting Brackets
Net Weight: 23 lbs. (10.4kg)

Accessories

Included Accessories: Theory Z-Clip Mounting Brackets (male and female) for Flat Surface Mounting
Optional Accessories: sb25 Universal Mount Adapter Kit: Mount Hole Patterns: 75mm VESA Square; 100mm VESA Square; 2.0” x 4.25” 1/4”-20 Threads; 2.75” x 5.0” 1/4”-20 Threads; Mount Hole for 1/2″ Rigid Conduit Hub (1/2″ conduit mount)
Compatible Third Party Mounts: Omnimount 25.0W Wall Ball Mount; Omnimount 25.0C Ceiling Ball Mount; Adaptive Technologies Multimount MM-016-BT Wall Multi-Mount; Adaptive Technologies Multimount MM-017 Wall Pan-Tilt; Adaptive Technologies Multimount MM-018 Ceiling Pan-Tilt

sb25 DATA SHEET

sb25 3-VIEW PRODUCT DRAWING

sb25 QUICK START GUIDE
