BEAM ULTRA
The TV soundbar with Dolby Atmos
True Dolby Atmos sound and clear dialogue from a compact soundbar that fits your room and grows into a full system.
Features
Dolby Atmos • Voice enabled • WiFi • Bluetooth® • Works with TV remote • Trueplay™ • Speech Enhancement • Night Sound • HDMI® eARC • Apple AirPlay 2 • Touch controls • Recycled materials

Looks like Beam. Sounds entirely new.
Movies sound wider. Dialogue sounds clearer. Bass hits harder. And the sound comes from every direction. It all fits into a design nearly the same size as Beam.
The whole room, filled
With Dolby Atmos, you get true 7.1.2 surround sound. Cars move across the room. Rain falls from overhead. Whispers land beside you. Every moment feels bigger and more realistic.
Soundbar today. Whole system whenever.
Add a sub for extra oomph. Add surrounds to get lost in every scene. Put Sonos in every room and fill your home with music.

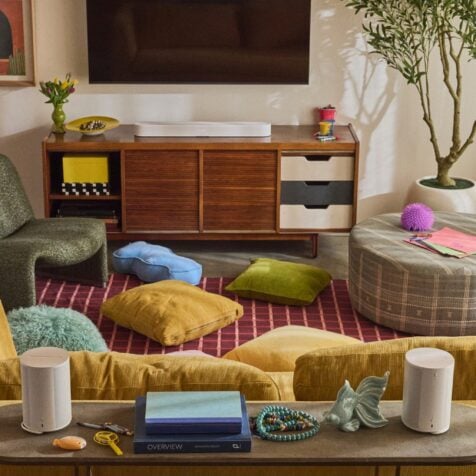

Surrounds that get around
Use a pair of Sonos Plays or Move 2s as rear surrounds. When you’re done watching, they’re portable speakers for the rest of the house.
Surround sound for you. Silence for them.
Send TV audio to your Sonos headphones – Dolby Atmos and all. You get to watch at full volume, and no one else has to hear a thing.
Won’t steal the show

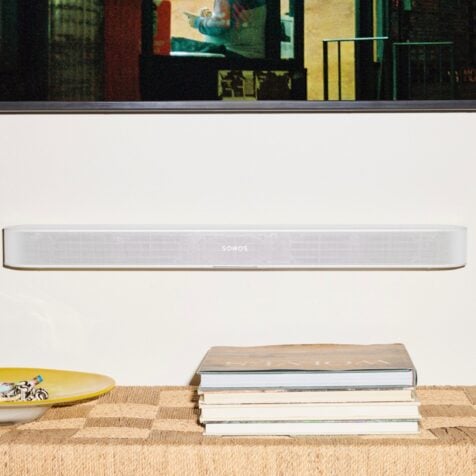

Slim enough to sit under your TV and designed to disappear. Place it on furniture or mount it with the Beam Ultra Wall Mount.

Sound that reads the room
Dialogue as clear as you want
AI Speech Enhancement makes dialogue clearer when the action gets loud or the room gets noisy. Adjust the level in the Sonos app.
Hear more at low volumes
Watch without waking the house. Night Sound reduces the intensity of loud sounds and enhances quieter details.

Tuned to your room
Trueplay™ analyses the acoustics of your room and tunes Beam Ultra accordingly. Open floor plan or cosy space – it sounds just right.
Connects in minutes
Connect Beam Ultra to your TV, and the Sonos app guides you through setup. Your existing remote works automatically.

Control with a click, tap, or your voice

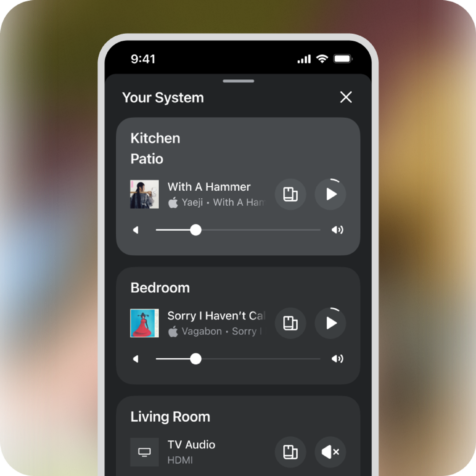

Sonos app
Find all your music and settings in one place.

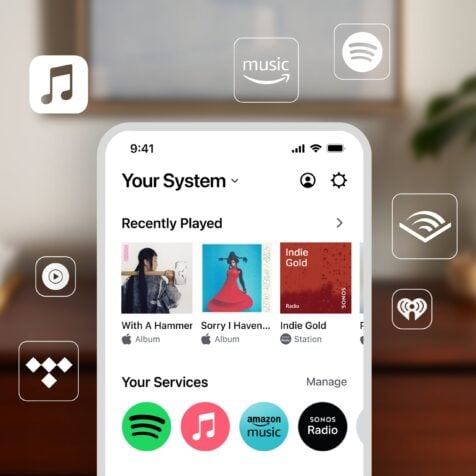

Your favourite apps
Control Sonos directly from Spotify, TIDAL, and more.

Also works with: Sonos Voice Control (play music and control your system without lifting a finger) • Bluetooth (pair a device with the press of a button) • Apple AirPlay 2 (stream from your Apple device, ask Siri to play Apple Music) • TV remote (works with the remote you already have) • Touch controls (tap to play, pause, and skip – slide to adjust the volume)
Made with more than sound in mind
Recycled materials. Plastic-free packaging. Every single detail is considered, not just the ones you hear.

SPECIFICATIONS

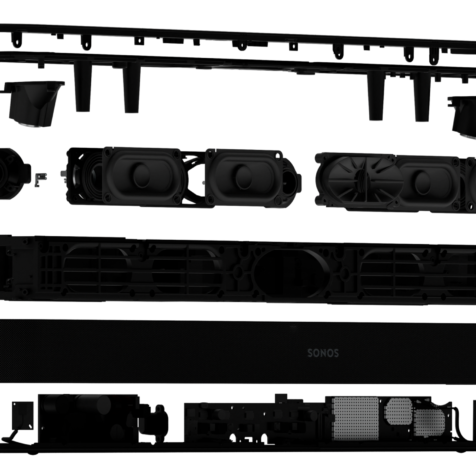

- Amplifiers: Nine Class-D digital amplifiers tuned to the soundbar’s acoustic architecture
- Tweeters: Five tweeters faithfully reproduce high and mid-range frequencies. The forward-firing mid tweeter provides a smooth centre image. Two side-firing horn-loaded mid tweeters create stereo separation. Two upward-firing tweeters loaded into a directional horn support spatial audio with Dolby Atmos
- Woofers: Four low-profile woofers deliver powerful bass
- Microphones: Far-field microphone array uses beamforming and multichannel echo cancellation for voice control, Trueplay tuning, and connecting Sonos Play or Move 2 surrounds. Toggle off the mic switch to disconnect
- Adjustable EQ: Use the Sonos app to adjust bass, treble, and loudness
- Trueplay: Measures the acoustics of the room and fine-tunes the EQ. Compatible with iOS and Android devices
- AI Speech Enhancement: AI detects human voices to improve dialogue clarity. Choose from four levels of Speech Enhancement in the Sonos app
- Night Sound: Reduces the intensity of loud sounds and enhances quieter sounds. Enable in the Sonos app
- Home Cinema Audio Formats: Dolby Atmos,* Dolby Atmos via Dolby Digital Plus, Stereo PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD,* Dolby Atmos via Dolby TrueHD,* Multichannel PCM,* Dolby Multichannel PCM* and DTS Digital Surround.** The Sonos app’s Now Playing screen displays the audio format being decoded. *HDMI eARC connection required. **This is not an indication of a licensed decoder
- Dolby Atmos Music: Dedicated upward-firing drivers support Dolby Atmos Music for spatial audio playback
- TV Audio Swap: Swap TV audio between the soundbar and Sonos headphones
- Simulated Overhead Sound: Optimises overhead sound effects for when the top of the product is obstructed. Select your setup in the Sonos app

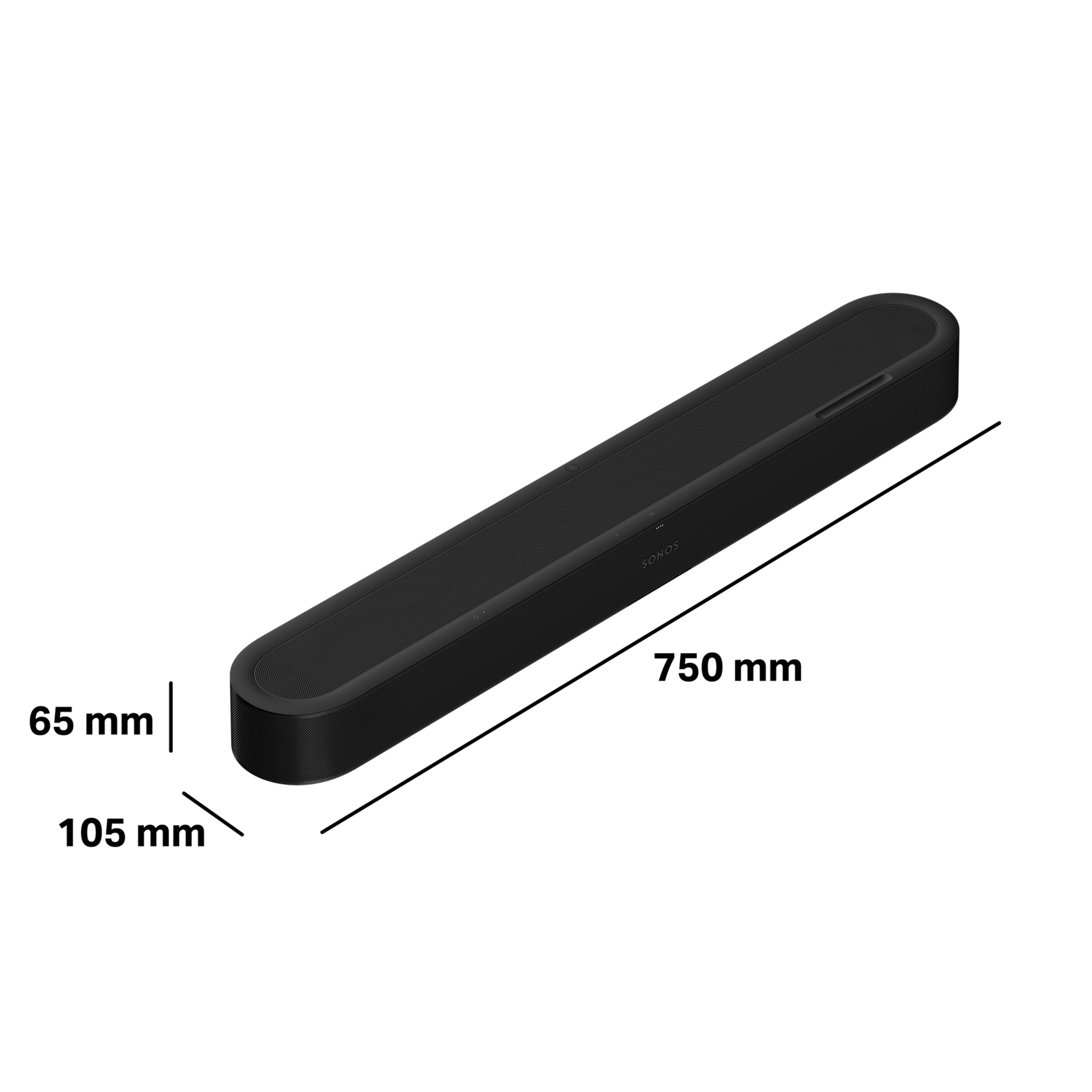

- Dimensions: Height 63 mm, Width 750 mm, Depth 105 mm
- Weight: 2.88 kg

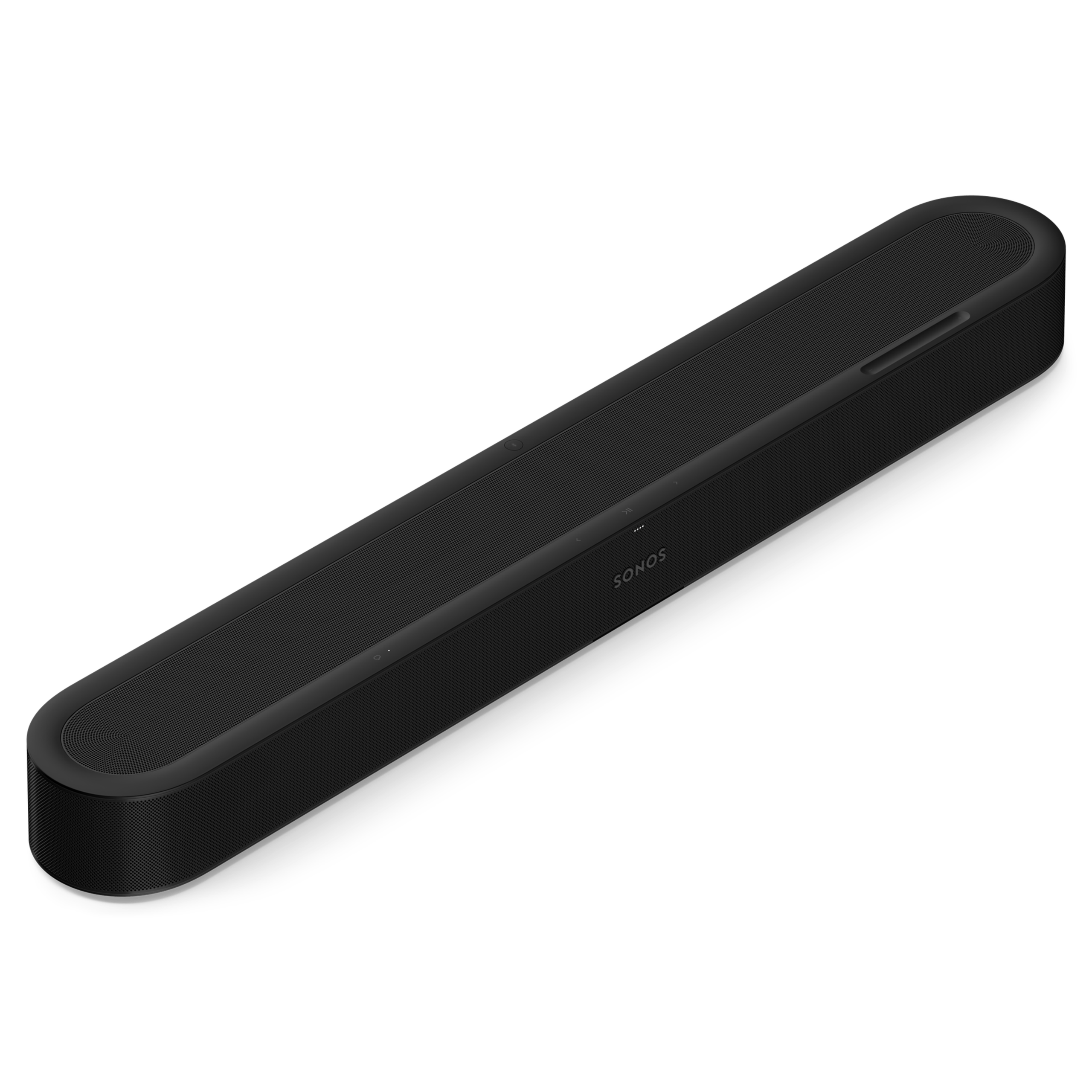

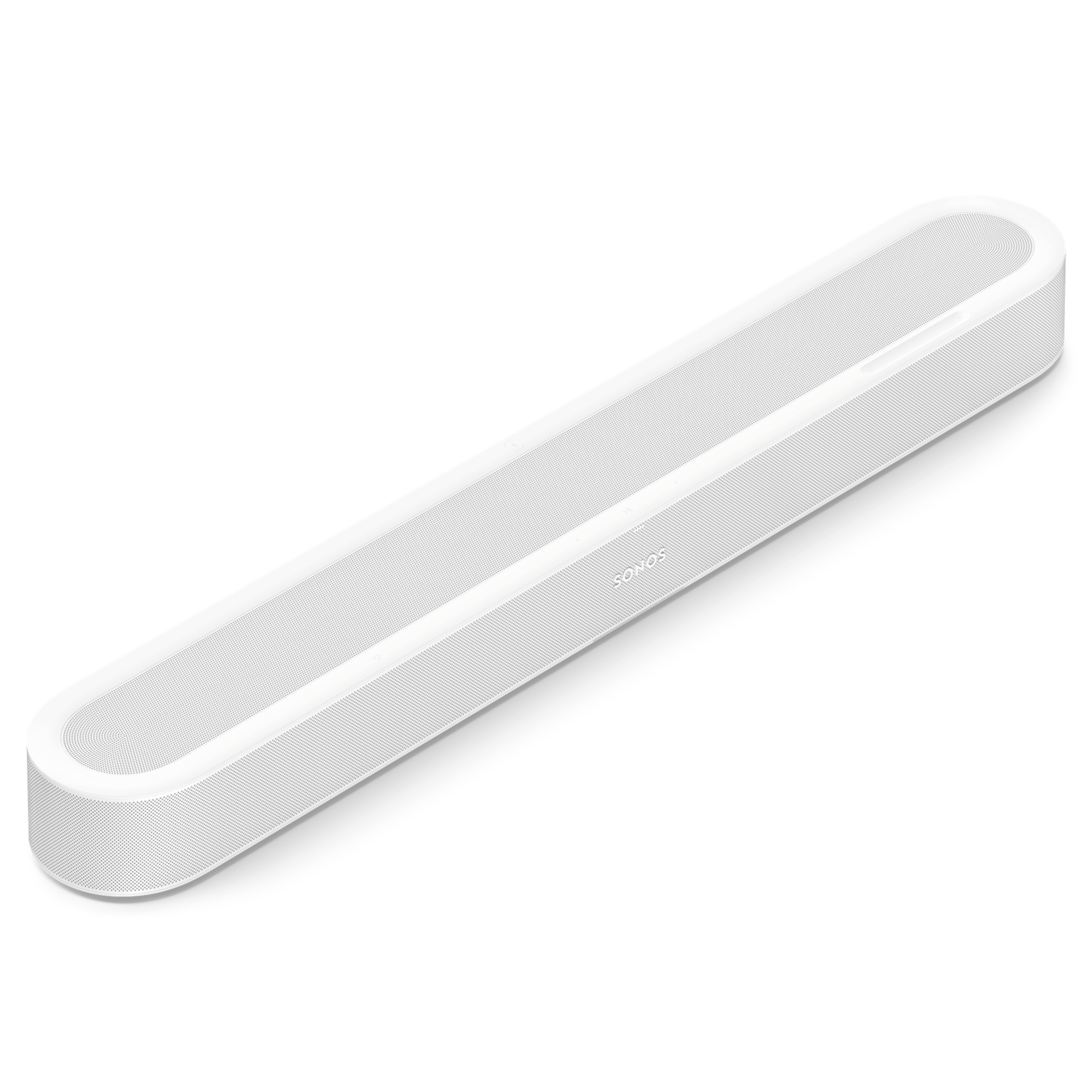

- Colours: Black, White
- Finish: Matte
- Mounting: M5 x 0.8mm thread pitch L6.5mm

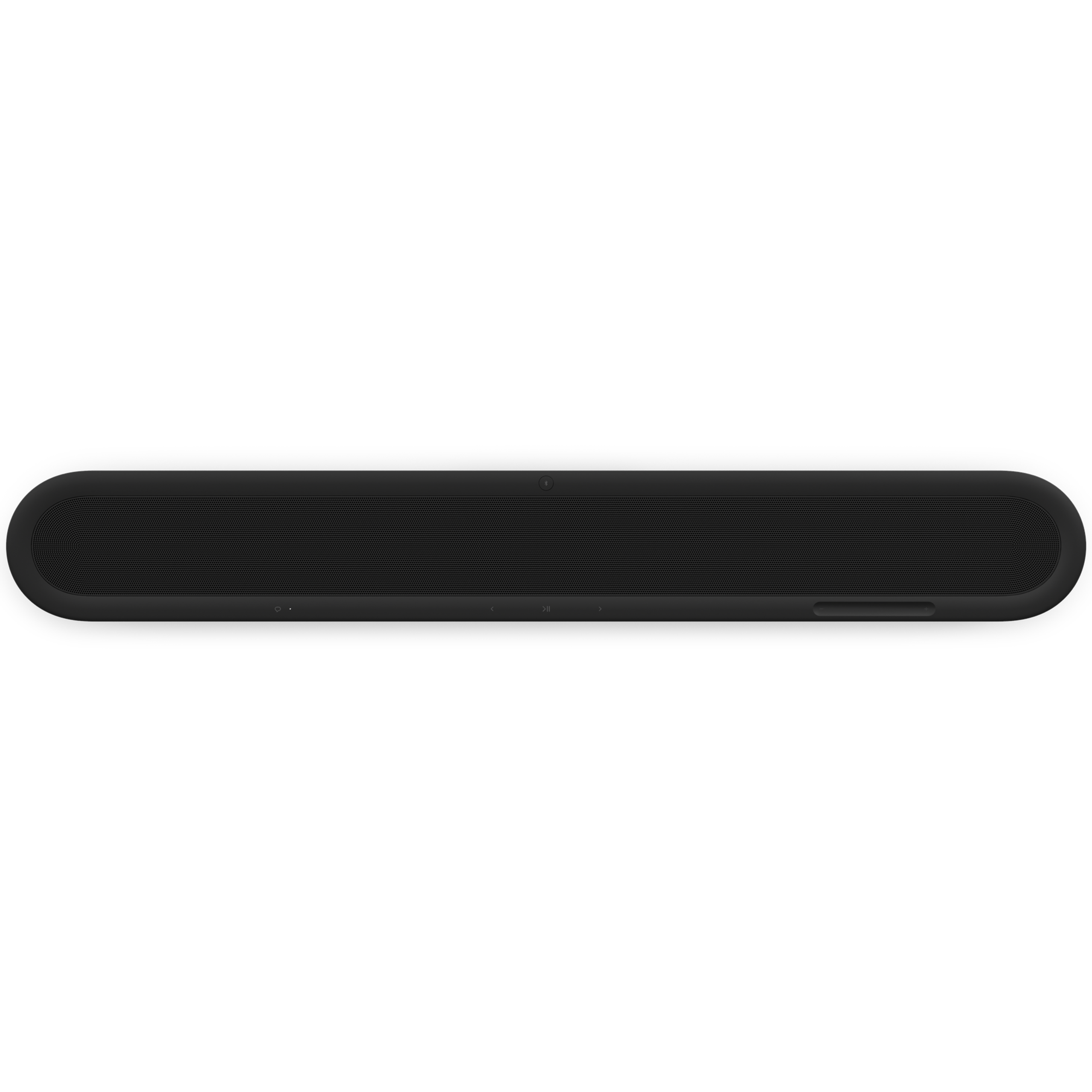

- LEDs: Lights on the product indicate connection, microphone activity, and mute status
- Touch: Use the capacitive touch controls to play, pause, skip, replay, adjust the volume, turn off voice assistant, and group or ungroup Sonos products
- Bluetooth Button: Press to pair a Bluetooth device

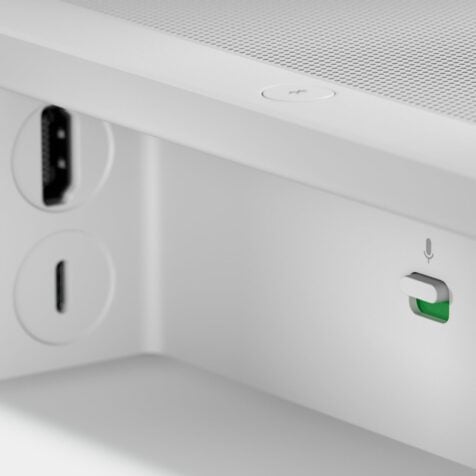

- Mic Switch: Toggle off the switch on the back of the product to disconnect power to the microphones
- Wireless Networking Interface: Compatible with WiFi 6. Connect to Wi-Fi with any 802.11a/b/g/n/ac/ax 2.4 GHz/5 GHz broadcast-capable router
- HDMI eARC: Connect to your TV’s HDMI eARC/ARC port with the included HDMI cable. Optical adapter sold separately
- Bluetooth: Bluetooth 5.3 supports audio streaming from any Bluetooth-enabled device
- Voltage: 100-240V 50/60Hz internal power supply
- CPU: Quad Core 4xA55 1.9GHz
- Voice: Works with Sonos Voice Control
- Apple AirPlay 2: Works with AirPlay 2 on Apple devices iOS 11.4 and higher
- USB-C: Connect an audio source using a 3.5 mm auxiliary cable and the Sonos Line-In Adapter. Connect your router with an Ethernet cable and the Sonos Combo Adapter (all accessories sold separately)
- TV Compatibility: Not compatible with CCFL-backlit TVs (manufactured 2004-2012)

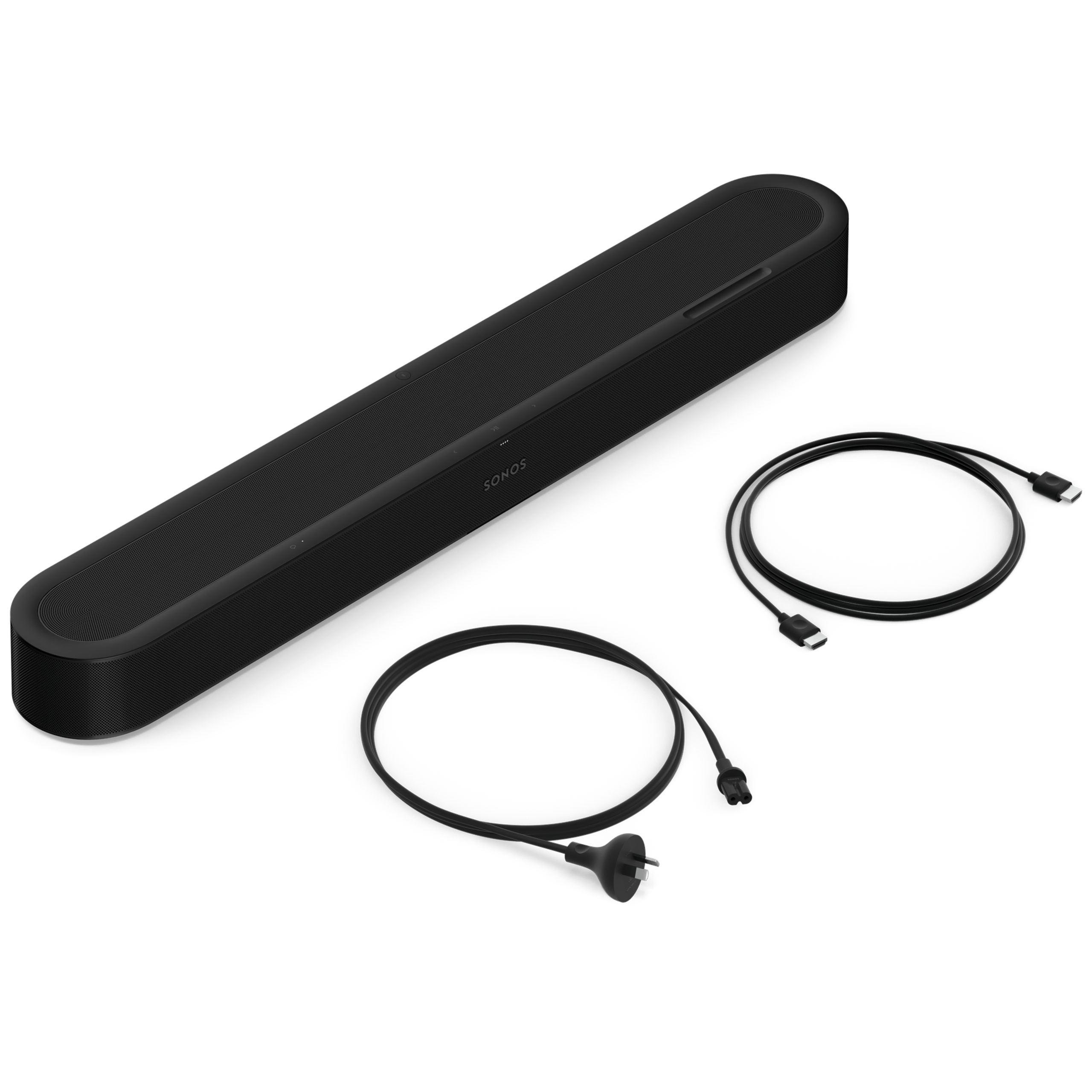

- Sonos Beam Ultra
- Power Cable: Length 6 ft (2 m)
- HDMI Cable: Length 4.9 ft (1.5 m)
- Documentation: Set-up guide and legal/warranty information
- WiFi: Internet connection
- Power Source: Nearby electrical outlet
- Sonos app: The latest generation of the Sonos app running on a compatible device
