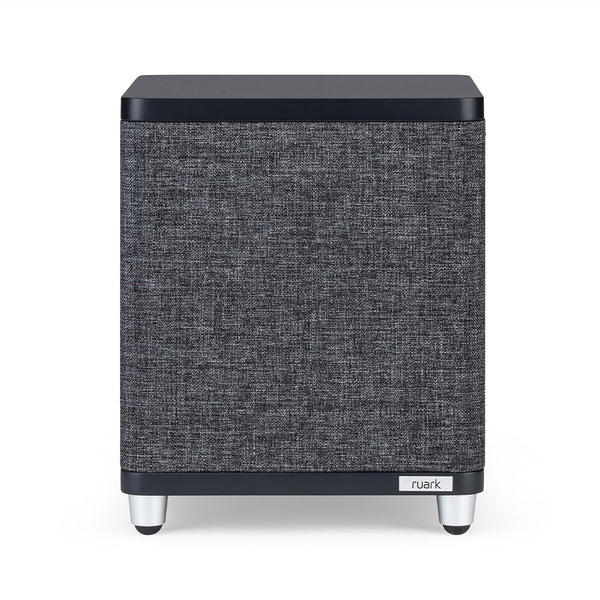

The Foundation of Music
Bass is the foundation of music. It is the element that makes you feel the rhythm, the groove, and the emotion of a song. Bass can make your heart beat faster, your body move, and your mood change. Whether you listen to rock, pop, hip hop, jazz, or classical music, clean and extended bass adds a new dimension to musical enjoyment and that’s why we’ve developed RS1.
Controlled Delivery
The enjoyment of music is at the core of our designs. RS1 is not about thunderous, overblown bass, but about deep, controlled, and most importantly a musical sound. To achieve this, the enclosure and custom drivers have been optimised and tuned to deliver natural extended bass, that is fast and rhythmic.
Driving the system is a powerful 100-watt Class D amplifier. This new generation amplifier keeps firm control of the bass driver at all volume levels with headroom to spare, although soft clipping is built in should the system ever be overloaded to avoid damage. Setup and adjustment is straightforward and with auto-on/standby, RS1 will automatically turn itself on and off as required.
Developed Through Demand
Our reason for the development of RS1, was due to the demand from customers requesting a companion sub for our award winning MR1 Bluetooth speakers. We also saw that there was a need for a subwoofer with style. Where many subs look unattractive in a domestic environment, the tailored grille and hand-crafted wood panels of RS1 means it fits seamlessly with other furnishings, making it a product that customers will be proud to display in their homes.
Enhancing Your Experience
RS1 delivers deep bass that smaller speakers are unable to, giving a more satisfying and realistic audio experience. It’s a perfect addition to our MR1 and R3S models or indeed any other system where a subwoofer with style and good sound is required, providing the joy of bass in every note and song.
Features at a Glance
- Frequency response 25Hz – 200Hz
- Cabinet Tuned passive radiator enclosure
- Drivers 170mm treated fibre long-throw active driver and 170mm passive radiator
- Amplifier 100W RMS Class D with soft clipping filter
- Controls Adjustable crossover 50–180Hz, input/volume level control and 180 degree phase switch
- Auto on Automatically turns on and sleeps after 15 minutes when no signal is detected
- Input Sub-input via Mono RCA input (up to 2.3Vrms)
- Finish Lead Grey cabinet cloth with Rich Walnut top and bottom panels
- Product compatibility RS1 is compatible with our MR1, R3S and R410 models or any other active speaker or amplifier with subwoofer or pre-out phono connectors
- Box contains RS1 subwoofer, mains lead, 1.5m RCA connector lead and quick start guide
- Power consumption 0.5W standby, 2.0W idle
- AC power input 100-240V, 50-60Hz
- Product dimensions H300 × W250 × D265mm (inc. feet and controls)
- Product weight 6.7kg
-
Audio
- Frequency response 35Hz – 22kHz
- Speaker units
2 × Ruark 20mm silk dome tweeters,
2 × Ruark 100mm NS+ bass-mid units - Amplifier 120W RMS Class D amplifier (0.02% THD @ 30W/CH)
- Enhancements
Adjustable bass and treble settings
Stereo+ 3D audio enhancement
Adaptive EQ provides ideal sound according to volume - Cabinet type Tuned dual bass reflex enclosure
- Digital to Analogue Burr-Brown 32-bit 192kHz DAC
- Analogue to Digital Burr-Brown 32-bit 192kHz ADC
-
Features
- Controller Intuitive RotoDial control system
- Remote Control RotoDial BT LE rechargeable remote
- Display Hi-Res auto dimming 4″ colour TFT display
- Presets 20 Global presets
- App Control Via Spotify, BBC Sounds etc.
- Auto-Standby Adjustable auto-off power saving mode
- Adjustable Input Levels Adjustable line-in and optical input levels
- USB Charge Port USB-C 5V 1A (5W)
- DST Automatic DST adjustment
- Software Updates Via over-the-air or USB if required
- User Interface Languages Multilingual
-
Connectivity
- Radio Internet Radio DAB / DAB+ / FM with RDS (87.5-108MHz)
- Multiroom capable Via Apple AirPlay and Google Cast
- Wi-Fi 802.11 a/b/g/n/ac/ax, WPS2, WEP, WPA, WPA2
- Streaming Apple AirPlay and Google Chromecast built-in
- Built-in music services Spotify Connect, TIDAL Connect
- Supported music services Amazon Music, BBC Sounds, Deezer, Qobuz and many more
- Bluetooth 5.1, aptX HD, SBC, AAC, BLE, A2DP
- Ethernet RJ45 connector 10/100 Mbps
- DLNA UPnP™ DLNA media server compatible
- CD player CD playback via external USB CD drive (optional)
- HDMI ARC and eARC
- Line-input Stereo RCA input (up to 2.3Vrms)
- Moving Magnet RIAA phono input Turntable input with MM phono gain stage
- Optical input TOSLINK input up to 24-bit 192kHz
- Subwoofer-output via mono RCA
- USB 2.0 type C FAT32 playback port
- Aerial 75Ω F-type aerial connector
-
Supported Audio Formats
- MP3 up to 48kHz 320kbps
- AAC formats up to 96kHz 320kbps
- FLAC up to 24-bit 192kHz
- WAV up to 24-bit 192kHz
- WMA formats up to 48kHz 320kbps
- WMA 9 up to 48kHz 256kbps
-
General Specifications
- Standard finishes Fused Walnut Veneer or Soft Grey Lacquer
- Product dimensions H150 × W560 × D290mm
- Product weight 9.5kg
- Product power input 90-240VAC, 50-60Hz, 2.5A
- Power consumption <2W standby. 5-10W typical
- Gift Box Content
2m mains power cable,
Quick start guide,
RotoDial BT LE rechargeable remote,
Telescopic aerial and spanner
