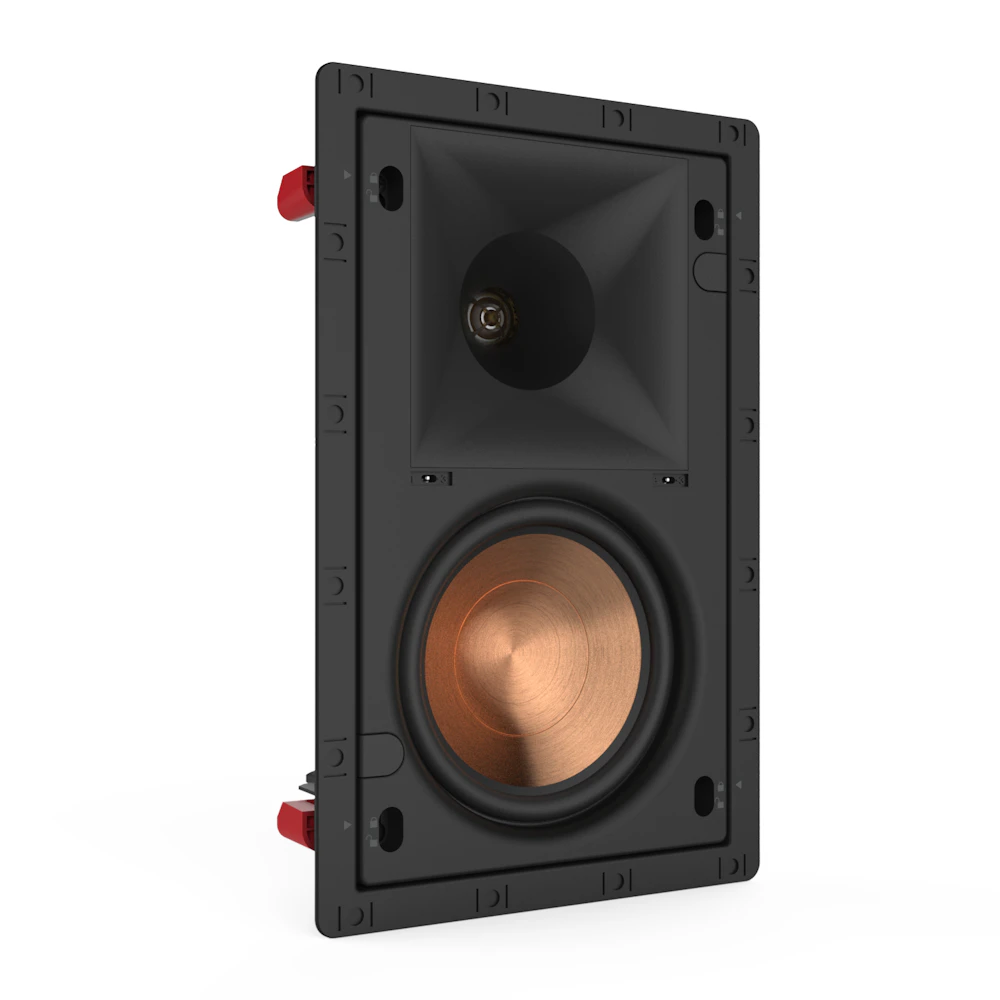

PRO-160RPW
In-Wall Speaker
With a 6.5” Cerametallic woofer and a 1” Titanium Dome Tweeter mated to a composite coated Hybrid Cross Section Tractrix® horn, the PRO-160RPW brings dynamic, powerful, detailed Reference Premiere sound to your distributed audio or home theatre system.
SPECIFICATIONS
- Frequency Range : 56Hz – 23kHz +/- 3dB
- High Frequency Driver : 1″ (2.54cm) Titanium Dome Tweeter mated to a composite coated Hybrid Cross Section Tractrix® Horn
- Low Frequency Driver : 6.5″ (16.51cm) Cerametallic Woofer
- Sensitivity : 94 dB @ 2.83V / 1m
- Coverage Angle : 90° x 90°
- Power Handling : 50W RMS / 200W Peak
- Impedance : 8 Ohm Compatible
- Enclosure Type : ABS/Infinite Baffle
- Finish : Black Baffle/Frame, White Paintable Grille
- Product Dimensions : 9.0” H x 14.1” W x 3.9” D (22.8cm H x 35.8cm W x 9.8cm D)
- Mounting Depth : 3.78” (9.6cm)
- Cutout Dimensions : 13” H X 8” W (33.0cm H X 20.3cm W)
- Product Weight : 7.2lbs (3.25kg)
- Included : Grille, Paint Shield
- Installation Kit : IK-650-W (Sold Separately)
- Fire Rated Enclosure : ME-650-W (Sold Separately)
- Built From : 2017
DOCUMENTS
Spec Sheet
For more technical detail, download the Spec Sheet here: PRO 160 RPW Spec Sheet.
