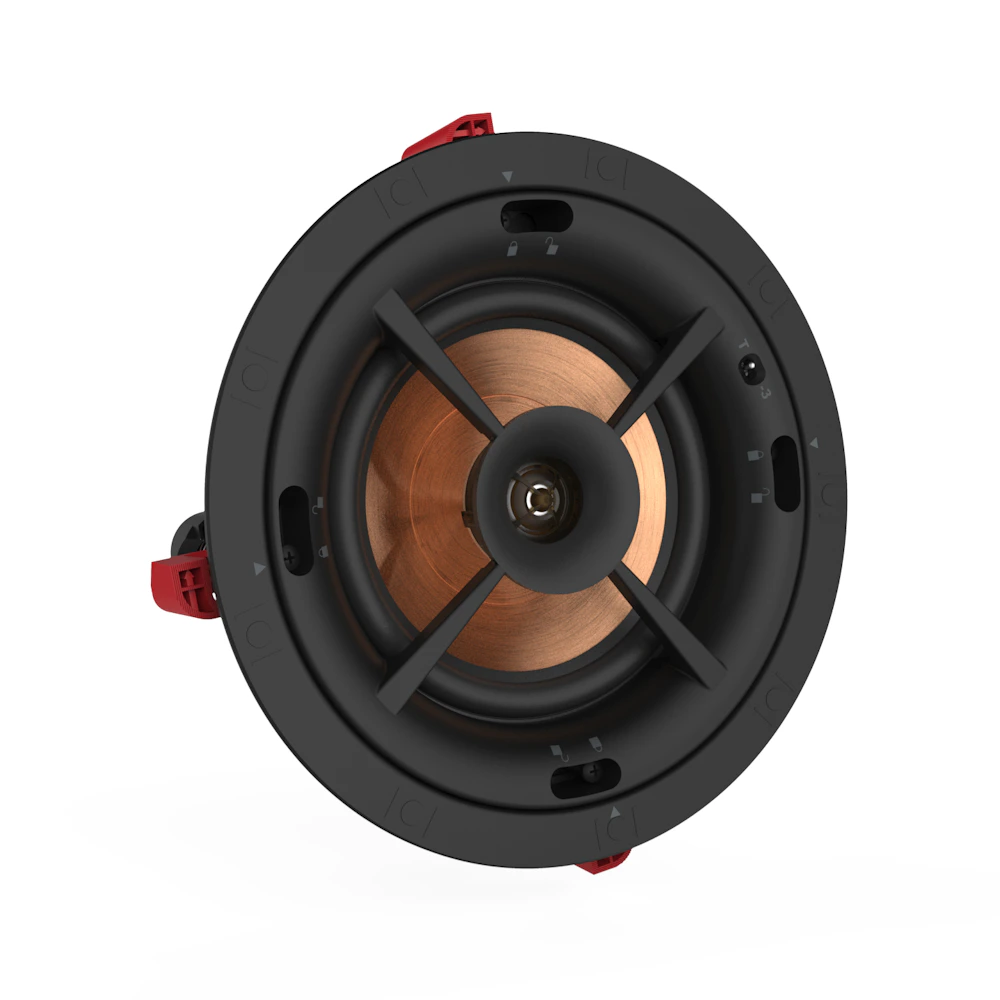

PRO-160RPC
In-Ceiling Speaker
With a 6.5” Cerametallic woofer and a 1” Titanium Dome Tweeter mated to a composite coated round Tractrix® horn, the PRO-160RPC brings dynamic, powerful, detailed Reference Premiere sound to your distributed audio or home theatre system.
SPECIFICATIONS
- Frequency Response : 56Hz – 23kHz +/- 3dB
- High Frequency Driver : 1″ (2.54cm) Titanium Dome Tweeter mated to a composite coated round Tractrix® Horn
- Low Frequency Driver : 6.5″ (16.51cm) Cerametallic Woofer
- Sensitivity : 95 dB @ 2.83V / 1m
- Coverage Angle : 100°
- Power Handling : 50W RMS / 200W Peak
- Impedance : 8 Ohm Compatible
- Enclosure Type : ABS/Infinite Baffle
- Finish : Black Baffle/Frame, White Paintable Grille
- Product Dimensions : 9.2” W x 9.2” H x 4.5” D (23.3cm H x 23.3cm W x 11.3cm D)
- Mounting Depth : 4.34” (11.03cm)
- Cutout Dimensions : 8.3” (21.1cm)
- Product Weight : 7 lbs (3.18kg)
- Included : Round Grille, Square Grille, Paint Shield
- Installation Kit : IK-650-C (Sold Separately)
- Built From : 2017
DOCUMENTS
Spec Sheet
For more technical detail, download the Spec Sheet here: PRO 160 RPC Spec Sheet v03.
