DS-250W LCR
With the Klipsch Signature Horn-Loaded performance at an incredible value, the DS-250W LCR features dual 5.25” Polypropylene woofer and a 1” Silk Dome tweeter mated to a round Tractrix® horn for dynamic acoustic performance. Utilizing the Sky Hook® patented Cinch by Swarm Installation System, your install time is reduced by 75%.
SPECIFICATIONS
- Frequency Range : 73Hz – 20kHz +/- 3dB
- High Frequency Driver : 1″ (2.54cm) Silk Dome Tweeter mated to a 90°x90° Tractrix® Horn
- Low Frequency Driver : Dual 5.25″ (13.34cm) Polypropylene Woofers
- Sensitivity : 92 dB @ 2.83V / 1m
- Coverage Angle : 100°
- Power Handling : 60W RMS / 240W Peak
- Impedance : 8 Ohm Compatible
- Enclosure Type : ABS/Infinite Baffle

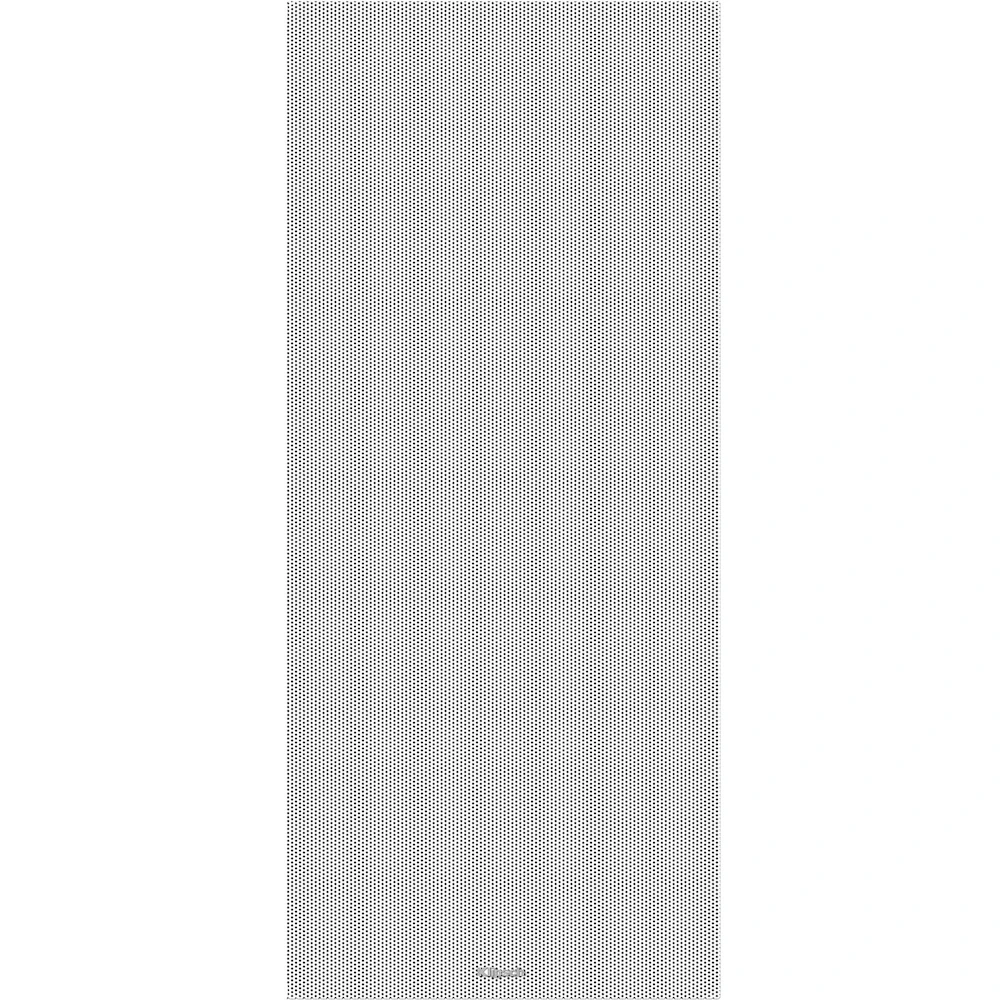

- Finish : Black Baffle/Frame, White Paintable Grille
- Product Dimensions : 7.5” W x 17.4” H x 3.8” D (19.1cm H x 44.2cm W x 9.6cm D)
- Mounting Depth : 3.78” (9.35cm)
- Cutout Dimensions : 16.5” H X 6.5” W (41.9cm H X 16.5cm W)
- Product Weight : 6.5lbs (2.95kg)
- Included : Flat Magnetic Grille
- Installation Kit : IK-502-W II (Sold Separately)
- Built From : 2017
DOCUMENTS
Spec Sheet
For more technical detail, download the Spec Sheet here: DS 250 W LCR Spec Sheet.
Product Manual
Download the Product Manual for DS-250W LCR here: Designer Series Manual v02 1.
