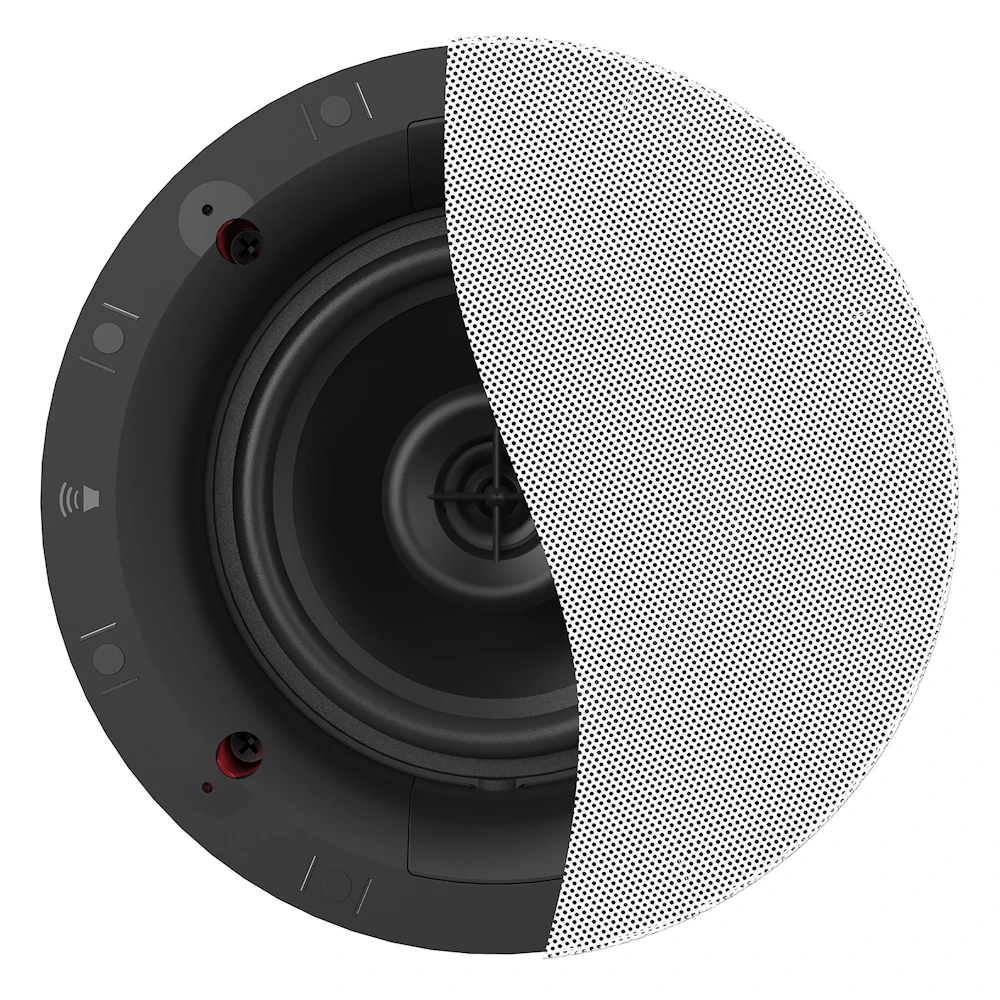

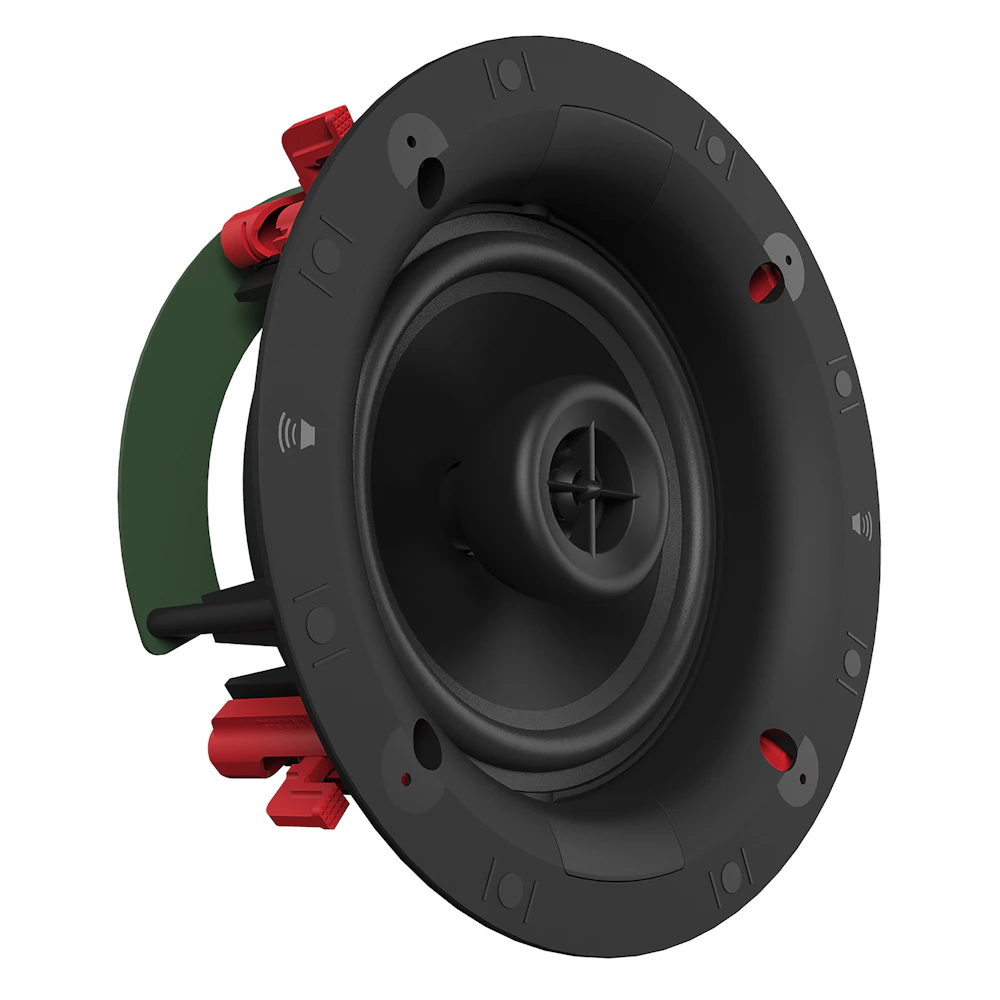

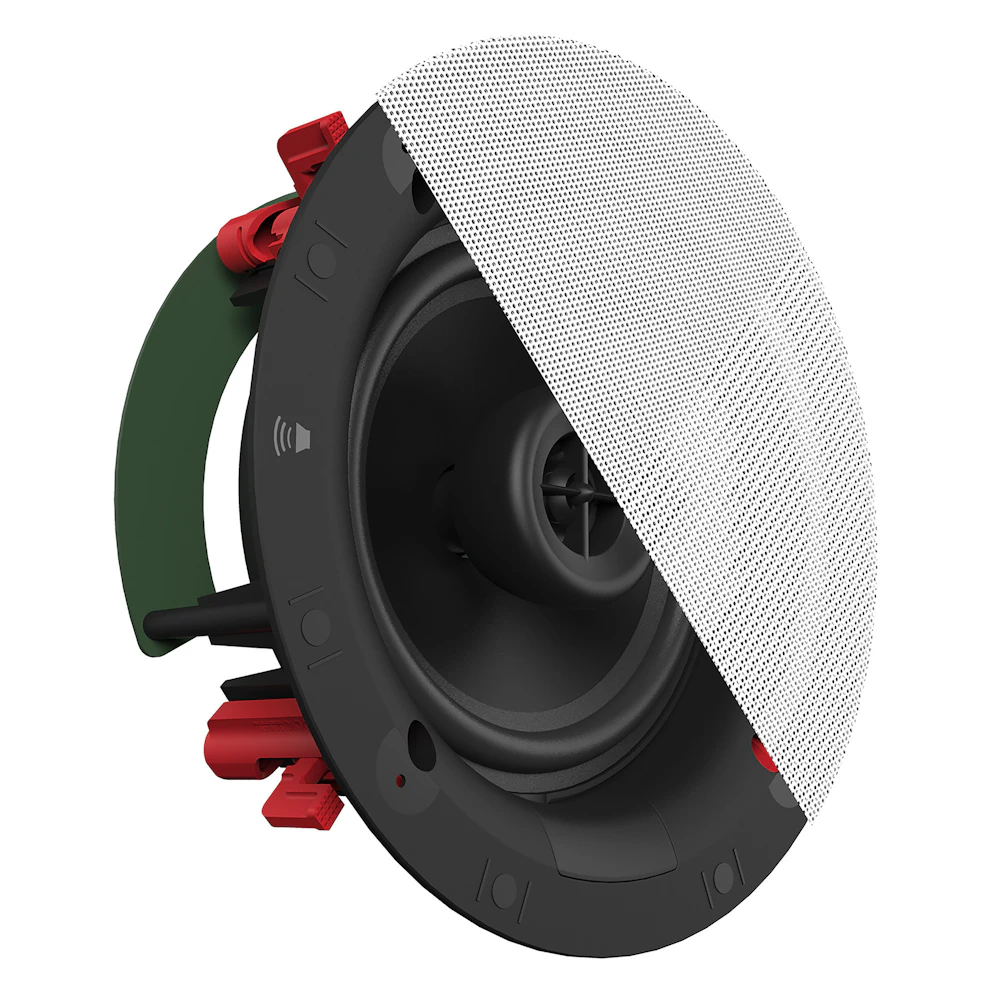

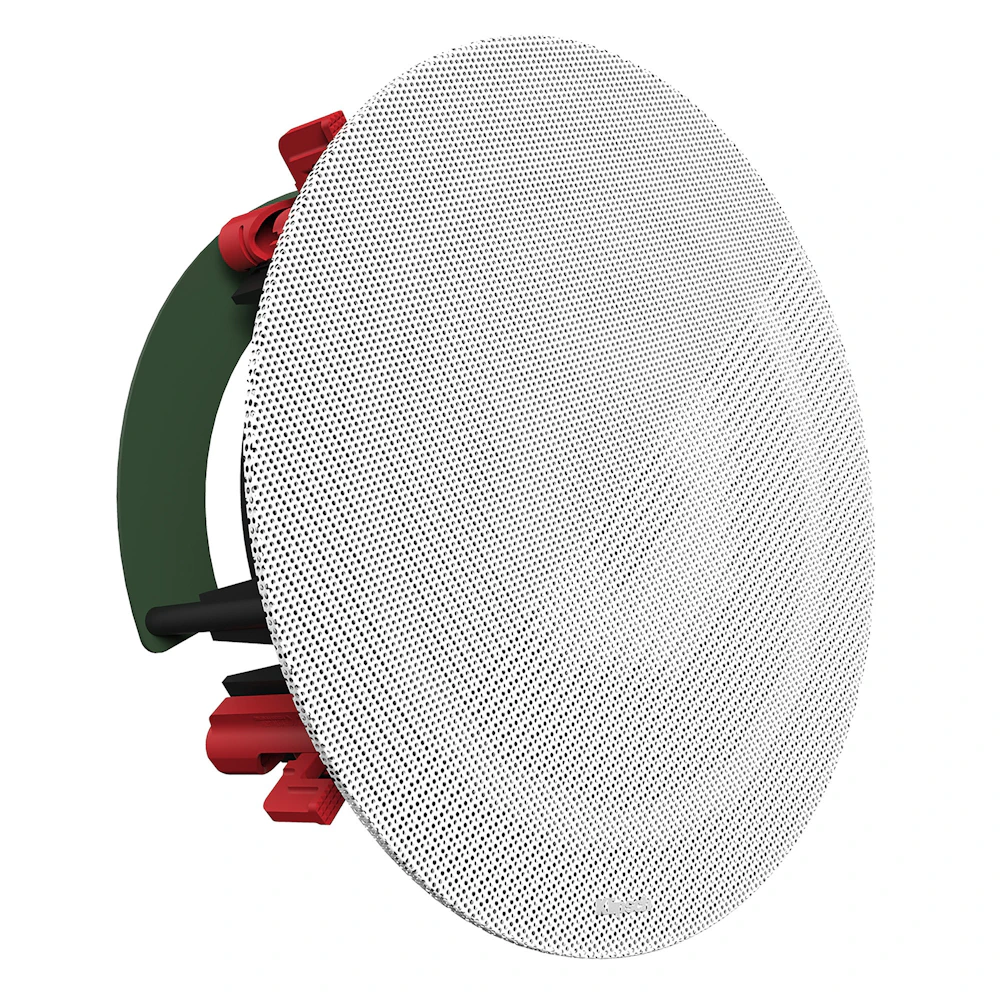

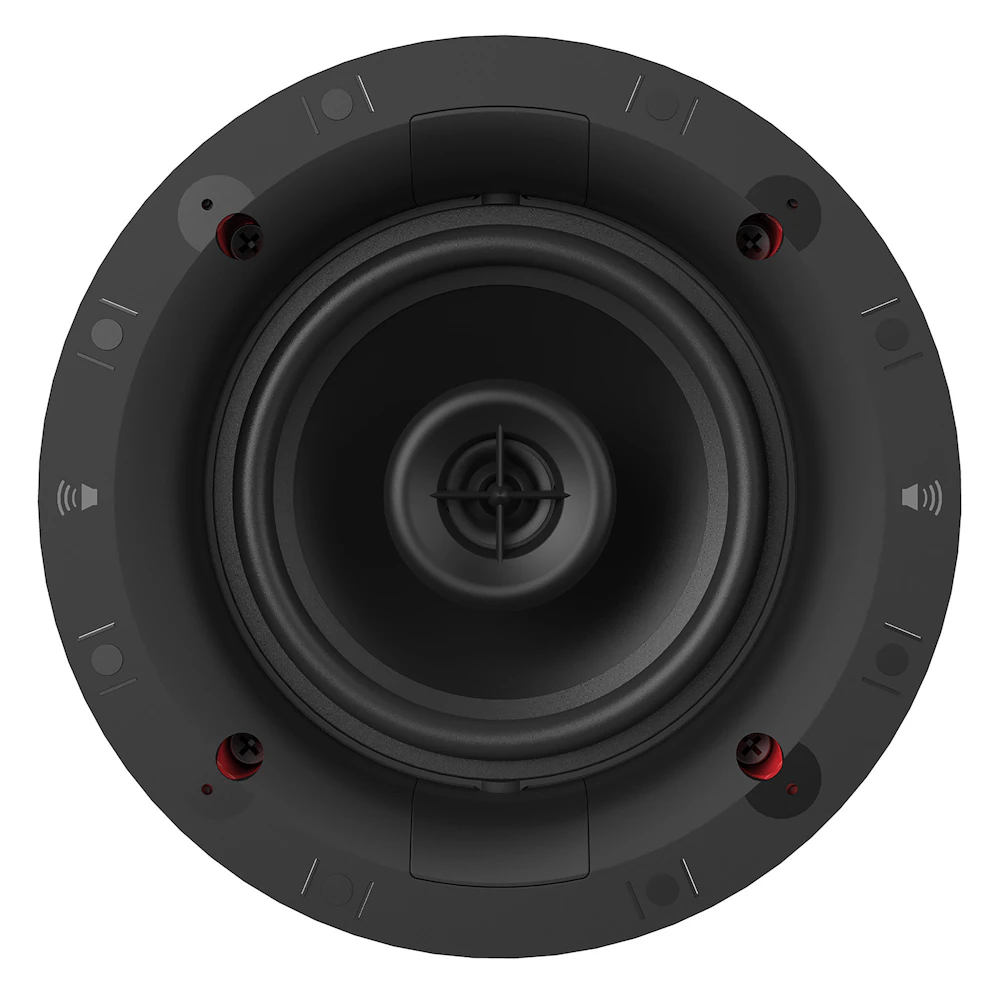

DS-160CDT
Featuring the Klipsch Signature Horn-Loaded performance at an incredible value, the DS-160CDT features a 6.5” Polypropylene woofer and a 1” Pivot Silk Dome tweeter mated to a round Tractrix® horn for dynamic acoustic performance. Utilizing the Sky Hook™ patented Cinch by Swarm Installation System, your install time is reduced by 75%.
SPECIFICATIONS
- Frequency Response : 77Hz – 20kHz +/- 3dB
- High Frequency Driver : 1″ (2.54cm) Silk Dome Tweeter mated to a round Tractrix® Horn
- Low Frequency Driver : 6.5” (16.51cm) Polypropylene Woofer
- Sensitivity : 91 dB @ 2.83V / 1m
- Coverage Angle : 100°
- Power Handling : 50W RMS/ 200W Peak
- Impedance : 8 Ohm Compatible
- Enclosure Type : ABS/Infinite Baffle
- Finish : Black Baffle/Frame, White Paintable Grille
- Product Dimensions : 9.2” W x 9.2” H x 4.5” D (23.3cm H x 23.3cm W x 11.3cm D)
- Mounting Depth : 4.34” (11.03cm)
- Cutout Dimensions : 8.3” (21.1cm)
- Product Weight : 7 lbs (3.18kg)

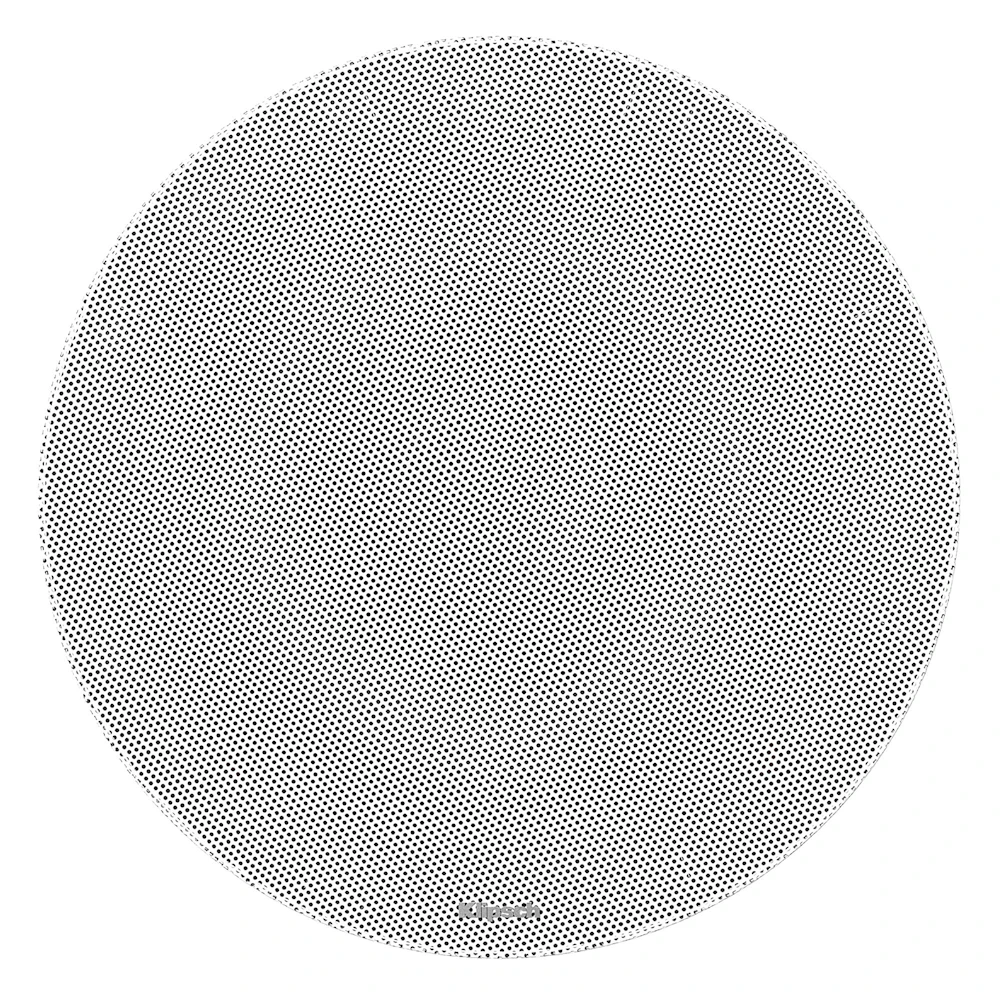

- Included : Round Magnetic Grille
- Installation Kit : IK-650-C II (Sold Separately)
- Fire Rated Enclosure : ME-650-C (Sold Separately)
- Built From : 2017
DOCUMENTS
Spec Sheet
For more technical detail, download the Spec Sheet here: DS 160 CDT Spec Sheet v06.
Product Manual
Download the Product Manual for DS-160CDT here: Designer Series Manual v02 1.
