CS-18C

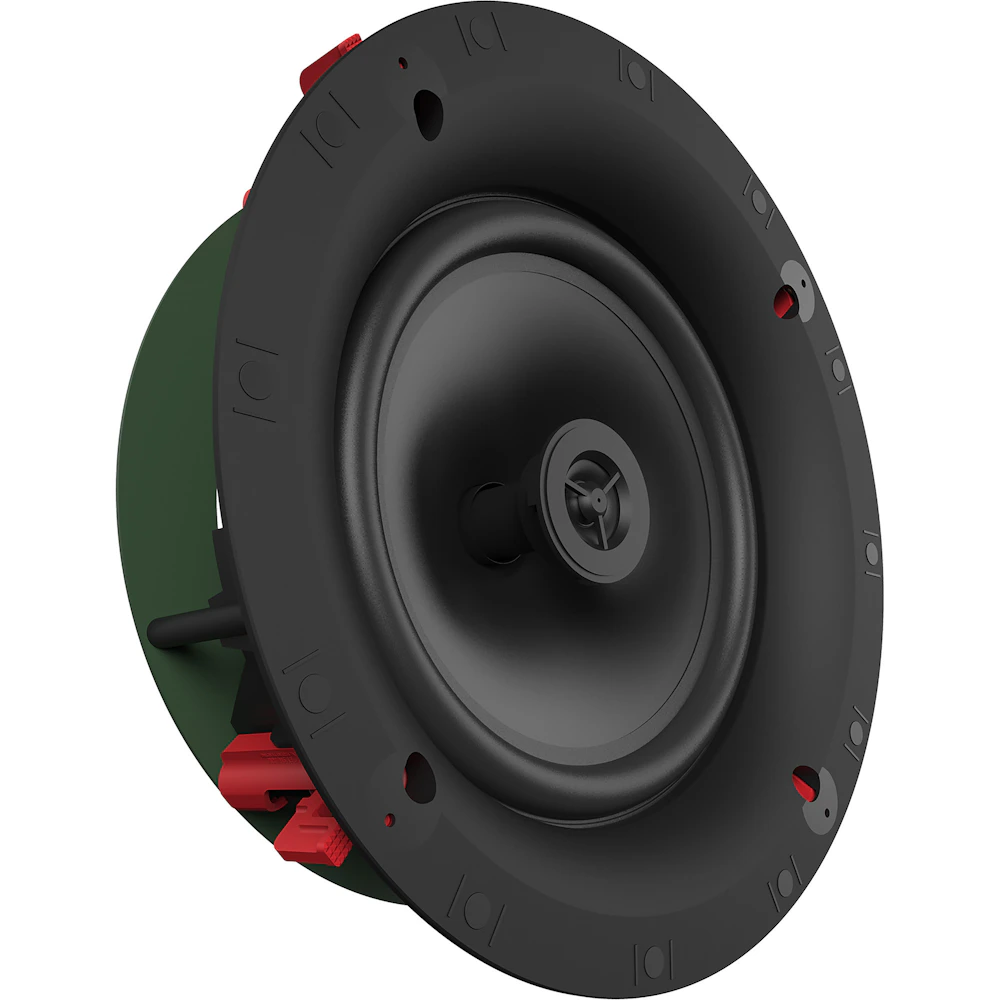

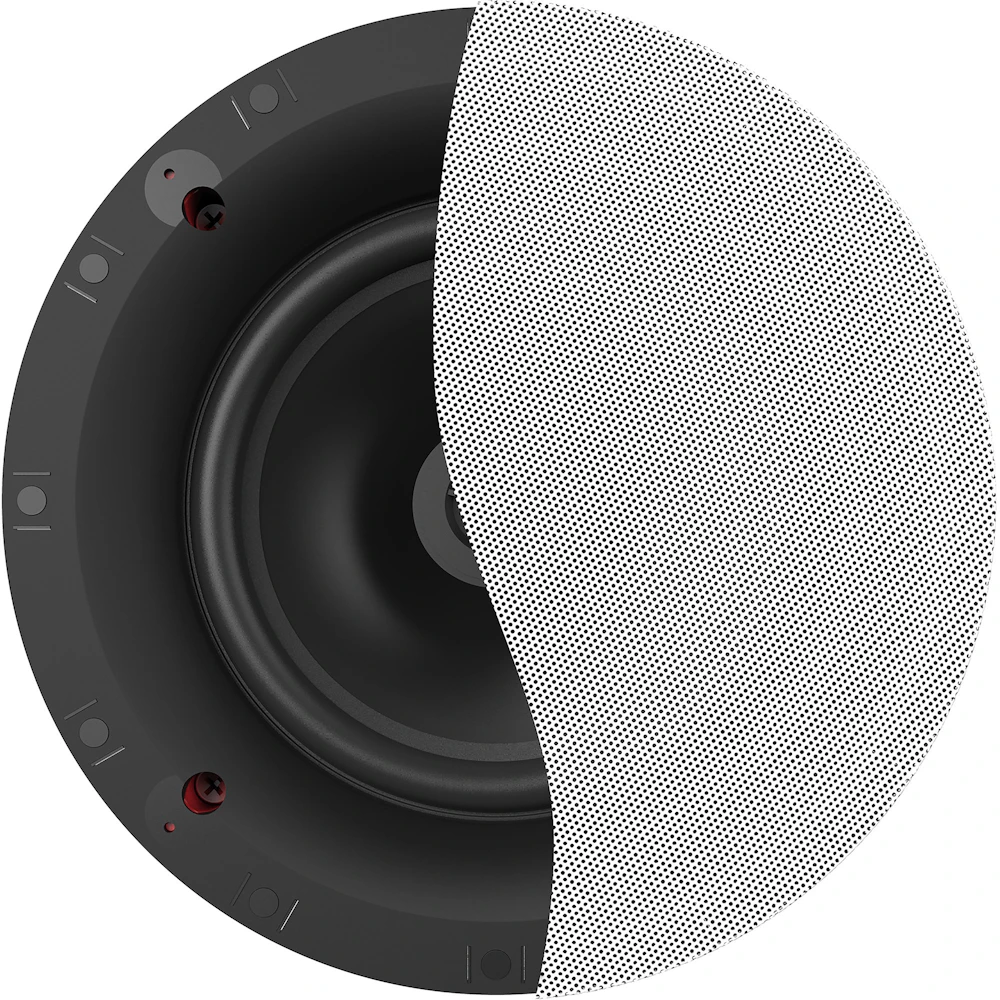

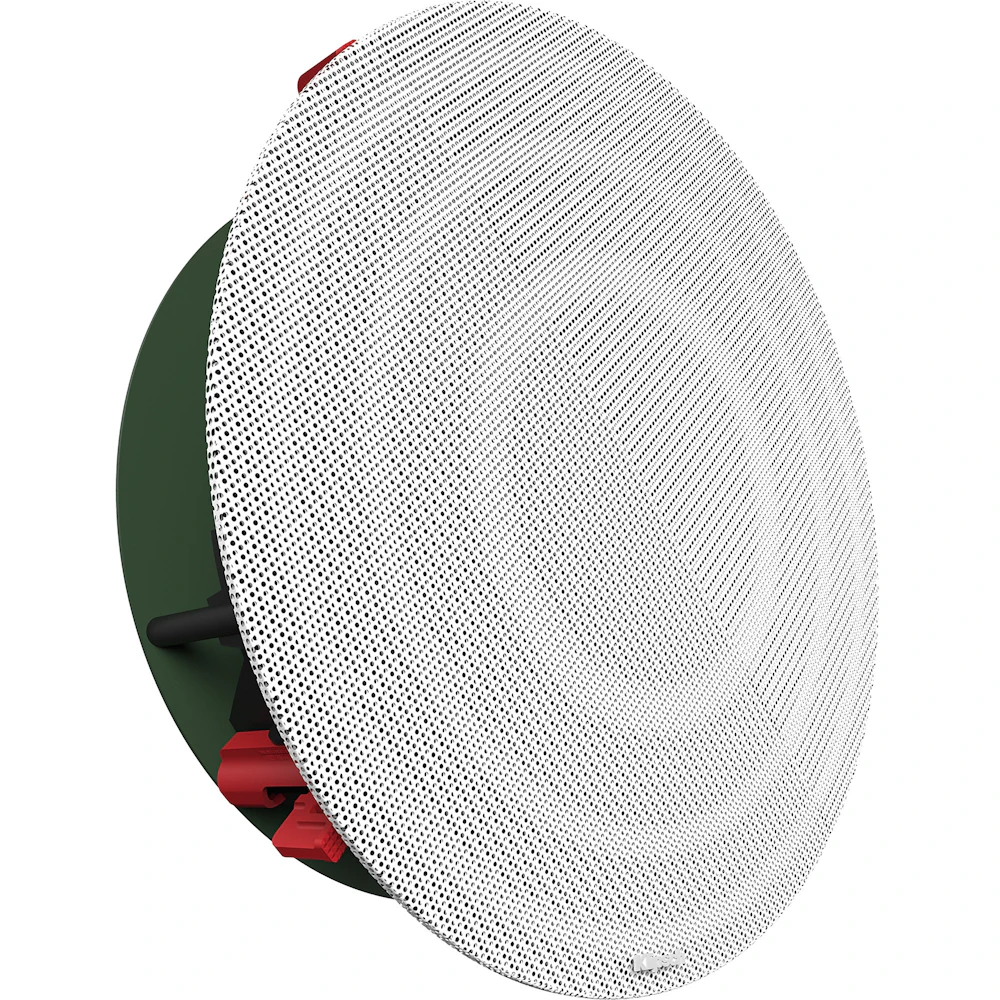

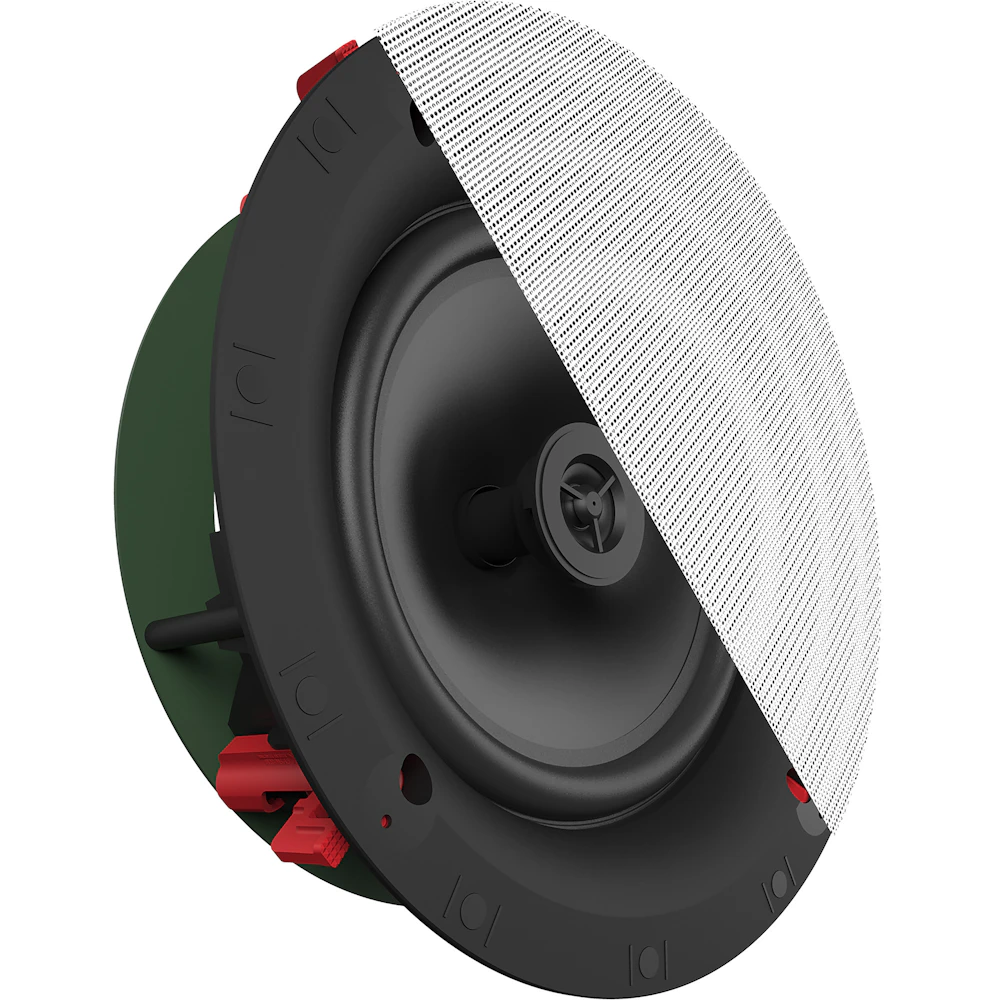

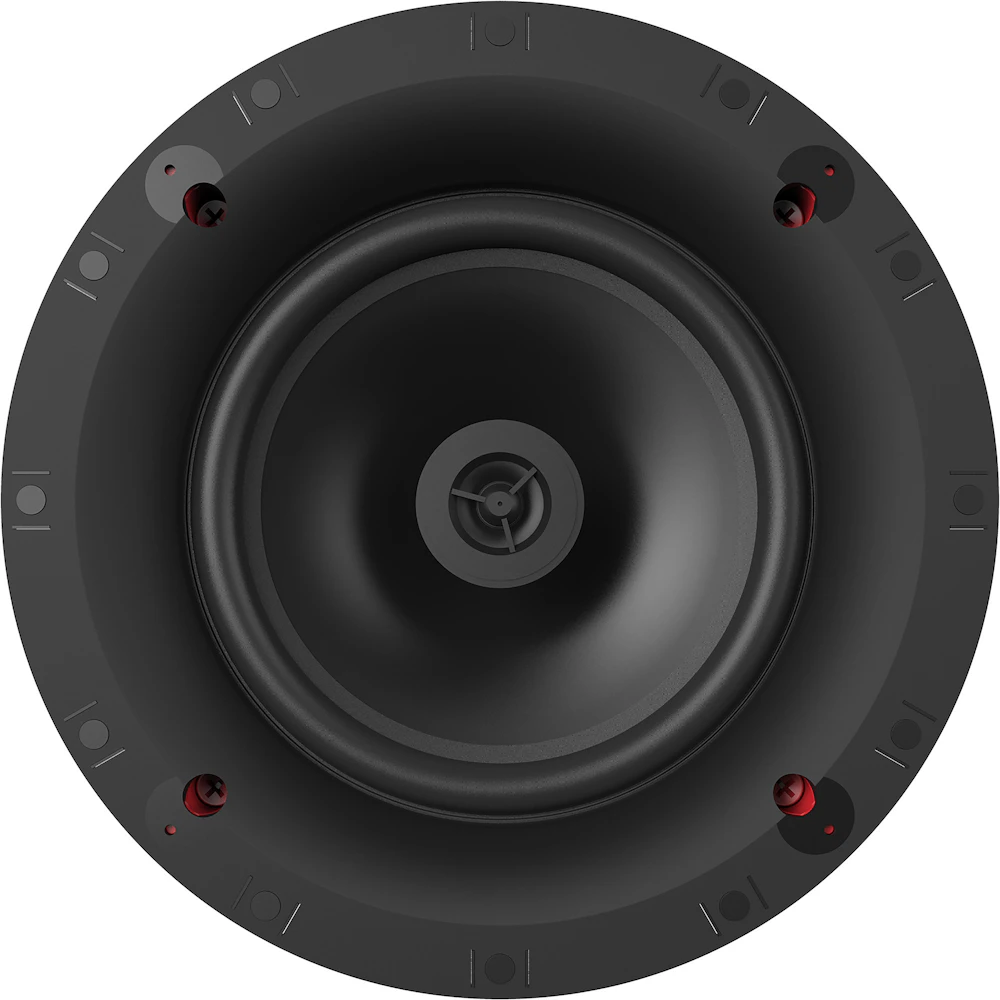

Using the same design principles of our premium architectural and box speaker lines, the Klipsch Custom series delivers true Klipsch sound to any budget. The CS-18C features an 8” Polymer woofer and a 1” Polymer tweeter. Utilizing the Sky Hook® patented Cinch by Swarm Installation System, your install time is reduced by 75%.
SPECIFICATIONS
- Frequency Range : 63Hz – 20kHz +/- 3dB
- High Frequency Driver : 1″ (1.9cm) Polymer Dome Tweeter
- Low Frequency Driver : 8″ (20.32cm) Polymer Woofer
- Sensitivity : 92 dB @ 2.83V / 1m
- Power Handling : 40W RMS / 160W PEAK
- Impedance : 8 Ohm Compatible
- Enclosure Type : ABS/Infinite Baffle

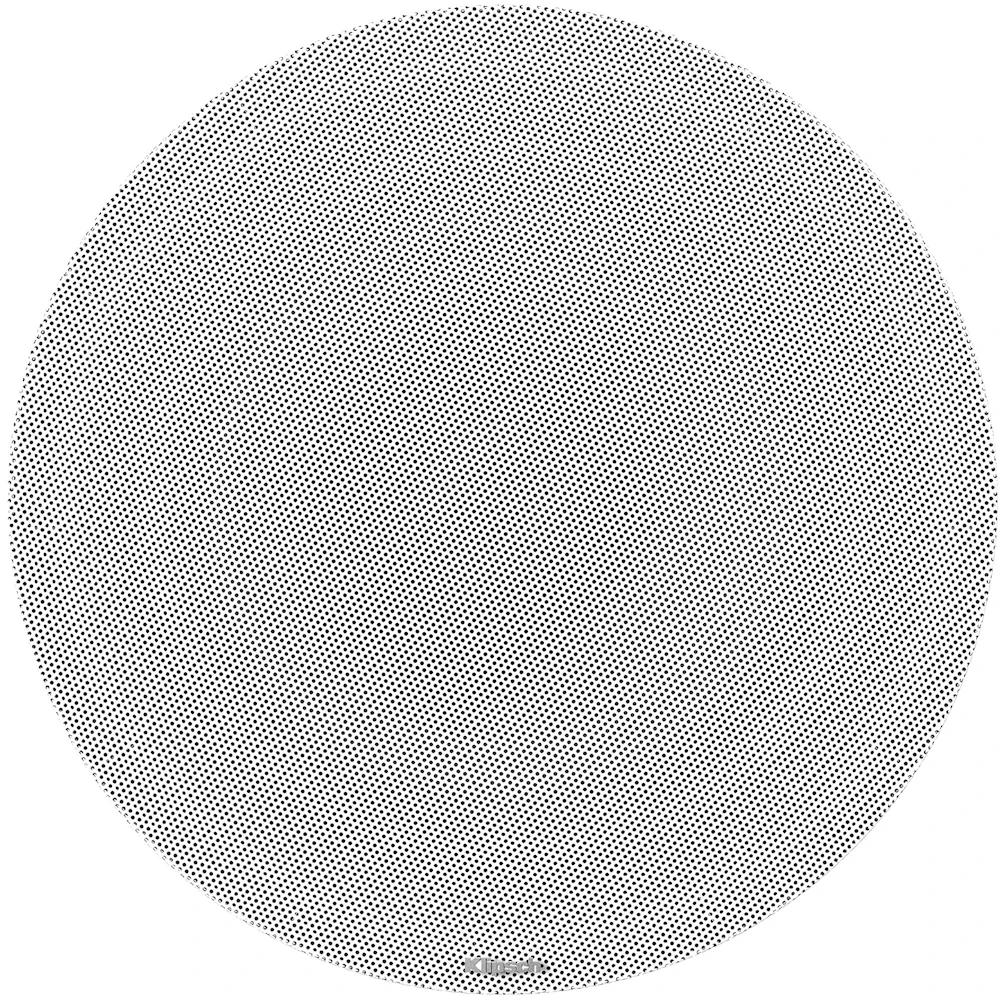

- Finish : Black Baffle/Frame, White Paintable Grille
- Product Dimensions : 10.75” W x 10.75” H x 4.5” D (27.3cm H x 27.3cm W x 11.5cm D)
- Mounting Depth : 4.45” (11.3cm)
- Cutout Dimensions : 9.8” (24.9cm)
- Product Weight : 7.4 lbs (3.36kg)
- Included : Flat Magnetic Grille
- Installation Kit : IK-800-C II (Sold Separately)
- Fire Rated Enclosure : ME-800-C (Sold Separately)
- Built From : 2017
DOCUMENTS
Spec Sheet
For more technical detail, download the Spec Sheet here: CS 18 C Spec Sheet v06.
Product Manual
Download the Product Manual for CS-18C here: Custom Series Manual v02 1.
