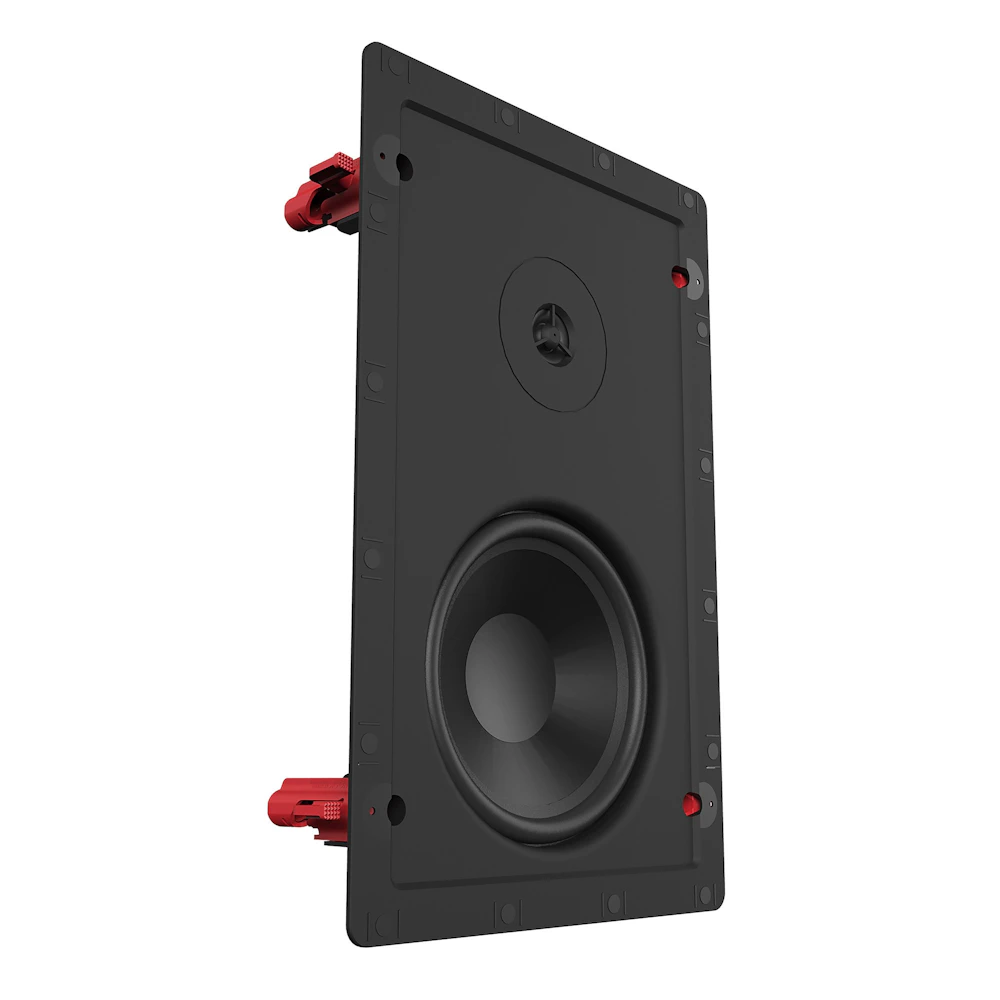

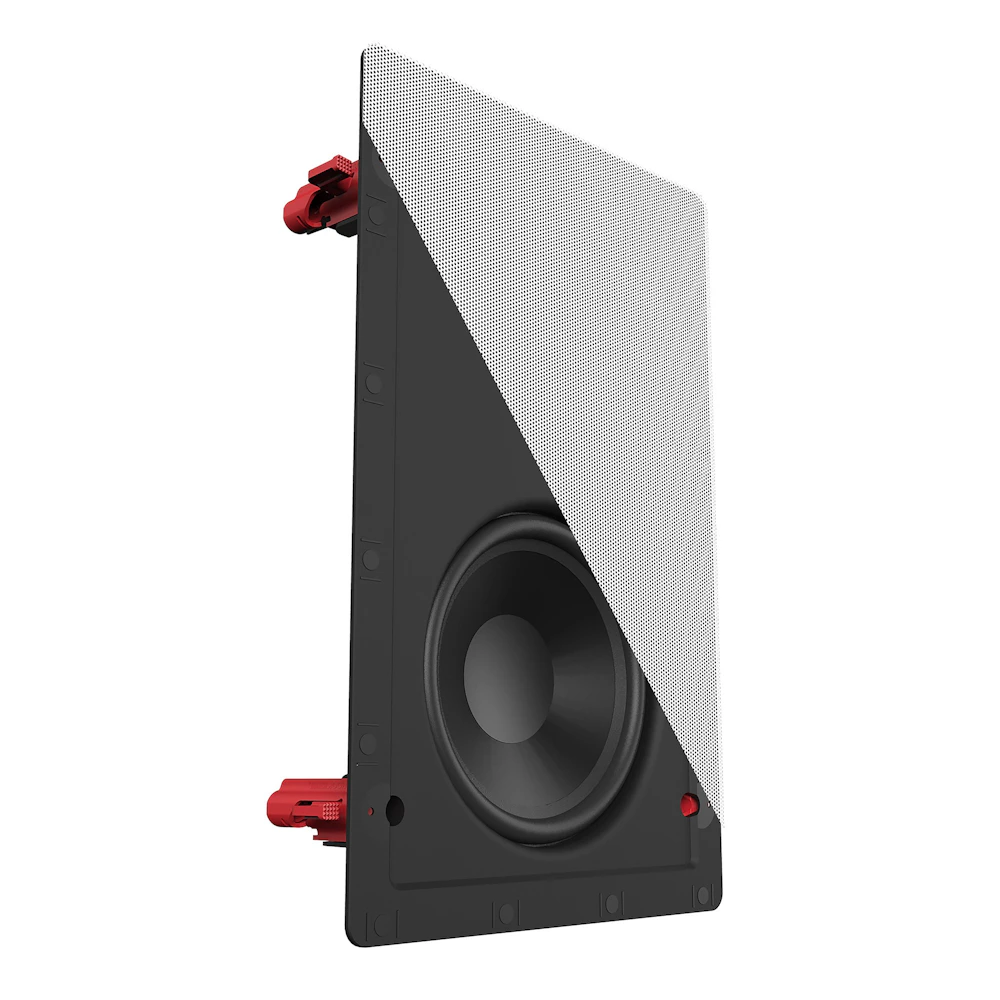

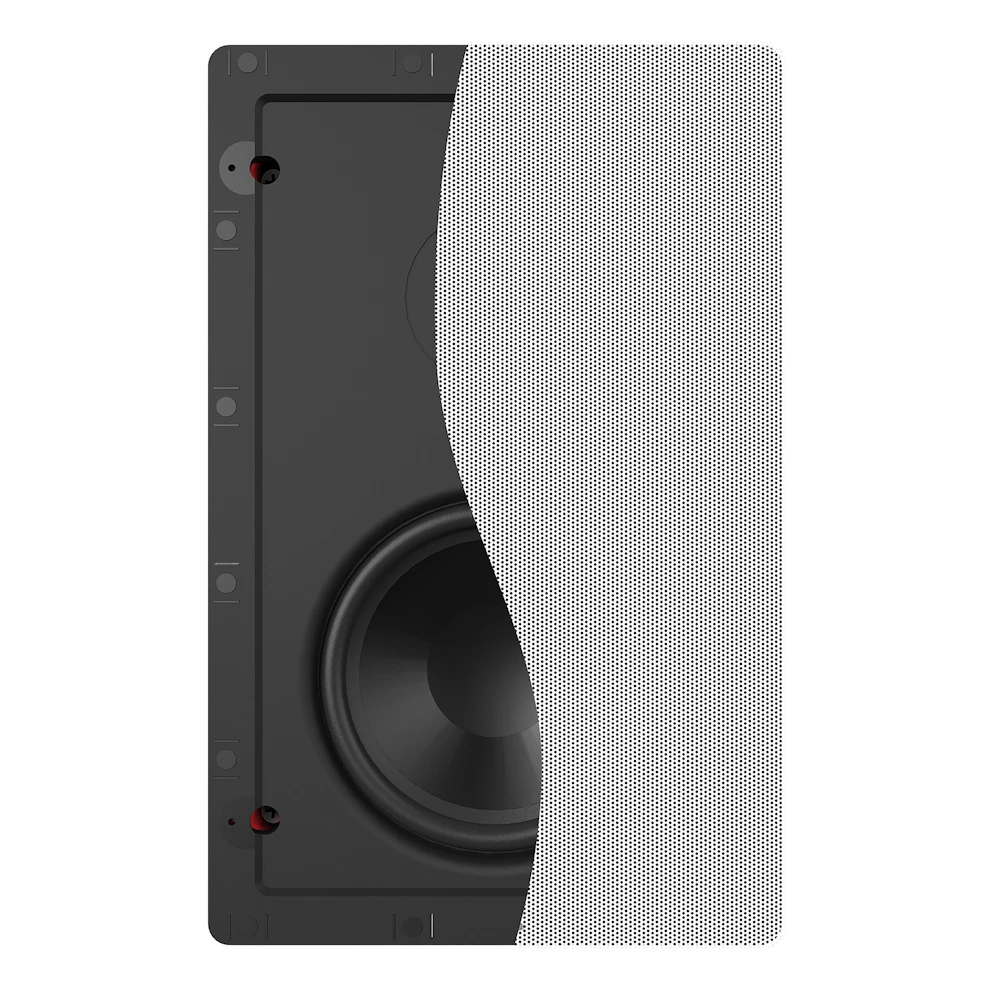

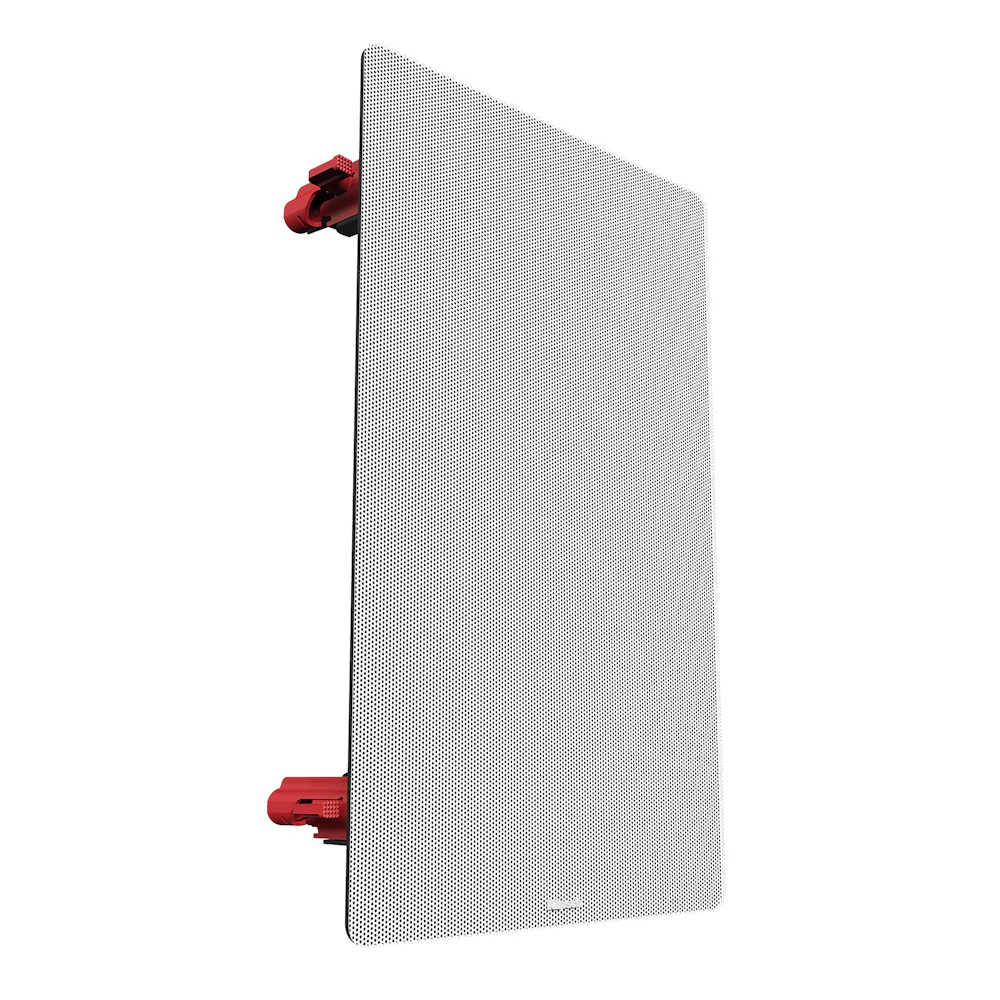

CS-16W
Using the same design principles of our premium architectural and box speaker lines, the Klipsch Custom series delivers true Klipsch sound to any budget. The CS-16W features a 6.5” Polymer woofer and a 1” Polymer tweeter. Utilizing the Sky Hook® patented Cinch by Swarm Installation System, your install time is reduced by 75%.
SPECIFICATIONS
- Frequency Range : 65Hz – 20kHz +/- 3dB
- High Frequency Driver : 1″ (2.54cm) Polymer Tweeter
- Low Frequency Driver : 6.5” (16.51cm) Polymer Woofer
- Sensitivity : 91 dB @ 2.83V / 1m
- Power Handling : 40W RMS / 160W RMS
- Impedance : 8 Ohm Compatible
- Enclosure Type : ABS/Infinite Baffle
- Finish : Black Baffle/Frame, White Paintable Grille
- Product Dimensions : 9.0” W x 14.1” H x 3.9” D (22.8cm H x 35.8cm W x 9.8cm D)
- Mounting Depth : 3.78” (9.6cm)
- Cutout Dimensions : 13” H X 8” W (33.0cm H X 20.3cm W)
- Product Weight : 7.2lbs (3.25kg)
- Included : Flat Paintable Magnetic Grille
- Installation Kit : IK-650-W II (Sold Separately)
- Fire Rated Enclosure : ME-650-W (Sold Separately)
- Built From : 2017
DOCUMENTS
Spec Sheet
For more technical detail, download the Spec Sheet here: CS 16 W Spec Sheet.
Product Manual
Download the Product Manual for CS-16W here: Custom Series Manual v02 1.
