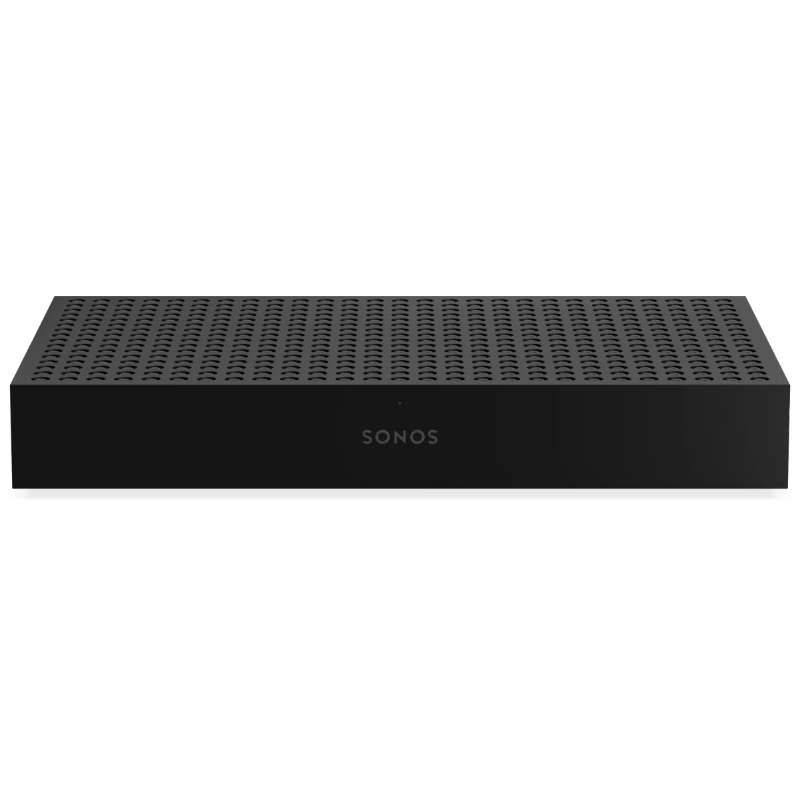

Sonos Amp Multi

• Dimensions (Single Unit): Height: 64.5 mm, Width: 436.8 mm, Depth: 265.2 mm
• Dimensions (with 2U Rack Mount): Height: 82.3 mm, Width: 483 mm, Depth: 265.2 mm
• Weight: 5.06 kg
• Colours: Black
• Finish: Matte
• LEDs: Front: Device status / Rear: Device status, output status (x8), RJ45 status light

• Power Consumption: 5.4 W (idle), 180 W (all channels driven at 1/8 output power, 8 Ohms)
• Power: Auto-switching 100-240V 50/60Hz 10A AC universal input
• Wired Networking Interface: 100BaseTX, Ethernet RJ45
• Wireless Networking Interface: Compatible with WiFi 6. Connect to Wi-Fi with any 802.11a/b/g/n/ac/ax 2.4 GHz/5 GHz broadcast-capable router
• Analogue Audio Input: 2 x RCA inputs -10dB (stereo into one zone)
• USB-C Analogue Audio Input: 44.1 kHz / 16 bit (stereo into any zone) – Requires Sonos Line-In Adapter
• Subwoofer Connections: 1 x RCA output -10dB (configurable to output from one zone), and 1x Sonos Sub per zone
• Direct Streaming Formats: Apple AirPlay 2, Spotify Direct Control
• CPU: Quad Core 4xA55 1.9GHz

• Sonos Amp Multi
• Power Cable: Length: 6 ft (2 m)
• Sonos Banana Plugs: Set of eight (8)
• Documentation: Quickstart Guide and legal/warranty information

• Speakers: Passive speakers required for audio output
• Internet Connection: Ethernet connection or WiFi – Ethernet needs Category 5 (CAT5) cable or higher
• Power Source: Nearby electrical outlet
• Sonos app: The latest generation of the Sonos app running on a compatible device

• Amp Multi 2D CAD Drawings
• Amp Multi Solution Guide
• Amp Multi Sell Sheet
• Amp Multi Spec Sheet
• Residential Solution Guide

What is the warranty length for Amp Multi?
Amp Multi comes with a 3-year warranty, giving you peace of mind and reliable coverage.

Is the 125 W per channel rating peak power or continuous?
Amp Multi delivers 125 watts of continuous (RMS) average power per channel into an 8-ohm load, with all channels driven.

What is the damping factor of Amp Multi?
The damping factor is approximately 437 when paired with an 8-ohm speaker.

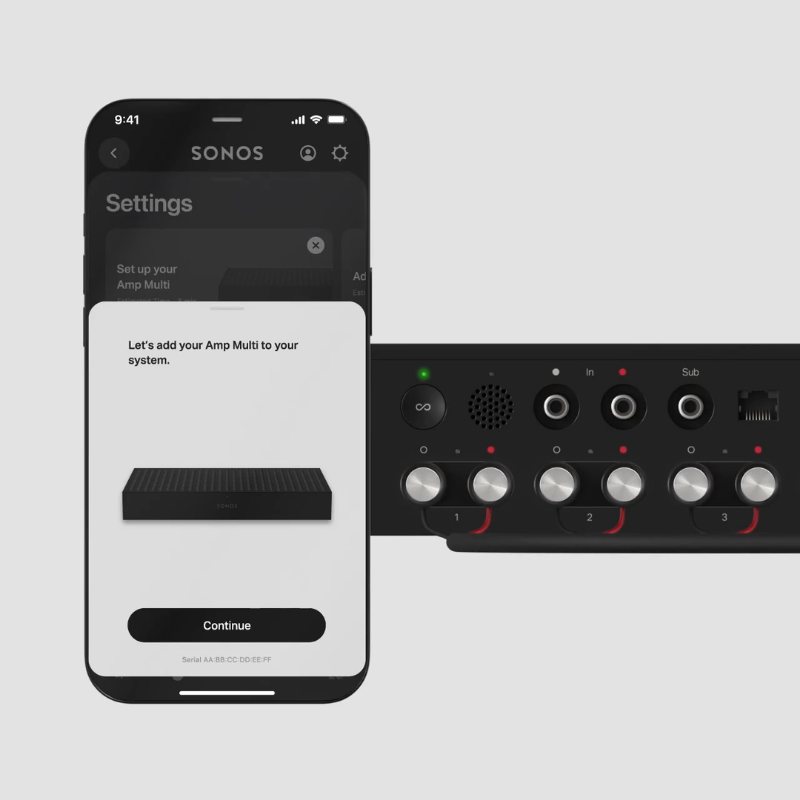

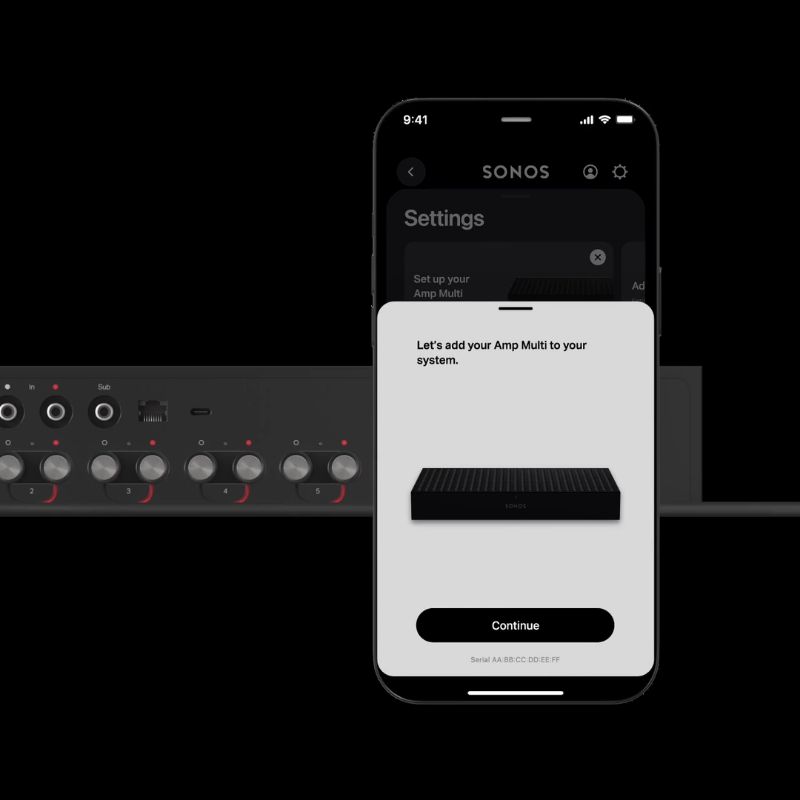

What if I’m in a noisy environment and my device can’t hear the setup chirp?

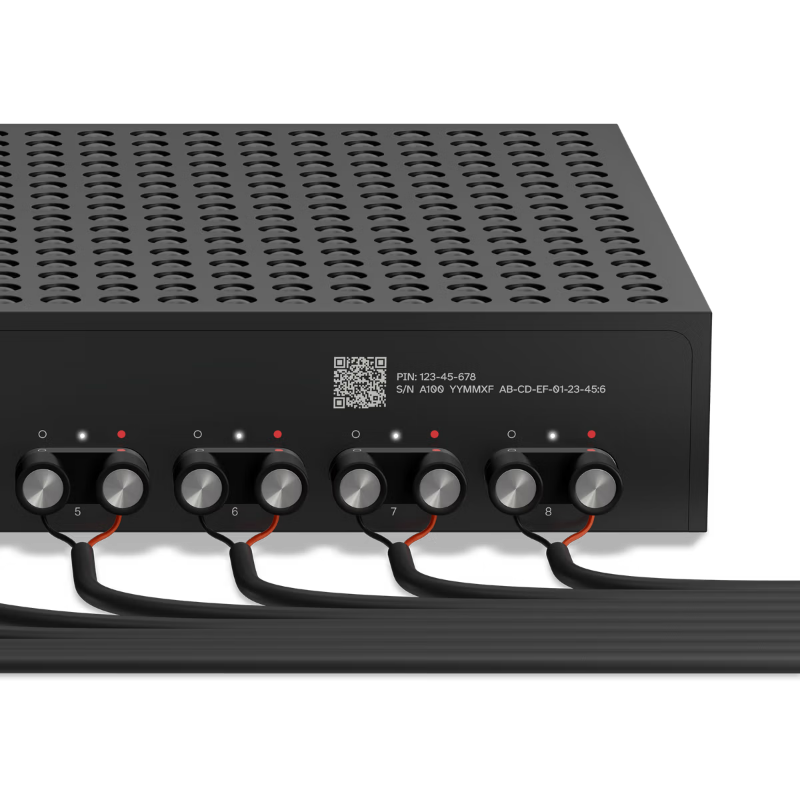

If the chirp is not detected, you can enter the PIN printed on the back of the unit directly in the Sonos app.

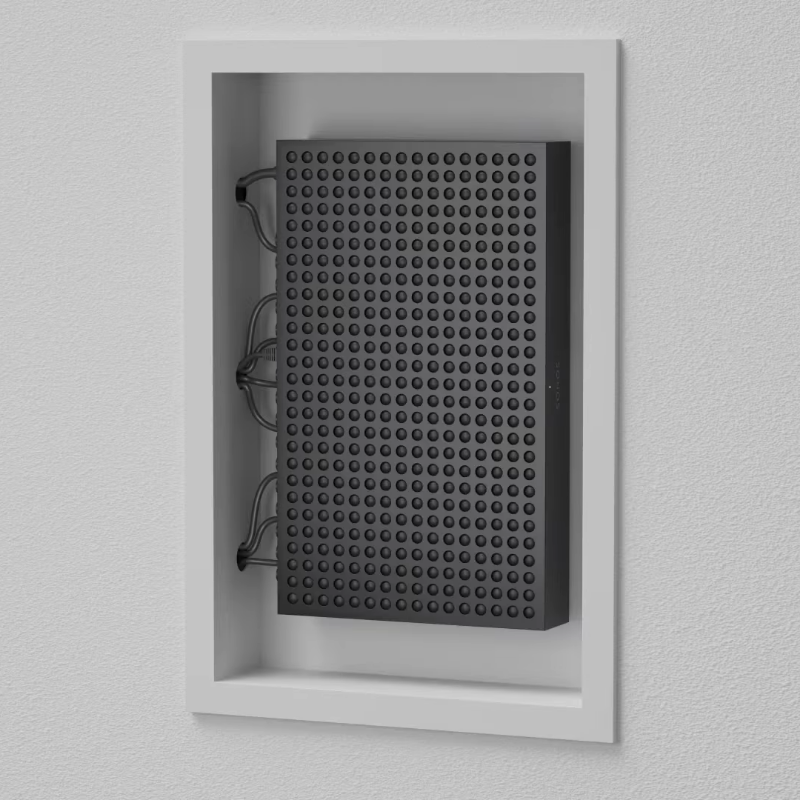

How much clearance does Amp Multi need for airflow if it’s not rack-mounted?
We recommend allowing at least four inches (10 centimetres) of space on the top and sides for proper ventilation.

Does Amp Multi support Trueplay?

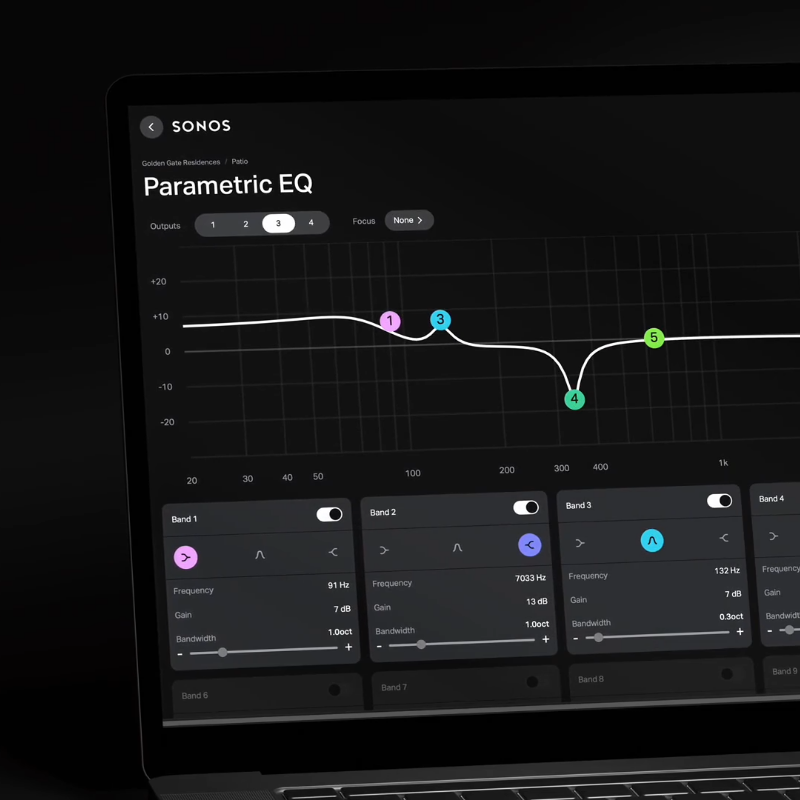

No, Amp Multi introduces ProTune—a manual tuning feature that lets you fine-tune the sound for any low-impedance passive speaker and room. When used with Sonos Architectural speakers, enabling Optimise Sonos Speakers applies custom tuning and DSP tailored to their unique acoustic design.

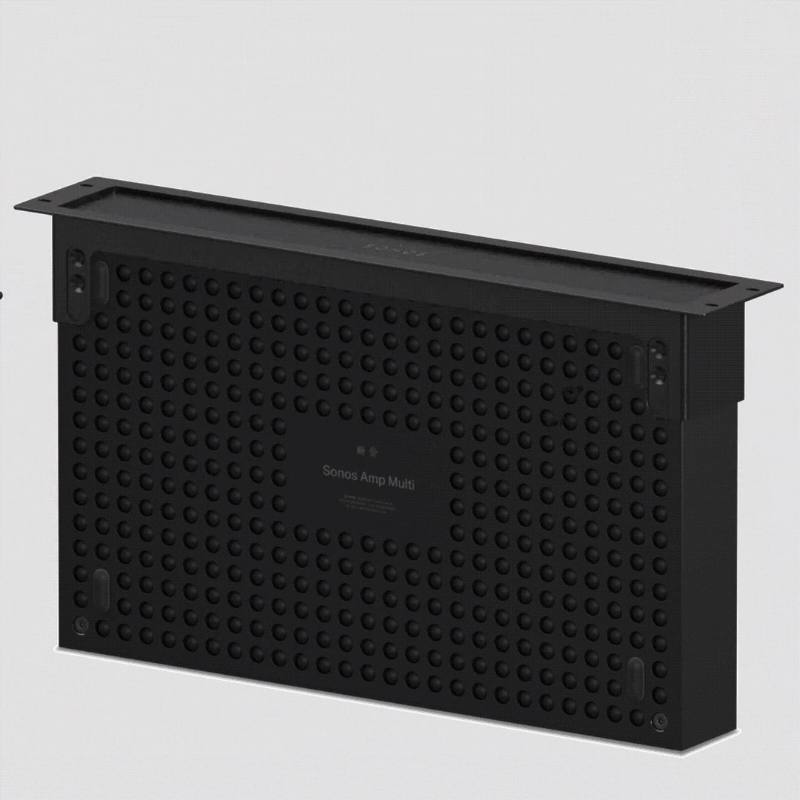

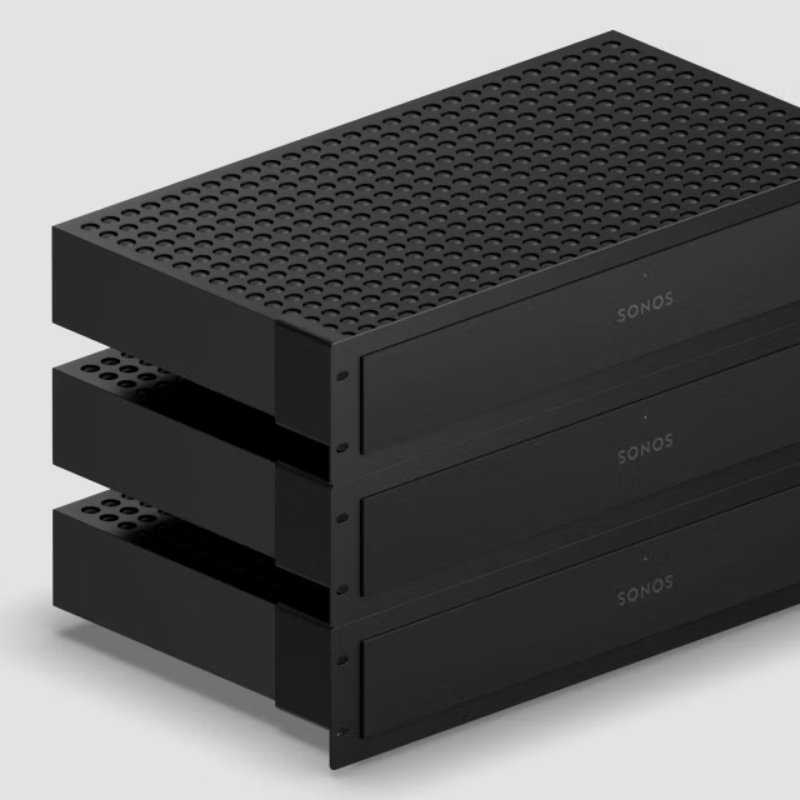

Why is Amp Multi 1.5U in height, and how does that fit in a rack?
Amp Multi shares the same 1.5U height as Sonos Amp, ensuring consistency when mixing device types. The Rack Mount (sold separately) adds an extra 0.25U of space above and below the unit—for a total height of 2U—for optimal airflow and easier access without wasting rack space.

How do I assign the subwoofer output to a specific zone?

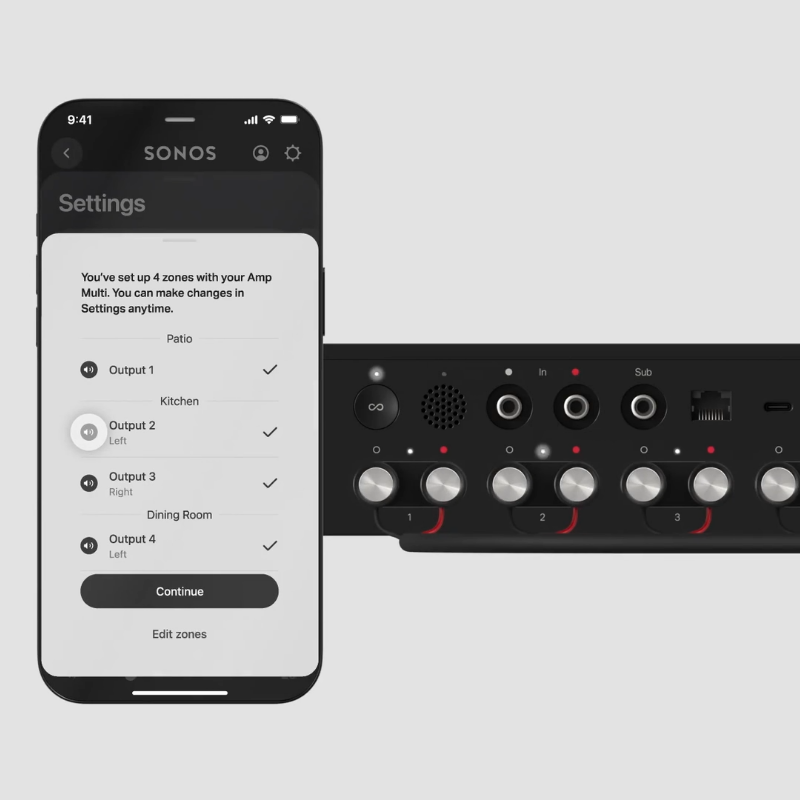

In the Sonos app, go to Zone Settings, select Connect Sub, and follow the instructions to assign the subwoofer output to the desired zone.

How many subwoofers can Amp Multi support?
Amp Multi supports Sonos Sub 4, Sub (Gen 3), and Sub Mini. You can assign one Sonos Sub per zone, up to four total. The subwoofer output port supports a powered third-party sub, which can be freely assigned to any zone in the app.

Why doesn’t Amp Multi include HDMI like Sonos Amp?
Amp Multi is purpose-built for bespoke, distributed audio applications. If you need HDMI connectivity for TV or home theatre setups, Sonos Amp or a Sonos soundbar is the best fit, with both offering the ability to work seamlessly alongside Amp Multi in the same system.

Is Bluetooth® supported?
No, Amp Multi does not include Bluetooth connectivity.
